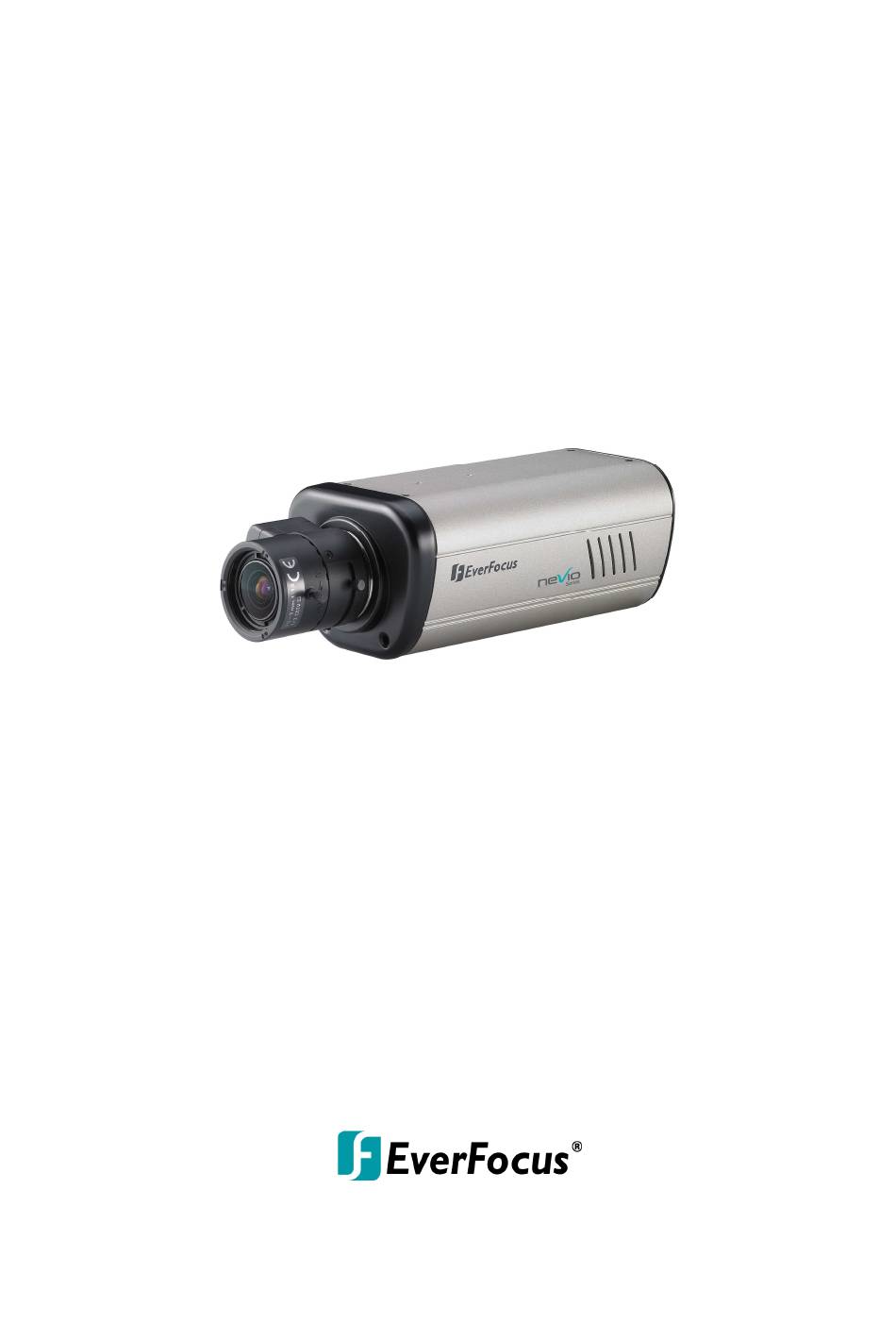

- Page 1 EAN800A/EAN800AW User’s Manual Copyright © EverFocus Electronics Corp, Release: Jan. 2009 Rev.A...
- Page 2 - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this equipment, not expressly approved by EverFocus or parties authorized by EverFocus could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the...
- Page 3 EAN800A/EAN800AW EAN800A/EAN800AW complies with CE and FCC. About this document All the safety and operating instructions should be read and followed before the unit is operated. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products.
- Page 4 Sun Microsystems, Inc. in the United States and other countries. Support If the unit ever needs repair service, the customer should contact the nearest EverFocus Electronics Corp. Service Center for return authorization and shipping instruction. About AC Adaptor...
-
Page 5: Table Of Contents
EAN800A/EAN800AW TABLE OF CONTENTS 1. INTRODUCTION....................6 2. FEATURES ......................6 3. ACCESSING THE CAMERA MENU ..............7 4. SETTING........................10 4.1 S ......................10 YSTEM 4.1.1 Information ....................10 4.1.2 Log ......................11 4.2 U ......................12 ONFIG 4.3 N ......................14 ETWORK 4.3.1 Network.......................14 4.3.2 DDNS......................16 4.3.3 Bandwidth ....................17 4.3.4 SMTP/FTP ....................18 4.3.5 Network Alarm (reserved for PowerCon)...........20... -
Page 6: Introduction

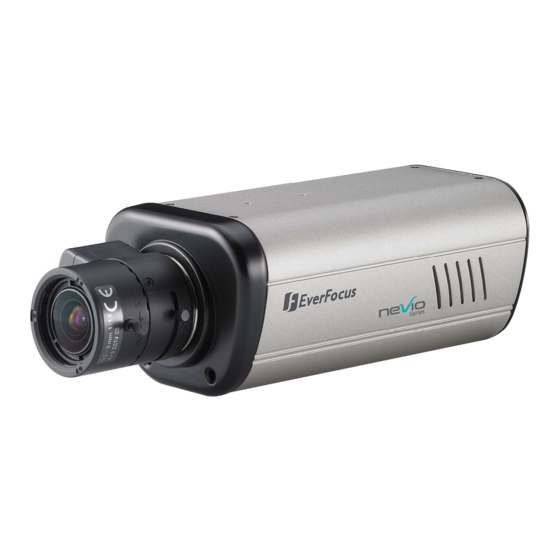

EAN800A/EAN800AW 1. INTRODUCTION The EAN800A/EAN800AW network camera provides H.264, MPEG-4 and MJPEG compression for multi-streaming capabilities. H.264 is the most advanced video compression technology that saves your bandwidth without sacrificing video quality. Designed with advanced digital processing circuitry for high resolution 1/3'' color CCD sensor, it can control AGC, BLC, FL, ES, H-Mirror, IRIS Level and Day/Night function through web browser. -
Page 7: Accessing The Camera Menu
EAN800A/EAN800AW 3. ACCESSING THE CAMERA MENU Step 1.Start an Internet Explorer browser. Step 2. Enter the IP address or host name of the camera in the Location/Address field of your Internet Explorer browser. (Please refer to EAN800A/EAN800AW Installation Guide for how to find the IP address) Step 3. - Page 8 EAN800A/EAN800AW 1. Press button to display the "Live" page. Double click on the image to show a full screen display, double click again or press ESC to return normal display. 2. Press button to enter Setting page. In Setting page, there are 8 sections: [System Info], [User Config], [Network], [Video], [Audio], [User], [Event] and [System].
- Page 9 EAN800A/EAN800AW Note: Record segment is limited to 1 min. If you need to do long time recording, please set schedule recording. For more details about schedule recording, please see “4.7 Event”. 8. Snapshot Snapshot button saves a snapshot of the video image currently being displayed.
-
Page 10: Setting
EAN800A/EAN800AW 4. SETTING Click this button to display the setup menu. 4.1 System Info System information and system log check of the setup menu can be performed on this page. The “System Info” page has 2 tabs: [Information] tab and the [Log] tab. 4.1.1 Information System Information: Firmware version, MAC address, Video Type, Model number. -
Page 11: Log
EAN800A/EAN800AW 4.1.2 Log System Log: Date/Time: displaying date and time of the log. Log message: all information and event message, including login, user’s IP, reboot, firmware upgrade, load factory default, configuration reset and event detected. System will keep the newest 256 records. -
Page 12: User Config
EAN800A/EAN800AW Press button to export system log into “.txt” file and select the location where the exported log file will be saved to. 4.2 User Config Live view configuration is to be set by user. Each login user can make his/her own settings for the following items: Text Setting Check the box for text of Machine name, Date/Time or Frame Rate to be... - Page 13 EAN800A/EAN800AW Date/Time Format Used in Text Select Date/Time Format from the following options: Time Format: 24 Hours or 12 Hours. Press Apply to apply the setting changes or Reset to reset without saving the change. Recording/Snapshot Export Setting Enable Event Recording to PC: Allow event video recorded to users' PC if any events have been set to record to PC.
-
Page 14: Network
EAN800A/EAN800AW press the Browse button to locate the new language file (.evb) and then click the Load button. Note: Upload a new language file will reboot system automatically. Please reconnect IP camera after reboot. Press Apply to apply the setting changes or Reset to reset without saving the change. - Page 15 EAN800A/EAN800AW • IP Type • IP address • Subnet mask • Gateway (when using the gateway server/router) • Primary DNS, Secondary DNS (when using DNS) IP Type DHCP: Configure the DHCP server not to assign the same IP addresses used for the other network cameras and PCs whose IP address is unique.
-
Page 16: Ddns
EAN800A/EAN800AW Username Enter User name of the account (used only for PPPoE). Password Enter Password of the account (used only for PPPoE). Press Apply to apply the setting changes or Reset to reset without saving the change. 4.3.2 DDNS DDNS setting When accessing the camera via the Internet from the network environment of which the global IP address is obtained using DHCP, the DDNS function is necessary. -
Page 17: Bandwidth
EAN800A/EAN800AW Enable: Check the box to enable DDNS setting. Service ISP: If you choose EverFocus DDNS server, you can obtain a free account name from EverFocus ”www.everfocusddns.com”. Enter an IP Cam Account Name: .everfocusddns.com Press button to register or update DDNS account. -
Page 18: Smtp/Ftp
EAN800A/EAN800AW Max. Client Limit: enter a value here to restrict the number of clients accessing the camera. This is useful if you need to save on bandwidth. Up to 32 clients is allowed to see live video simultaneously. Subsequent viewers will see a blank image. - Page 19 EAN800A/EAN800AW User name: Input the login user ID if the SMTP server requires Authentication. Password: Input the password if the SMTP server requires authentication. Receiver Address: Input the e-mail address for receiving e-mail message when the EVENT is enabled and triggered. Please use “;” to separate address. Sender Address: Input sender’s e-mail address, so that receiver can recognize the sender when an event message is sent out.
-
Page 20: Network Alarm (Reserved For Powercon)
EAN800A/EAN800AW 4.3.5 Network Alarm (reserved for PowerCon) Set Network Alarm This function is reserved for PowerCon software, for the detail setting please refer to PowerCon network alarm protocol. -
Page 21: Wireless (Ean800Aw)
EAN800A/EAN800AW 4.3.6 Wireless (EAN800AW) Wireless Setting Enable: Check the box to enable wireless connection. SSID: Name of the wireless network the camera. The field accepts up to 32 alphanumeric characters. The name must be exactly the same as the used in the wireless access point or the connection will not be established. -
Page 22: Video
EAN800A/EAN800AW WPA (Wi-Fi Protected Access) key should follow either one of the following rules: - As 64 hexadecimal (0-9, A-F) characters. - As 8 to 63 ASCII characters. WEP (Wired Equivalent Protection) key should follow either one of the following rules: - As 5 characters for 64-bit WEP and 13 characters for 128-bit WEP. - Page 23 EAN800A/EAN800AW Stream Setting The system can output 4 video streams simultaneously. For each of them, user can set compression format, resolution, quality and frame rate individually. Stream 1 is always enabled for live view. Check “Enable” box to enable other streams. Format: Select encode format from H.264, MPEG4 and MJPEG.
-
Page 24: Camera
EAN800A/EAN800AW 4.4.2 Camera Image setting Hue: to increase or decrease hue of video images. It is adjustable from 0~255. Contrast: to increase or decrease object contrast of images. It is adjustable from 0~255. Saturation: to increase or decrease color saturation of video images. It is adjustable from 0~255. - Page 25 EAN800A/EAN800AW BLC: Select ON or OFF for Backlight Compensation. ON: When the background of the subject is very bright and the subject itself is dark, set the BLC ON. The BLC will measure the light of the image center and the lens iris will automatically set for optimum image quality.
-
Page 26: Audio
EAN800A/EAN800AW 4.5 Audio The EAN800A/EAN800AW camera can transmit audio to other clients using a built-in microphone or connecting to external microphone to play audio received from other clients via connected speakers. This section describes how to configure the basic audio settings. Audio Check Enable Audio box to enable audio function. -
Page 27: User
EAN800A/EAN800AW 4.6 USER User Information Maximum 10 users can be set for using the IP camera. The user information displays the authorized users and access levels: • Supervisor/Administrator –a supervisor/administrator has unrestricted access to the Setting menu and can determine the registration of all other users. However, administrator is not allowed to change supervisor’s account and password. -
Page 28: Event
EAN800A/EAN800AW 4.7 EVENT An event in the camera is when an Event Type is activated and causes certain actions to be performed. The event type is the set of conditions that specifies how and when which actions will be performed. This table describes how to setup action types and event type. - Page 29 EAN800A/EAN800AW Press button to add an event condition. To modify the event list, click on the event and it will be highlighted. Press button to modify the setting. To remove an event from event list, click on the event and it will be highlighted. Press button to remove the event.
- Page 30 EAN800A/EAN800AW This example describes how to set the camera to upload images to FTP when someone press Manual trigger button: 1. Click button in Event page. 2. Enter an event name for the event, e.g. Event 1 3. Select “Manual Trigger” as event type. 4.
-
Page 31: Motion
EAN800A/EAN800AW 4.7.2 Motion Motion Detection User can define the motion area to be detected by left clicking the mouse to draw lines. Every click is an end point of the line. When the detection area is formed, double click the mouse to have all the lines connected. To remove the selection, simply right click the mouse, the selected polygon will be deleted. -
Page 32: Alarm
EAN800A/EAN800AW 1 (low), 2, 3, 4, 5, 6, 7, 8, 9 to 10 (high). 4.7.3 Alarm Alarm Output Setting Contact Type: Normal Close, Normal Open Duration Time: Select duration time of alarm output from 5 sec, 10 sec, 20 sec, 30 sec, 60 sec, 2 min, 3 min and 5 min. -
Page 33: Time Mask
EAN800A/EAN800AW change. Re-trigger Filter Setting Re-trigger Filter: Set a re-trigger filter time, if another event is triggered during this time, this triggered event will be ignored. Press Apply to apply the setting changes or Reset to reset without saving the change. -
Page 34: System
EAN800A/EAN800AW An example on how to set weekend as time mask is as follows: Click from time mask setting. Enter Mask name, e.g. Weekend. Check “Sun” & “Sat” boxes. Select “Start time” and “End time” or “Full day”. Press Apply to apply the setting changes or Reset to reset without saving the change. - Page 35 EAN800A/EAN800AW Machine Name Setting Machine Name: Enter the name of the camera. The entered name will be displayed in the status display area. Press Apply to apply the setting changes or Reset to reset without saving the change. Set Time Zone Time Zone: Select a time zone according to the location where the camera is in use.
-
Page 36: Daylight Saving
EAN800A/EAN800AW Press Apply to apply the setting changes or Reset to reset without saving the change. 4.8.2 Daylight Saving Set Daylight Saving Check Enable Daylight Saving checkbox to enable daylight saving. Set the start time to daylight saving time. Set the start week of daylight saving time: 1 / Last Set the start date of daylight saving time: Sunday / Monday / Tuesday / Wednesday / Thursday / Friday / Saturday... -
Page 37: Sd Card
EAN800A/EAN800AW Set the end month of daylight saving time: January / February / March / April / May / June / July / August / September / October / November / December. Set the ending time change of daylight saving time: Choose the “From” time and “End”... - Page 38 EAN800A/EAN800AW Event Recording: FTP backup only: Event video will record to SD card when network is disconnected. Normal: Follow the event actions settings you have made in “Event” menu to record event video to SD card. Overwrite: Select ON for overwriting data when SD card memory is full. Select OFF for not overwriting SD card data.
-
Page 39: Maintenance
EAN800A/EAN800AW Note: - It is impossible to access the SD memory card in the process of formatting. - All data saved on the SD memory card will be deleted when the SD memory card is formatted. - Do not turn the power of the camera off in the process of formatting 4.8.4 Maintenance Maintenance Server Reboot: The unit is rebooted without changing any of the settings. - Page 40 EAN800A/EAN800AW Save/Load Configuration Server To take a backup of all of the configurations, press Save to save all configurations to a config. file. If necessary, it is then possible to return to the previous settings if the settings are changed and there is unexpected behavior. Press the Browse button to locate the saved config.
-
Page 41: Specifications
EAN800A/EAN800AW 5. SPECIFICATIONS CAMERA Pickup Device 1/3" Sony Super HAD Interlaced CCD Pixel Effective NTSC: 768 (H) x 494 (V); PAL: 752 (H) x 582 (V) Sensitivity 0.4 Lux / F=1.2 Day & Night Lens Optional C/CS mount, manual / DD control supported Video Output BNC socket, composite 1 V p-p / 75 Video Output Resolution... - Page 42 EAN800A/EAN800AW Power Supply 12 VDC & PoE Power cord with 5.5 mm cable socket, 5.5 mm adapter cable 20 cm included in package Power Over Ethernet Yes (PoE 802.3af) Power Consumption 5W max. (12VDC) PHYSICAL Weight 500 g ; 1.102 LBS Dimensions 68 (W) x 57 (H) x 136 (D) mm / 2.7"...
- Page 43 2-6 Nakase.Mihama-ku. www.everfocus.com Chiba city 261-7118, Japan TEL: 81-43-212-8188 FAX: 81-43-297-0081 www.everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
