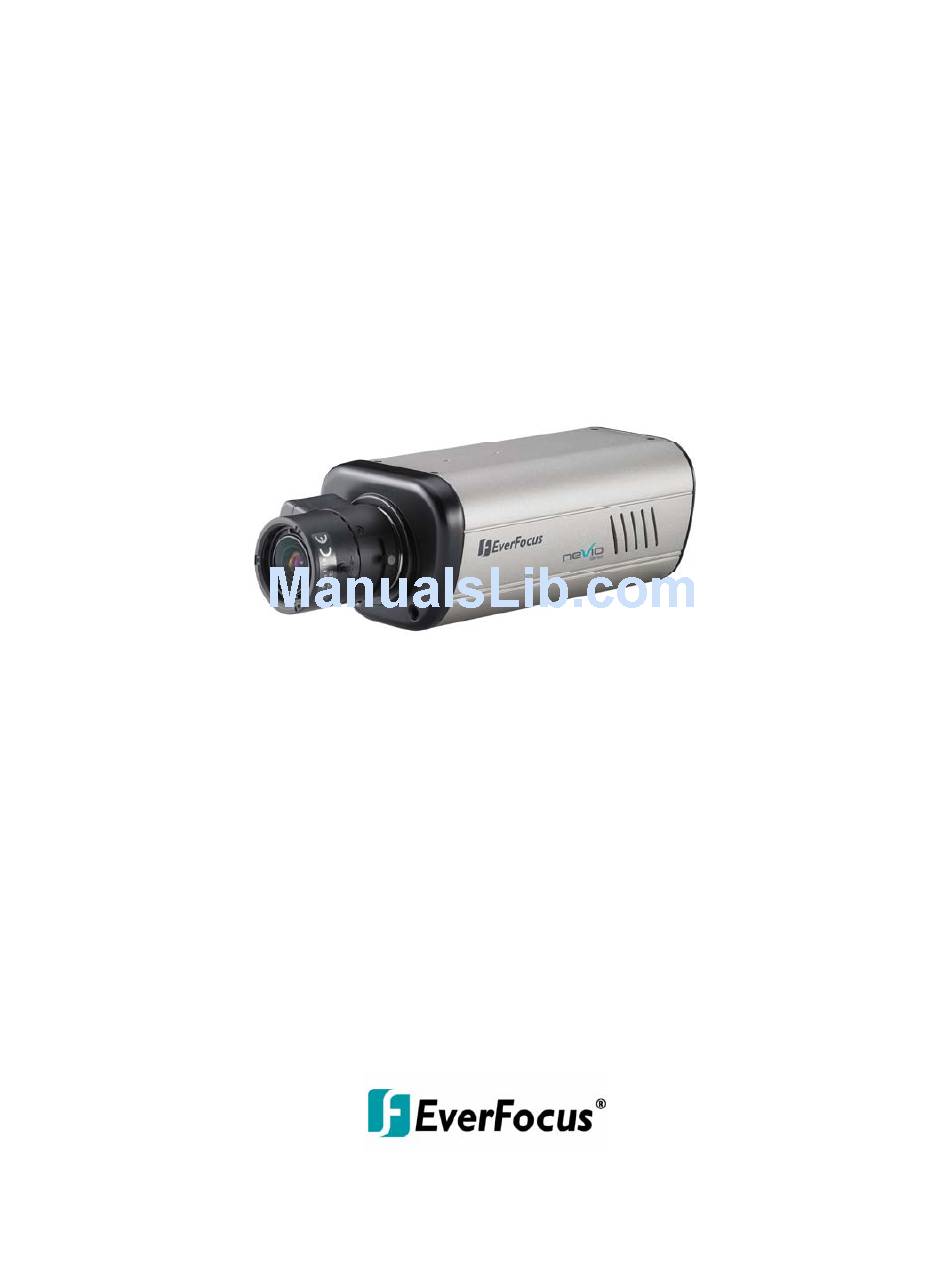

EAN850A
User's Manual
Copyright © EverFocus Electronics Corp,
Release: Dec. 2009 Rev.D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAN850A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EverFocus EAN850A

Summary of Contents for EverFocus EAN850A

  • Page 1 EAN850A User’s Manual Copyright © EverFocus Electronics Corp, Release: Dec. 2009 Rev.D...
  • Page 2 - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this equipment, not expressly approved by EverFocus or parties authorized by EverFocus could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the...
  • Page 3 Do not strike or shake, as this may damage the appliance. Do not use strong or abrasive detergents when cleaning the appliance body. Use a dry cloth to clean the appliance when it is dirty. When the dirt is hard to remove, use a mild detergent and wipe gently. EAN850A...
  • Page 4 Sun Microsystems, Inc. in the United States and other countries. Support If the unit ever needs repair service, the customer should contact the nearest EverFocus Electronics Corp. Service Center for return authorization and shipping instruction. About AC Adaptor...

  • Page 5: Table Of Contents

    4.4.2.5 AGC (Auto Gain Control)...30 4.4.2.6 DNR (Dynamic Noise Reduction) ...31 4.4.2.7 SENS-UP ...31 4.4.2.8 SPECIAL ...33 4.4.2.9 EXIT ...41 4.5 A ...42 UDIO 4.6 USER ...43 4.7 EVENT...44 4.7.1 Event ...45 4.7.2 Motion...47 4.7.3 Alarm...48 4.7.4 Time Mask ...49 EAN850A...
  • Page 6 EAN850A 4.8 SYSTEM ...51 4.8.1 Date/Time...51 4.8.2 Daylight Saving ...53 4.8.3 SD Card...54 4.8.4 Maintenance...56 5. SPECIFICATIONS...58...

  • Page 7: Introduction

    H.264 is the most advanced video compression technology that saves your bandwidth without sacrificing video quality. EAN850A is a super low lux (0.002 lux) camera with True Day/Night and built-in DNR (Dynamic Noise Reduction). EAN850A produces crystal clear images in low light conditions with substantial disk-saving.

  • Page 8: Accessing The Camera Menu

    Step 1.Start an Internet Explorer browser. Step 2. Enter the IP address or host name of the camera in the Location/Address field of your Internet Explorer browser. (Please refer to EAN850A Installation Guide for how to find the IP address) Step 3.
  • Page 9 User Config” for further information. Note: Record segment is limited to 5 min. If you need to do long time recording, please set schedule recording. For more details about schedule recording, please see “4.7 Event”. button to close EAN850A network page. EAN850A...
  • Page 10 The first icon is for alarm event and rest of the 5 icons are for motion event. The motion event icons which differed by colors correspond to the motion trigger areas you have set in Motion menu. Please refer to “4.7.2 Motion” for detailed information about Motion setup. Motion EAN850A...
  • Page 11 EAN850A...

  • Page 12: Setting

    EAN850A 4. SETTING Click this button to display the setup menu. 4.1 System Info System information and system log check of the setup menu can be performed on this page. The “System Info” page has 2 tabs: [Information] tab and the [Log] tab.

  • Page 13: Log

    System Log: Date/Time: displaying date and time of the log. Log message: all information and event message, including login, user’s IP, reboot, firmware upgrade, load factory default, configuration reset and event detected. System will keep the newest 256 records. EAN850A...

  • Page 14: User Config

    Foreground Color: Select the foreground color of text to be displayed by moving the slide bar between Red, Green and Blue until your desire color is obtained. Position: Select the position where the text will be displaying from Upper Left / Lower Right / Lower Left. EAN850A...
  • Page 15 Language: Select the language to be displayed in web page. Default language is English. To add a new language which is not listed in the original configuration, press the Browse button to locate the new language file (.evb) and then click the Load button. button, then direct to the EAN850A...

  • Page 16: Network

    The "Network setup" page has 5 tabs of the [Network] tab, the [DDNS] tab, the [SMTP/FTP] tab and the [Network alarm] tab. 4.3.1 Network The following information is required to configure the network settings. Contact the network administrator or your Internet service provider. • IP Type • IP address EAN850A...
  • Page 17 This field is to set the gateway for your network so the IP camera will be recognized within the network. When DHCP is selected, the DHCP server will assign this value automatically. Primary DNS An IP address of DNS server that is provided by ISP. EAN850A...
  • Page 18 Press Apply to apply the setting changes or Reset to reset without saving the change. Port Setting HTTP Port Port number for HTTP/WEB communication. Press Apply to apply the setting changes or Reset to reset without saving the change. EAN850A...

  • Page 19: Ddns

    ○ www.dyndns.com ○ www.no-ip.com Enable: Check the box to enable DDNS setting. Service ISP: If you choose EverFocus DDNS server, you can obtain a free account name from EverFocus ”www.everfocusddns.com”. Enter an IP Cam Account Name: Press button to register or update DDNS account.

  • Page 20: Bandwidth

    This is useful if you need to save on bandwidth. Up to 32 clients is allowed to see live video simultaneously. Subsequent viewers will see a blank image. Press Apply to apply the setting changes or Reset to reset without saving the change. EAN850A...

  • Page 21: Smtp/Ftp

    EAN850A 4.3.4 SMTP/FTP Set SMTP The settings relating to the mail server used to send the e-mail notification from the camera to predefined addresses via SMTP can be configured. SMTP Server: Enter the IP address or the host name of the SMTP server used to send e-mails SMTP Port: Enter the port number for SMTP.
  • Page 22 Test FTP Server: Press FTP server. Press Apply to apply the setting changes or Reset to reset without saving the change. button to send a testing mail to the assigned button to send a testing file to the assigned EAN850A...

  • Page 23: Network Alarm (Reserved For Powercon)

    This function is reserved for PowerCon software, for the detail setting please refer to PowerCon network alarm protocol. 4.4 Video The settings relating video such as streaming, camera OSD can be configured on this page. The "Video" page has 2 tabs: the [Multi-streaming] tab and the [Camera] tab. EAN850A...

  • Page 24: Multi Streaming

    Quality: there are 8 types of quality, please choose from Highest / Higher / High / Middle / Normal / Low / Lower / Lowest. Frame Rate: select from NTSC: 1 / 3 / 5 / 15 / 30 fps, PAL: 1/ 2.5/5/12.5/25 fps EAN850A...

  • Page 25: Camera

    Press Apply to apply the setting changes or Reset to reset without saving the change. 4.4.2 Camera Camera Settings The "Camera OSD setting" can be displayed on a video monitor and can be configured using the operation buttons on this page. EAN850A...
  • Page 26 Click these buttons to select the parameters. [Down] button/ [Up] button: Click these buttons to move the cursor. ICR Switch Setting: AUTO: ICR switches automatically according to the illumination. B/W: Select to keep B/W image. COLOR: Select to keep color image. EAN850A...

  • Page 27: Lens

    SENS-UP SPECIAL <┘ EXIT Note: Since DC lens is a built-in lens for EAN850A camera, it does not support Manual lens, please do not select lens as Manual mode, it disables sens-up and may cause malfunction of lens. Please press SET button for saving setting and return to the previous menu.

  • Page 28: White Balance Control

    AWC (Auto White Balance Control): Press the SET button while the camera is directed at a piece of white paper to get the optimum state under the BRIGHTNESS BRIGHTNESS SHUTTER > MANUAL EAN850A |+++++++++| 25 1/50...
  • Page 29 2. When the object’s surroundings are dark. 3. If the camera faces a fluorescent light directly or is installed in a place where the illumination changes constantly, the WHITE BALANCE function may become unstable. WHITE BAL. BLUE EAN850A |+++++++++| 32 |+++++++++| 39...

  • Page 30: Backlight

    MIDDLE: The gain increases from 6dB up to 30dB. LOW: The gain increases from 6dB up to 18dB. OFF: The gain is fixed at 6dB. SETUP DC <┘ LENS SHUTTER WHITE BAL. BACKLIGHT > AGC MIDDLE AUTO <┘ SENS-UP SPECIAL <┘ EXIT EAN850A...

  • Page 31: Dnr (Dynamic Noise Reduction)

    Note: When AGC is turned off, DNR will be disabled. 4.4.2.7 SENS-UP SENS UP is used to keep a brilliant, vivid screen image by automatically detecting changes in the level of light under low light level conditions. The value is from x2 EAN850A...
  • Page 32 2. The screen becomes brighter when the magnification increases; yet the after image increases as well. 3. Please be noted that spots and noise may appear if storage magnification increases when SENS-UP is operating. This is a normal phenomenon. LIMIT > AUTO EAN850A X 10...

  • Page 33: Special

    5) Once a name has been selected, please choose a position where you would like to display the name. Move the cursor onto “POS” and press the SET button. The name will appear at the top left hand corner. Please use the 4 directional buttons to find the desired position to EAN850A...

  • Page 34: Color Adj

    CAMERA ID > COLOR ADJ. <┘ SYNC. MOTIION DET PRIVACY MIRROR ON <┘ SHARPNESS RESET RETURN <┘ J K L M v w x C L R P O S E N D > LEVEL EAN850A COLOR GAIN. |++++++++| 8...
  • Page 35 RETURN <┘ 4.4.2.8.4 MOTION DETECTION EAN850A enables you to observe movements of objects in 4 different places on the screen, the message “MOTION DETECTED” appears on the screen when movement is detected; therefore this helps to improve supervision efficiency. The camera detects an object’s movement by sensing discrepancy of outline.
  • Page 36 1. The original position of AREA1 was TOP: 10, DOWN: 25, LEFT: 20 and RIGHT: AREA1 2. Increase DOWN scale value by 20. AREA1 position after change is: TOP: 10, DOWN: 45, LEFT: 20 and RIGHT: 40. AREA1 AREA2 AREA4 EAN850A...
  • Page 37 This mode covers the areas you do not want to see on the screen. 1) Please direct the arrow to point to “PRIVACY” by using the UP or DOWN button. 2) Select “ON” by pressing the LEFT or RIGHT button. 3) Press SET button. EAN850A...
  • Page 38 Additionally, it is possible to change the position of the area to be covered. Please refer to the following example for detailed steps on moving AREA1 to center. PRIVACY > AEREA SEL AREA STATE. AREA TONE DOWN LEFT RIGHT EAN850A AREA1 |+++++++++| 80 |++++++++| 10 |+++++++++| 25 |+++++++++| 20 |+++++++++| 40...
  • Page 39 3. Increase TOP scale value by 20. AREA1 position after change is: TOP: 30, DOWN: 45, LEFT: 20 and RIGHT: 40. AREA1 4. Increase RIGHT scale value by 20. AREA1 position after change is: TOP: 30, DOWN: 45, LEFT: 20 and RIGHT: 60. AREA1 EAN850A...
  • Page 40 -OFF: Disable the SHARPNESS mode. Please press the SET button. The available range of level is 0~31. SPECIAL CAMERA ID COLOR ADJ. <┘ SYNC. MOTIION DET PRIVACY MIRROR ON <┘ > SHARPNESS RESET RETURN <┘ SHARPNESS > LEVEL EAN850A |+++++++++| 8...

  • Page 41: Exit

    4.4.2.9 EXIT Press the SET button on EXIT after you finish all the settings. It will return to live image. Note: If you quit the Menu without pressing EXIT, all the settings you previously did will NOT be saved. EAN850A...

  • Page 42: Audio

    4.5 Audio The EAN850A camera can transmit audio to other clients using a built-in microphone or connecting to external microphone to play audio received from other clients via connected speakers. This section describes how to configure the basic audio settings.

  • Page 43: User

    • Guest- the lowest level of access, which only allows the user access to the Live View page. Note: Please select Active in Status section to activate user account. Press Apply to apply the setting changes or Reset to reset without saving the change. EAN850A...

  • Page 44: Event

    2. **Either Upload to FTP or Record to Network Storage can be selected to record event video to remote site. 3. Up to 10 event types can be configured in the camera, and up to 3 of these can be configured to upload images Manual Motion Schedule Trigger Detection Recording EAN850A Pre/Post-Alarm...

  • Page 45: Event

    EAN850A 4.7.1 Event The settings relating to event occurrences such as settings for the event occurrence, motion, alarm and time mask can be configured on this page. The "Event " page has 4 tabs: [Event] tab, the [Motion] tab, the [Alarm] tab and the [Time Mask] tab.
  • Page 46 EAN850A button to move between events. The event that has highest priority will be activated first. Press Apply to apply the setting changes or Reset to reset without saving the change. This example describes how to set the camera to upload images to FTP when someone press Manual trigger button: 1.

  • Page 47: Motion

    Press to update the current image. Press to have the entire screen selected for motion detection. Press to clear all selections. Press and click on the polygon, to erase that polygon. EAN850A...

  • Page 48: Alarm

    EAN850A There are 5 motion trigger areas, which can be distinguished by 5 different colors. Check Enable checkbox to enable event action. For each of them, you can set the event action to be activated. Event action can be set in “Event” section.

  • Page 49: Time Mask

    EAN850A preceding the trigger. Input the desired length of pre-trigger buffer time. It can be set up to 120 seconds. Post-Alarm Buffer: Image saved internally in the server from the time immediately after the trigger. Input the desired length of post-trigger buffer time. It can be set up to 120 seconds.
  • Page 50 2. Enter Mask name, e.g. Weekend. 3. Check “Sun” & “Sat” boxes. 4. Select “Start time” and “End time” or “Full day”. Press Apply to apply the setting changes or Reset to reset without saving the change. for a full day of event action. EAN850A...

  • Page 51: System

    Set Time Zone Time Zone: Select a time zone according to the location where the camera is in use. Set Date/Time Manually Date: Click the calendar and pick the date. Press << to go previous year, < to go EAN850A...
  • Page 52 Sync. Internal: Select an interval (1 - 24 hours: in 1 hour intervals) of synchronization with the NTP server. Time Zone: Select a time zone according to the location where the camera is in use. Press Apply to apply the setting changes or Reset to reset without saving the change. EAN850A...

  • Page 53: Daylight Saving

    EAN850A 4.8.2 Daylight Saving Set Daylight Saving Check Enable Daylight Saving checkbox to enable daylight saving. Set the start time to daylight saving time. Set the start week of daylight saving time: 1 / Last Set the start date of daylight saving time: Sunday / Monday / Tuesday / Wednesday...

  • Page 54: Sd Card

    2. E-mail notification may not always be made at a very moment when the remaining space of the SD memory card reached the selected value. Event Recording: FTP backup only: Event video will record to SD card when network is disconnected. EAN850A...
  • Page 55 2. All data saved on the SD memory card will be deleted when the SD memory card is formatted. 3. Do not turn the power of the camera off in the process of formatting. button will be shown for user to EAN850A button.

  • Page 56: Maintenance

    If necessary, it is then possible to return to the previous settings if the settings are changed and there is unexpected behavior. Press the Browse button to locate the saved config. file (see above) and then click EAN850A...
  • Page 57 Load button. The settings will be restored to the previous configuration. Upgrade Firmware Upgrade the EAN850A with the latest firmware. Press Browse button to search firmware file. Press Upgrade button to upgrade the firmware. Note 1: Do not disconnect power to the unit during the upgrade. The unit reboots automatically after the upgrade has completed.

  • Page 58: Specifications

    HTTP, TCP / IP, UDP, RTP, RTSP, FTP, SMTP, DHCP, DNS, DDNS, NTP Min. 64 kbps adjustable 32 simultaneous clients 1 x input for dry contacts, Normal Open / Normal Closed adjustable 1 x dry relay contact, Normal Open / Normal Closed adjustable, 70 VDC / 200 mA max EAN850A...
  • Page 59 68 (W) x 57 (H) x 136 (D) mm [146mm (D) with BNC socket] / 2.7" (W) x 2.2" (H) x 5.4" (D) [5.7" (D) with BNC socket] ENVIRONMENTAL Operating Temp. 0°C ~ 40°C / 32°F ~ 104°F Humidity < 90% not condensing EAN850A...
  • Page 60 415 Oser Avenue Unit S Hauppauge, NY 11788 Tel: 631-436-5070 : 631-436-5027 www.everfocus.com Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
