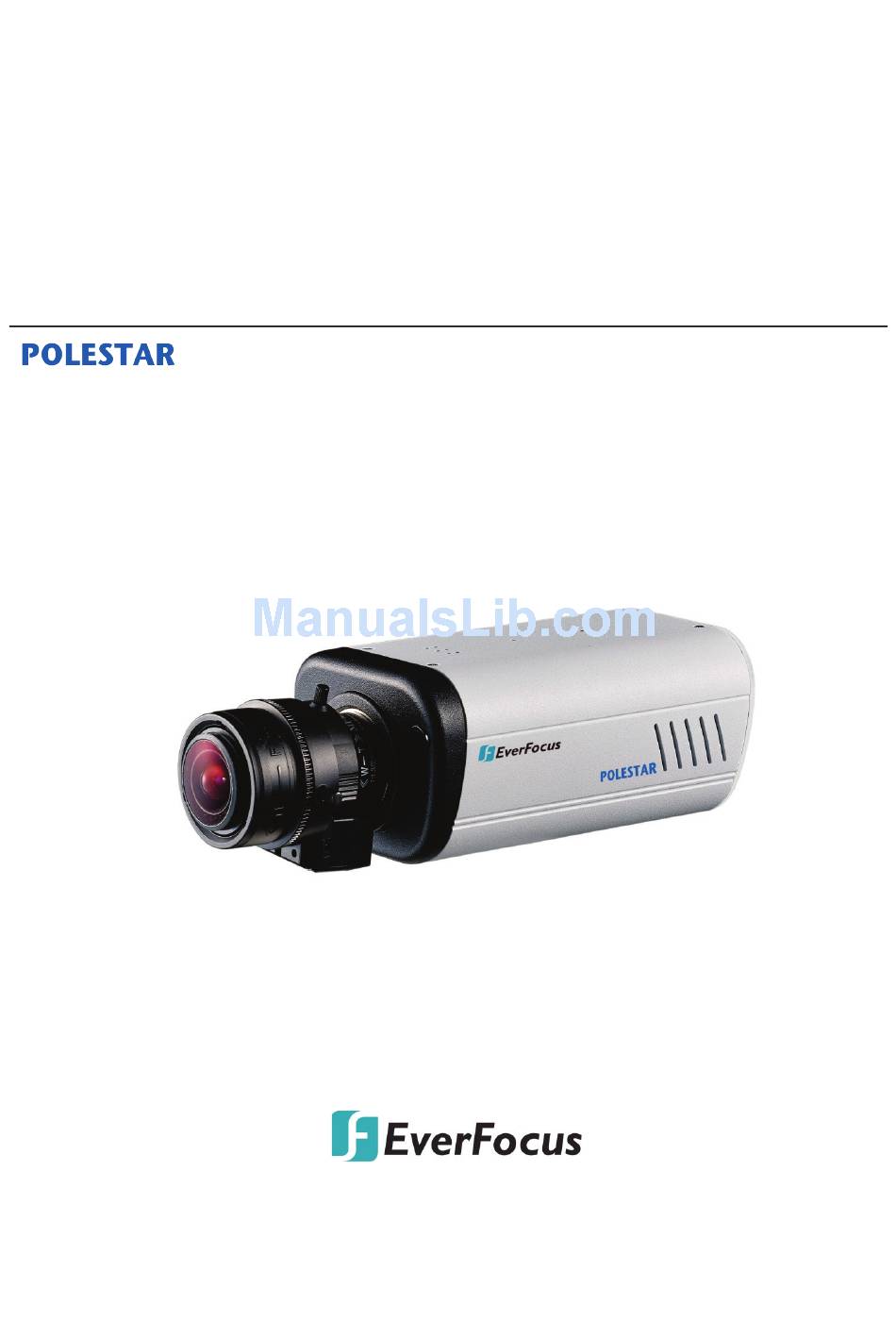

- Page 1 Star Light Box Network Camera EAN7221/7260/7360 Ultra Low Light Network Camera Quick Installation Guide ** Lens not included. Copyright © EverFocus Electronics Corp. Release Date: March, 2016...
-
Page 2: Physical Description
EAN7221/7260/7360 1. Physical Description 10 11 No. Item Name Descriptions Auto Iris Lens Connector Plug the iris control cable to the connector. Microphone One built-in microphone. Light Sensor Detects lights. Ethernet / PoE Connects to a 10BASE-T / 100BASE-TX Ethernet or PoE. -
Page 3: System Requirements
EAN7221/7260/7360 To activate the Audio function, the Enable Audio must be checked. You can also select Audio Input from line-in or mic-in. TRS Connector See 7.2.1 Streaming and Audio in the User’s Manual in the software CD. Ground (Sleeve) Right Channel (Ring) -
Page 4: I/O Terminal Block
Note: Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process. -
Page 5: Optional Accessories
IP cameras. The product can assign an IP address to the camera, then you can connect and check the camera live view using EverFocus mobile App EF Sidekick. For details about IP Sidekick, please refer to the IP Sidekick –... -
Page 6: Lens Installation And Adjustment
EAN7221/7260/7360 • EverFocus 5 / 8 / 16 / 24 Ports 5 Ports: ES0501-40 PoE Switch 8 Ports: ES0812-31 / ES0802-41 16 Ports: ES1625-31 / ES1645-51 24 Ports: ES2426-31 / ES2446-51 / ES2448-62 2. Installation This installation guide provides the basic instructions on installing an EAN box IP camera. -
Page 7: Top / Bottom-Mount
EAN7221/7260/7360 When making final focus adjustment, place the ND filter (not supplied in the package) in front of the lens to force the lens iris to open, and then adjust the lens using the Focus / Zoom Screws. Lock the Focus Screw and then remove the ND filter. -
Page 8: Basic Connection
EAN7221/7260/7360 Basic Connection 1. Use a standard network cable to connect the camera to the network. 2. Connect the camera to power using one of the following methods: • Connect the camera to a 12VDC power source using the supplied Power Pigtail Cable. -
Page 9: Accessing The User Interface
EAN7221/7260/7360 3. Accessing the User Interface You can look up the IP address and access the Web interface of the IP camera using the IP Utility (IPU) program, which is included in the software CD. The IP Utility can also be downloaded from EverFocus’... - Page 10 EAN7221/7260/7360 4. If you log in for the first time, follow the on-screen instructions to update the latest Plugin version (ePlayer). After reloading the webpage, the login window pops up again. Type the user ID and password to log in again. By default, the user ID is user1 and the password is 11111111.
- Page 11 EAN7221/7260/7360 6. To optionally configure the Machine Name, IP Address, IP Type or Port Number using the IPU: a. Log in the device by checking the desired model and then click the Log in icon. The Log in dialog box appears.
- Page 12 To set up a static IP: By default, EverFocus’ IP cameras are set up with DHCP. To change the IP setting to static IP, select Static IP from IP Type drop-down list and set up the desired IP Address, for example, 192.168.31.67.
-
Page 13: Network Connections
EAN7221/7260/7360 4. Network Connections You can use one of the methods below to connect the camera to the network. Router or LAN connection This is the most common connection in which the IP camera is connected to a router and allows multiple users on and off site to see the IP camera on a LAN / WAN (Internet). -
Page 14: Direct High-Speed Connection
EAN7221/7260/7360 Direct High-Speed Connection In a Direct High-Speed Connection, the camera connects directly to a modem without the need for a router. You need to set the static or dynamic WAN IP address assigned by your ISP (Internet Service Provider) in the camera’s configuration web pages. To access the camera, just type “http://xxx.xxx.xxx.xxx”, where xxx.xxx.xxx.xxx is the IP address given by your ISP. -
Page 15: Upgrading Firmware
EAN7221/7260/7360 5. Upgrading Firmware You can upgrade camera’s firmware using the IP Utility software included in the software CD. The IP Utility can also be downloaded from EverFocus’ Website: http://www.everfocus.com.tw/HQ/Support/DownloadCenter_p1.aspx (Support > Download Center > Keyword Search: IP Utility). Please connect the IP camera on the same LAN of your computer. - Page 16 EAN7221/7260/7360 Click the Upgrade Firmware button , a browsing window appears. Select the firmware file (.evb) and then click Open. The IPU will automatically upgrade the firmware. The camera will reboot once the upgrade process is complete.
- Page 17 TEL: +81 3 5625 8188 www.everfocus.com FAX: +81 3 5625 8189 sales@everfocus.com www.everfocus.co.jp info@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
