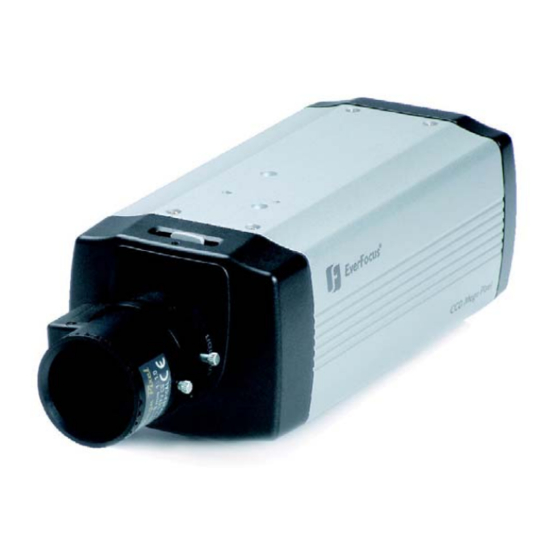

• Consult the dealer or an experienced radio/ TV technician for help. This Product is RoHS compliant. Your EverFocus product is designed and manufactured Ihr EverFocus Produkt wurde entwickelt und WEEE with high quality materials and components which can hergestellt mit qualitativ hochwertigen Materialien be recycled and reused.
1.3 SYSTEM REQUIREMENTS Network environment LAN 10/100 Ethernet Cable CAT.5E or higher Monitoring system requirements Operating system Windows 2000 Professional SP4/ XP SP2 / VISTA Browser Internet Explorer 6.x or later versions System hardware CPU: Pentium 4, 2.4GHz or better RAM: 512MB (1GB recommended) VGA resolution:...
Page 7
Browser Integrated browser applet (Internet Explorer 6.0 or above required) Application Software PowerCon 4.3 or higher (optional) EverFocus NVR series OS supported Microsoft Windows XP, Vista Software Features / Functions TCP/IP Static IP Address / DHCP, PPPoE, DDNS, UPnP, SAMBA...
2 HARDWARE INSTALLATION 2.1 BACKPANEL CONNECTORS 1. Power 12 VDC / 24 VAC 2. Switch Video / IP 3. Terminal Alarm / RS485 4. Reset Switch 5. LAN port 6. Video out BNC 7. Power / Status LED 8. Audio in 9.
Page 9
8. Audio Input: 3,5 mm audio socket for Audio line input 1 V max / 10 KOhm 9. Audio Output: 3,5 mm audio socket for Audio line output 1 V max to 10 KOhm 9 of 59...
2.2 LENS MOUNTING For lens mounting, remove the protection cover at the front and screw the lens on the camera body. The EAN-1350 camera supports lenses with manual iris and DC-controlled iris. Please make sure, that the used lens supports 1/3" CCD chip format. It is recommanded to use Megapixel lenses to achieve best image quality.
2.3 CAMERA MOUNTING The camera monting adapter allows using standard camera brackets with 1/4" thread. The mounting adapter can be mounted at top or botton side of the camera body. 2.4 VIDEO INSTALLATION FOR CAMERA / LENS ADJUSTMENT For checking and adjusting lens and camera viewing direction connect a standard video monitor to the BNC socket.
2.5 ALARM IN- / OUT INSTALLATION Alarm- in- and outputs are connected to the screwless terminal at backside of the camera. For Details to input/output circuit refer to Attachment A. 2.5.1 Terminal pin assignment: Contact Description Alarm IN 1 + (max 50 V DC) Alarm IN 1 - Alarm IN 2 + (max 50 V DC) Alarm IN 2 -...
B) Installation with dry N.O. contact using external DC voltage ATTENTION: Do not exceed the maximum input voltage of 50 V DC. This may cause serious hardware damage. 2.5.3 Alarm Output The relay output provides dry contacts, maximum load is 24 V DC, 1 A. 7 (N.O.) 5 (Com) Relay output contacts:...
2.6 AUDIO INSTALLATION Audio input and output are connected to the 3,5mm sockets. Please make sure to use a pre-amplified microphone with line level 1 V max. For audio output please use active speakers only. 2.7 RS-485 TELEMETRY INSTALLATION The EAN-1350 supports Pan-/Tilt/Zoom control of RS-485 PTZ receivers with Pelco-D/P telemetry protocol.
2.8 NETWORK INSTALLATION / WIRING Depending on the network environment at installation site, connect camera network connector to the LAN (switch, router, PC...). Use CAT.5 cable or better for installation. The camera network interface is auto-sensing, this means normal straight wired patch cable or crossover cable are supported.
3 IP- SETUP 3.1 NETWORK INSTALLATION / BASIC IP - SETUP WITH IP-FINDER The IP-Finder application (on application CD in camera package) is a useful tool for initial IP - setup f the camera. Start the IP-Finder at a PC, which is connected in to the same network as the camera is or use a direct network connection camera<>PC.
3.3 NETWORK INSTALLATION / BROWSER SETUP At initial connecting by web browser an installation of the camera ActiveX control is required. Supported we browsers are Internet Explorer (version 6.0 or higher) or Mozilla Firefox (version 3.0 or higher) with installed IE-Tab Add-On. Make sure that user rights at this PC allow installation of ActiveX components.
Page 18
Click on OK. At first time login the installation of the ActiveX control for the camera is required: 18 of 59...
4 MAIN OPERATION SCREEN After successful login the main screen appears: Switch Live / setup mode Language Alarm indicator Video settings Video streaming mode Pan-Tilt control Video window size Video streaming format Alert Log Video window File path setup for record/snapshot Status display Single picture snapshot...
5 SETTINGS - BASIC SETTING 5.1 SETUP SCREEN To access the detailled camera setup click on "Settings" in upper right corner of the window. 5.2 SYSTEM The System setting page gives an overview about camera version and basic IP settings. The values are not editable at this page except the Device name.
5.2.1 System Log The administrator can view all login information of this camera, including boot record, video streaming mode, login IP, changes, and the date/time information. You can copy the entries to a Word document and save them manually. Please note that all information is deleted when you turn off the machine.
5.3 VIDEO / IMAGE Setup menu for general video quality and streaming settings. 5.3.1 Video 2 modes are available: Sensor Scan Mode Full scan: Mode with highest available resolution, reduced framerate Partial scan: In this mode 4 pixel are combined in scanning. Realtime framerate and enhanced light sensitivity are available in this mode.
color palette. Select a character color by clicking in a color in the palette. Background color Color of character´s outline: clicking in the color box at right opens a color palette. Select a outline color by clicking in a color in the palette. Display Text Free editable text / camera title for overlay function Date Time Position...
Page 25
DayNight Setting Mode Mode for day (color) and night (b/w without IR-Cutfilter) switching: Auto: automatic switching to dayand night mode, "Status" shows the current mode (not editable) Manual: Manual setup of day / night mode External: D/N switching by external contact, setup under "EVENT"...
5.4 AUDIO The EAN-1350 provides bidirectional audio transmission with different quality options. Mode Full duplex: Allows using a microphone and amplifier at the same time, or turning them off at main page. Half duplex: Allows using a microphone or amplifier by manual switch.
5.5 PTZ This Setup page contains settings for electronic zoom and external RS-485 PTZ devices. The EAN-1350 provides control of 2 PTZ devices, this allows a combined control of electronic zoom and external PTZ - device. Camera Diver 1 Driver setting for PTZ driver 1: EZOOM: electronic zoom (only for MPEG4 mode) , address setting is not relevant Pelco-D: setting for external PTZ receiver with Pelco-D...
PTZ Driver Upload Upload of new available PTZ drivers: Search: Enter the file path to the new PTZ driver files. Upload: Load the drivers to camera Reset: Reset the PTZ drivers, neccessary after Upload Serial port settings Interface parameter of the RS-485 port, these parameters should be identical to the PTZ device Port Locked at COM 0, no selection needed...
Page 29
Add / Modify / Delete User Press "Add" to define a new user, "Update" to modify the settings for a selected user. "Delete" removes a user from the list ("user1" can not be deleted). User setting: anonymous login "Enable" allows access to the camera without login by username /password.
Page 30
The EAN 1350 provides 4 level of different user rights. The details are listed in table below: User Main Administrator Operator Viewer Administrator Live View Record File Path System Setting Video Setting PreProc Sensor Audio Setting Date / Time Setting User Setting Network Setting...
5.7 NETWORK 5.7.1 Network IP - Assignment DHCP OFF: Fixed IP address IP-address assignment provided by DHCP (requires DHCP support in the network) IP-Address In the mode DHCP ON: display of IP - Address, in mode DHCP OFF: manual entering of the cameras IP adress (alternative to the setting by the "IP-Finder"...
EAN-1350 Installation / Operation 5.7.2 Services The FTP function allows FTP access to the camera. This function is currently not supported by this camera model. 5.7.3 Streaming Streaming method Setting HTTP Port 80(80 by default) can pass through most firewalls under Internet environment.
EAN-1350 Installation / Operation 5.7.4 PPPoE PPPoE ( Point-to-Point Protocol over Ethernet) is a protocol that supports access to a high-speed wideband network using a PC and a wideband modem (such as xDSL, Cable, Wireless modem). The user need only to equip the PC with an Ethernet card and apply to an ISP and an ADSL provider for ADSL service to roam the Internet through ordinary twisted copper wires.
EAN-1350 Installation / Operation 5.7.5 DDNS DDNS (Dynamic Domain Name Service) provides a central (public) database where DNS information can be stored and retrieved. It allows those using a dynamic IP address (i.e. one where it changes each time the computer connects to the internet) to be registered centrally so others can connect to it by name.
EAN-1350 Installation / Operation 5.7.6 UPnP UPnP (Universal Plug and Play) If you connect your camera to a router, IP allocator, or wireless AP, the camera will possibly be blocked by the NAT (network address translation) and can’t be located on the Internet. To penetrate the firewall, activate the supportive item UPnP.
Page 36
EAN-1350 Installation / Operation To activate the UPnP function in Windows OS: Ex: Windows XP: Windows component installation. 1. Click Control Panel 2. Click Add/Remove Programs 3. Click Add/Remove Windows Components 4. Click Networking Services 5. Click Detail 6. Check / add UPnP User Interface Firewall settings 1.
EAN-1350 Installation / Operation 5.7.8 SAMBA The EAN-1350 supports SAMBA server for storage of event snapshots and video recordings. SAMBA Setting Active Enable: enable SAMBA server Disable: deactivate SAMBA server SAMBA Enable: enable SAMBA authentification authentification Disable: setting for SAMBA server, which work without authentification Username SAMBA login username...
EAN-1350 Installation / Operation 5.7.9 Notification Notification service for installations with dynamic IP-Adressing. After IP-Adress change the camera can send out notification by email, ftp or HTTP. This service is not needed for installations with fixed IP-Address. Notification Setting SMTP If activated, enter email - address Email subject If activated, enter access data to the FTP server HTTP...
EAN-1350 Installation / Operation 5.7.10 Multicast This function allows multiple people to watch video streaming without limitation on the number of users. Multicast is only applicable in the LAN environment. The function requires support of Multicast function in the connected network. The video streaming format (MPEG4/MJPEG) depends on the selected image format setting in Video settings.
EAN-1350 Installation / Operation 5.7.11 Date / Time The EAN-1350 camera supports date / time setting in manually, synchronized with client PC or automatic adjustment by NTP time server. Date / Time Setting Server Time Current time and date of the camera, display only. Time setting Current time and date of client PC, used for function "...
EAN-1350 Installation / Operation Switch from Time for switching to DST and updated time End time End date of DST Switch from Time for switching off DST and updated time 5.7.12 IP Filtering The EAN-1350 provides IP filtering for network access to the camera based on a blacklist or whitelist.
EAN-1350 Installation / Operation 6 SETTINGS - APPLICATION SETTING 6.1 EVENT 6.1.1 Event These setup pages provide settings for event related actions such as recording, notification and contact output. Add / Modify Event Press "Add" to define a new event. Depending on current settings several status / warning messages for event related settings may appear.
Page 44
EAN-1350 Installation / Operation Event Setting Name Name of the event (appears in the event list) Response to event Always: permanent event handling trigger During time: simple weekly schedule function for event handling, set a start time and a duration of activity (in hours, max 168) Example: Event handling shall be activated from Saturday 08:00 am to Monday 8:00 am.
Page 45
EAN-1350 Installation / Operation SERVER menu is required to activate server upload. Send TCP In case of event the camera will send a notification message to a notification TCP server. Note: A definition of Notification server in EVENT > EVENT SERVER menu is required to activate server upload.
EAN-1350 Installation / Operation 6.1.2 Trigger This menu provides setting for alarm input contact modes and test functions. Event Setting Alarm Input 1 / 2 Contact mode of alarm inputs, Normal Open or Normal Closed. Triiger Alarm Out Manual trigger of relay output (latched function). "Clear"...
EAN-1350 Installation / Operation 6.1.3 Event Server Setup for the event servers. Press "Add FTP", "Add HTTP", "Add TCP" or "Add UDP" to define the access data for event servers. Press "Modify" to change selected server. Press "Remove" to delete event server. 47 of 59...
EAN-1350 Installation / Operation 6.2 MOTION DETECTION The EAN-1350 offers motion detection in 3 independent zones. Zone 3 can be defined as "Exclusive" zone, no motion will be detected. Setup of "EXCLUSIVE" zone: Motion detection Setting Area 1 ~ 3 Set the checkbox to enable the motion detection zone.
EAN-1350 Installation / Operation 6.3 FIRMWARE UPGRADE Firmware upgrade Setting Model Shows the camera type Hardware version Shows hardware version of the camera Firmware version Shows current firmware version Firmware build Creation date of current firmware time Firmware upgrade Search Enter the file path to the upgrade firmware file Submit Send the selected firmware file to the camera.
EAN-1350 Installation / Operation 6.4 FACTORY DEFAULT This menu allows to load factory default values and backup / restore camera settings. Factory Default Setting Resets all settings, All values will be set to factory defaults except the basic except IP - parameters settings for IP parameters.
EAN-1350 Installation / Operation 6.5 REBOOT Press "Reboot" to initialize the camera by restarting. A confirmation popup will appear. Confirm the request with "OK". 51 of 59...
EAN-1350 Installation / Operation 7 OPERATION 7.1 MAIN SCREEN CONTROLS After successful login the main screen appears: Switch Live / setup mode Language Alarm indicator Video settings Video streaming mode Pan-Tilt control Video window size Video streaming format Alert Log Video window File path setup for record/snapshot...
EAN-1350 Installation / Operation Transmission mode of the video stream, the ideal mode depends on the network conditions: UDP: Provides the fastest but most unreliable transmission service. Video steams are transmitted through UDP Port (50000~60000 by default) to ensure the fastest image transmission. However, video fragment or mosaics may occur due to poor transmission quality.
EAN-1350 Installation / Operation 7.4 PAN / TILT / ZOOM Depending on setting the PTZ control works with electronic zoom (setting EZOOM in > SETTING > PTZ) or with external PTZ devices. PTZ-Device: Select a PTZ device (setup in > SETTING >...
EAN-1350 Installation / Operation 7.5 RECORD / SNAPSHOT SETTING Click on to define the settings for manual record and snapshots. Recording Path Doubleclick in the setup field to define the folder location for manual records. Filename Prefix Define a prefix for the record file name. The file name contains the prefix, start date and start time.
EAN-1350 Installation / Operation 7.6 MANUAL RECORD Press on "REC" to start a manual record. The file format is AVI. The storage location is defined by the "PATH" icon. The icon will start to flash. A RECORD symbol appears in lower left corner of the video window. Press "REC"...
EAN-1350 Installation / Operation 7.8 AUDIO The audio fuctionality depends on the installation and on settings in > SETTINGS > AUDIO. Listen Audio transmission from camera to client PC. Click on the icon to switch the mode. No audio from camera to client PC. Click on the icon to switch the mode.
