Summary of Contents for EverFocus ED300 Series
- Page 1 ED300 Series User’s Manual Operation Instructions Version 1.0...
-
Page 3: Table Of Contents
Table of Contents Notice ..................... 1 Safety Warning ................2 Introduction..................3 Specification ................... 4 Major Parts Names and Functions .......... 5 Installation Instructions ............7 Adjustments................8 Lens Adjustments ..............9... -
Page 4: Notice
Notice This manual is presented to the users of ED300 by EverFocus Electronics Corp. With years of engineering researches, EverFocus has spared all efforts to provide the high quality products to the worldwide users. For the policy of continual product improvement, EverFocus reserves the right to make changes to the product specifications and documentation without notice. -
Page 5: Safety Warning
Safety Warning 1. Do not expose the camera to humidity and dust. Moisture can damage the camera and cause the danger of electric shock. If the camera is mounted outdoors, a camera housing is required. Do not install the camera at where there is greasy smoke or steam, where the humidity is too high, or where there is a lot of dust to prevent damages to the camera. - Page 6 5. Do not install the camera in the high temperature environment. Installed the camera away from stoves, or other heat generating devices, or where it could be subject to direct sunlight as the high temperatures could cause deformation, discoloration or other damages of the camera.
-
Page 7: Introduction

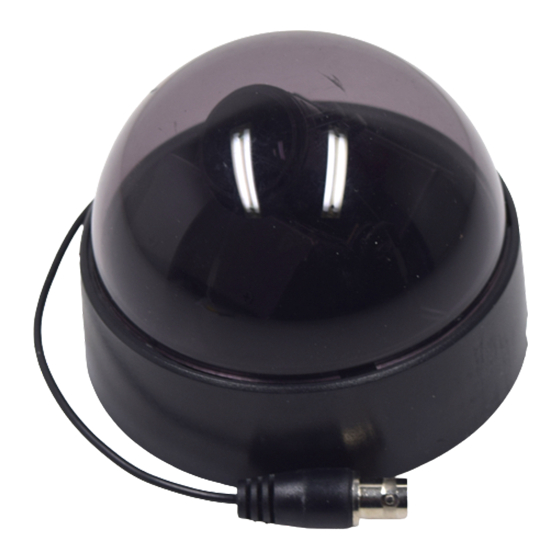

Introduction The ED300 Series Cameras are compact, full functioned CCD Color Cameras. Their stylish appearance can be applied as per installer's ideal locations on the ceiling. The dome camera designed with advanced digital processing curcuitry for high resolution 1/4" color interline transfer CCD sensor, it has DIP switch for AGC on/off, BLC on/off. -
Page 8: Specification
Specification Pickup device: 1/4" Interline transfer CCD Video format: NTSC/PAL Scanning system: NTSC: 525 TV lines, 60 fields/sec; PAL: 625 TV lines, 50 fields/sec. Picture elements: NTSC: 811(H) x 508 (V); PAL: 795 (H) x 596 (V) Effective picture elements: NTSC: 768 (H) x 494 (V); PAL: 752 (H) x 582 (V) Horizontal resolution: 480 TV lines Sensitivity:... -
Page 9: Major Parts Names And Functions
Major Parts Names and Functions ED300 ED300A(with audio) & & 12 12 12 12 12 12 12 12 11 11 11 11 13 13 13 13 11 11 11 11... - Page 10 ) ) ) ) Camera Cover * * * * Level Volume Control This cover will protect the camera from dust The iris level control for the lens. and damage. + + + + Ground Pin $ $ $ $ Lens For monitor use.
-
Page 11: Installation Instructions
Installation Instructions 1. Remove the plastic dome cover. 2. Lossen the two screws of the supporting bracket to remove the camera body. 3. Using four screws to fix the camera base on the ceiling. 4. Put the camera body back to the supporting bracket, then tighten the two screws to fix the camera. -
Page 12: Adjustments
Lens Adjustments - - - - Zoom and focus adjustments After the camera was installed, the zoom and focus of the lens must be adjusted. 1. Loosen the zoom ring knob, and then turn the ring towards <WIDE> or <TELE> as necessary to obtain the desired view range. - Page 13 Adjustments Auto Gain Control Adjustment AGC ON: The sensitivity increases automatically when the light is low. AGC OFF: A low-noise picture is obtained under a low light condition. Back Light Compensation Adjustment When the background of the subject is very bright and the subject itself is dark, set the BLC (Back Light Compensation) ON.
- Page 15 EverFocus Electronics Corp. EverFocus Electronics Corp. EverFocus Electronics Corp. EverFocus Electronics Corp. Head Office: 10F-6, No.79 Sec. 1 Shin-Tai Wu Road, Hong Kong Office: Hsi-Chi, Taipei, Taiwan Room 18, 11/F1, Pacific Trade Centre TEL : 886-2-26982334 2 Kai Hing Road, Kowloon Bay, Hong Kong...
