SAP4000P
Power Rail Probe
User Manual
EN01A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAP4000P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIGLENT SAP4000P

Summary of Contents for SIGLENT SAP4000P

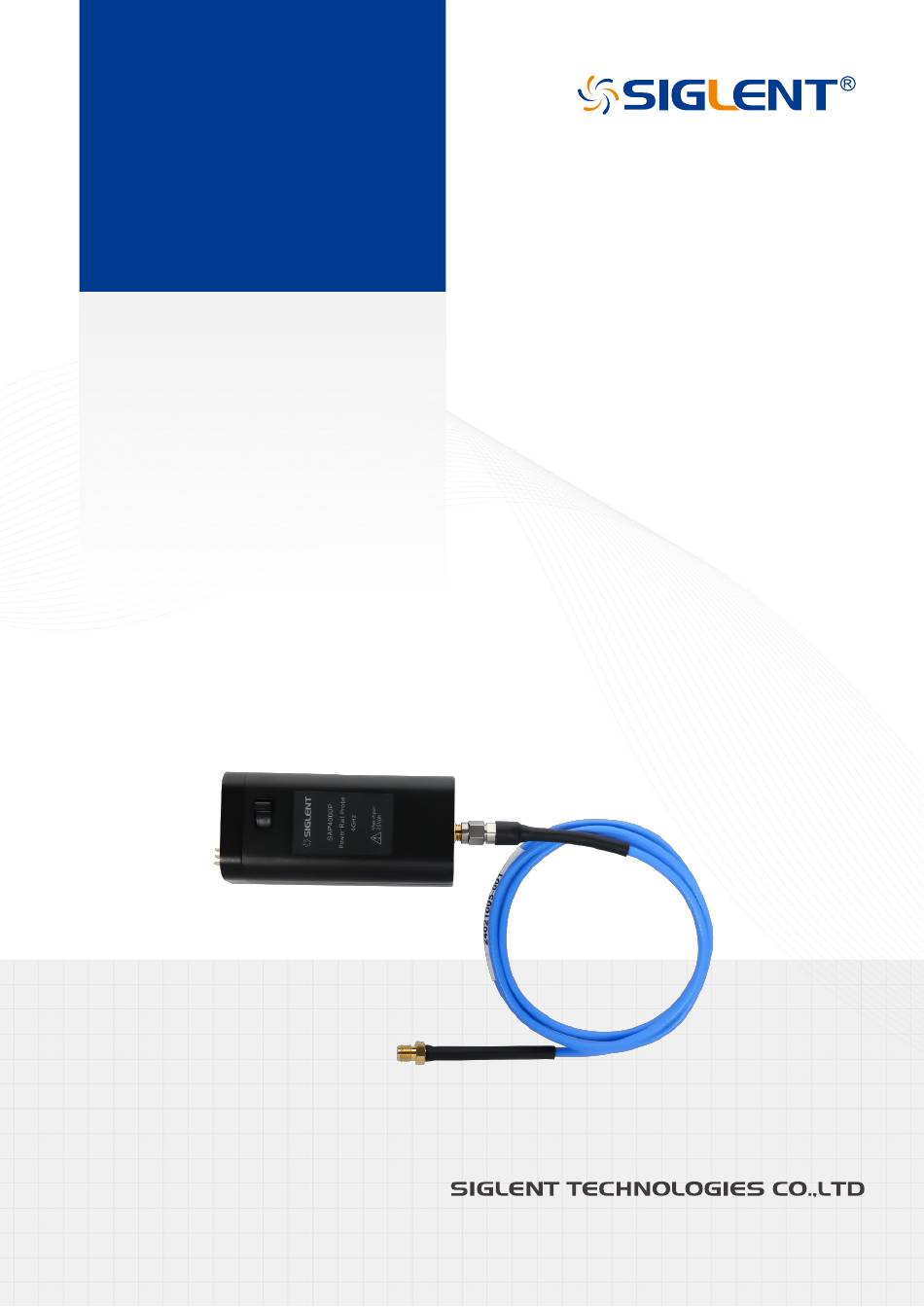

  • Page 1 SAP4000P Power Rail Probe User Manual EN01A...

  • Page 3: Table Of Contents

    Connect using the high speed probe browser ............. 19 Pigtail Cable Welding ....................20 Probe Fixing Method ....................20 5.4.1 Fixing the probe using the two-legged positioner PP201 ........20 5.4.2 Fixing the probe using the 3D positioner PP301 ..........21 SAP4000P Power Rail Probe...

  • Page 4: Introduction

    1 Introduction This user manual contains important safety information related to the SAP4000P Power Rail Probe, as well as a basic tutorial on the probe’s operational use. SAP4000P Power Rail Probe...

  • Page 5: Safety Instructions

    5° C to 40° C Main Cable, Pigtail Cables and -10° C to 55° C other accessories Humidity: Maximum relative humidity of 80% at 30° C, linearly decreasing to 50% at 40° C. Altitude: Up to 10,000 feet (3,048 meters). SAP4000P Power Rail Probe...

  • Page 6: Calibration

    To use the probe correctly, carefully read all instructions and labels. Warning: Using the probe in a manner not specified by the manufacturer may damage the probe. This probe and related accessories should not be directly connected to the human body or used for patient monitoring. SAP4000P Power Rail Probe...

  • Page 7: First Steps

    First, check that all items listed on the packing list have been delivered. If you note any omissions or damage, please contact your nearest SIGLENT customer service center or distributor as soon as possible. If you fail to contact us immediately in case of omission or damage, we will not be responsible for replacement.

  • Page 8: Quality Assurance

    SIGLENT shall not be responsible for any defect, damage, or failure caused by any of the following: Repairs or installation conducted by individuals not authorized by SIGLENT.

  • Page 9: Probe Technical Specifications

    4 Probe Technical Specifications SAP4000P is a high-bandwidth power rail probe known for its features such as high bandwidth, low noise, high input impedance and large offset voltage range, making it suitable for power integrity measurements. The SAP4000P power rail probe utilizes the SAPBus interface and is compatible with oscilloscopes that support the SAPBus interface, such as the SDS3000X HD, SDS5000X, SDS6000 Pro, and SDS7000A series oscilloscopes.
  • Page 10 Therefore, it is recommended that the output impedance of the circuit under test should be much less than 1 ohm. SAP4000P Power Rail Probe...
  • Page 11 (50 kΩ) for the DUT. The low input impedance of 50 Ω at higher frequencies can reduce the noise output by the probe to the oscilloscope and improve the frequency range and accuracy of the measurement. The following figure shows the relationship between the probe input impedance and frequency. SAP4000P Power Rail Probe...

  • Page 12: Accessories

    4.2 Accessories SAP4000P has the following accessories: Standard Accessories Part Number Quantity Unit Main Cable 2.52.63.01.378 Pigtail Cables 2.52.63.01.379 SMA-M Cable 2.52.63.01.361 High Speed Probe Browser 2.67.10.01.107 Low Speed Probe Browser Kit 2.67.10.01.105 SMA Dual Lead Adapter 2.52.62.20.173 Micro SMD Clip 2.67.10.01.108...
  • Page 13 SMA-M cable: 6cm long, used to connect the main cable and high speed probe browser. High speed probe browser: Point test surface mount devices, suitable for 0603 and 0402 packages. SMA dual lead adapter: Can be directly connected to the pin header or micro capacitor clip. SAP4000P Power Rail Probe...
  • Page 14 Micro SMD Clip. Low Speed Probe Browser. Two-legged Positioner PP201: For probe fixing. SAP4000P Power Rail Probe...

  • Page 15: Probe Dimensions

    3D Positioner PP301：For probe fixing. 4.3 Probe Dimensions Unit: mm Probe Amplifier SAP4000P Power Rail Probe...
  • Page 16 Main cable SMA-M Cable Pigitail Cable Low Speed Probe Browser, Main line length 1 meter SAP4000P Power Rail Probe...

  • Page 17: Probe Operation

    5 Probe Operation The SAP4000P power rail probe is a precision test and measurement instrument. Avoid excessive pulling on the cable during use, and when not in use, store the probe in the provided probe pack. Electrostatic Sensitive: The probe is sensitive to ESD. When using the probe, adhere to ESD protection procedures.

  • Page 18: Connect Using The Pigtail Cable

    Pigtail cable for use with probe amplifier and main cable. Tip is soldered to the circuit under test, providing a reliable connection and short ground loop. Measurement bandwidth > 4GHz. 5.2.3 Connect using the low speed probe browser SAP4000P Power Rail Probe...
  • Page 19 Ground spring: Using ground spring grounding can make low speed browser probe achieve higher performance. Its flexible structure can easily change the spacing between input and ground to adapt to the location of the test point. SAP4000P Power Rail Probe...

  • Page 20: Connect Using The Sma Dual Lead Adapter

    The connection is more reliable and there is no risk of insulation. Measurement bandwidth > 200 MHz. Micro SMD Clip: The Micro SMD Clip is used with the SMA dual lead adapter to quickly test the power supply signal of surface mount capacitors. SAP4000P Power Rail Probe...

  • Page 21: Connect Using The High Speed Probe Browser

    The high speed probe browser provide a convenient, high bandwidth method for probing surface mount capacitor packages commonly used in power distribution networks. High speed probe browser can be used to test 0603, 0402 packages. Measurement bandwidth > 3 GHz. SAP4000P Power Rail Probe...

  • Page 22: Pigtail Cable Welding

    When using the probe, the probe can be fixed using the corresponding probe positioner, which can free your hands and make the connection between the probe and the measured point more stable. 5.4.1 Fixing the probe using the two-legged positioner PP201 PP201 is a standard accessory. SAP4000P Power Rail Probe...

  • Page 23: Fixing The Probe Using The 3D Positioner Pp301

    Do not turn the knob too far counterclockwise, just enough to allow the lever arm to move. Otherwise, the knob may become inoperable and require reassembly. SAP4000P Power Rail Probe...
