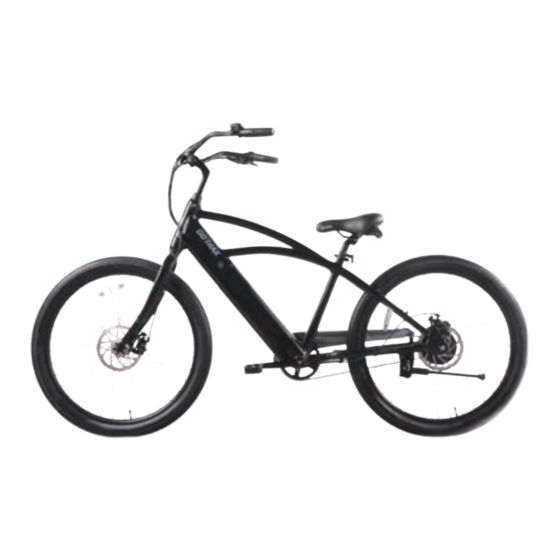

AEROLUXESO
E L E C T R I C
B I K E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AEROLUXESO and is the answer not in the manual?

Questions and answers

Summary of Contents for Gotrax AEROLUXESO

  • Page 1 AEROLUXESO E L E C T R I C B I K E...
  • Page 3: Table Of Contents

    Contents Don’t Ride Until You Read This: ............Warning Message ..................Unpacking and Product Specs ............... Get To Know Your E-Bike ................ Handlebar Assembly ................Seat Assembly.................... Rear Reflector Assembly ................Pedals Assembly ..................14 Front Wheel Assembly ................Removing The Battery................Charging The Battery ................
  • Page 4: Congratulations On Your Purchase

    Congratulations on your purchase! This user manual will help you assemble and operate your new electric bicycle. Be sure to read ALL OF THE INFORMATION in this manual before riding. NOTE TO ALL RIDERS UNDER THE AGE OF 18: It’s very important that you get parental permission before riding your electric bicycle.
  • Page 5: Don't Ride Until You Read This

    Don’t Ride Until You Read This: ALWAYS wear a helmet when riding your electric bike. Make sure your electric bike has a full battery before taking it out to ride. Always be aware of local road laws, and follow them. Do not ride the bike under the influence of drugs or alcohol.
  • Page 6: Warning Message

    2. Avoid prolonged exposure to sun or rain and avoid storage in places with high temperatures or corrosive gas. Whenever you ride the GOTRAX Electric Bike ,you risk severe injury or even death from loss of control, collisions, and falls. Use caution and ride at your own risk.
  • Page 7 15. Make note that additional insurance may be required to cover situations you encounter while riding an electric bike. It is recommended that you contact an insurance company or broker for advice and consultation. 16. To conserve electricity, use assist mode and avoid zero starting, frequent braking, driving against the wind, carrying heavy loads including other people and riding with insufficient air pressure.
  • Page 8 ALWAYS WEAR A HELMETIT COULD SAVE YOUR LIFE! A properly fitting, CPSC approved, bicycle helmet should be worn at all times when riding your bicycle. In addition, if you are carrying a passenger (only use an approved child safety seat), and remember, the passenger must also be wearing a helmet.
  • Page 9 following measures: *Reorient or relocate the receiving antenna. *Increase the separation between the equipment and receiver. *Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. *Consult the dealer or an experienced radio/TV technician for help.
  • Page 11: Unpacking And Product Specs

    Large wrench Allen wrenches Screwdriver Battery Keys rear reflector Pedal Battery Charger ITEM SPECIFICATIONS Model AEROLUXESO Unfolded Dimensions 1900*780*1130mm(74.8*30.7*44.5 in) Package Dimensions 1560*275*730mm(61.1*10.8*28.7 in) Max Load 120kg(264lbs) Max Speed 32km/h(20MPH) Battery 36V 9.6Ah Input 100-240V 50/60Hz AC Plug: Output 42V 2A...
  • Page 12: Get To Know Your E-Bike

    Get To Know Your E-Bike LED Display Stem Saddle Seat Post Battery Pedals Crankset Wheel Chain Disc Brake Charger Port Motor Tire...
  • Page 13: Handlebar Assembly

    Handlebar Assembly Put the handlebar riser into the front fork riser Tighten the bolts at the top of the riser to pipe according to the figure; The safety line of secure it directly in front of the bike by 6mm the handlebar riser should not be exposed hex tool;...
  • Page 14 Check whether the handlebar is aligned with the front wheel. If not, repeat above steps to adjust;...
  • Page 15: Seat Assembly

    Seat Assembly Take the seat post and seat tube; Loosen the seat clamp; Insert seat post into seat tube, adjust Clamp secure/tighten the quick release position; Adjust the seat height. Clamp clamp. secure/tighten the quick release clamp.
  • Page 16: Rear Reflector Assembly

    Rear Reflector Assembly Take rear reflector and bolt out of place rear reflector on the locking bolt tool box; of the seat tube and tighten it with the cross head screw-driver.
  • Page 17: Pedals Assembly

    Pedals Assembly Check the L-Left and R-Right pedal; Take 15mm wrench out of toolbox; NON Drive Side of Bike select L-Left Drive Side of Bike select R-Right pedal; Insert Pedal into Crank/Drive side and pedal;Insert Pedal into Crank Arm/NON- Drive side and start to turn start to turn CLOCKWISE;Once hand COUNTER CLOCKWISE;Once hand tight apply 15mm wrench to pedal and...
  • Page 18: Front Wheel Assembly

    Front Wheel Assembly Remove the shaft and the filler block from the Remove the cover on the shaft; Position the front front disc brake caliper;(NOTE: DO NOT wheel so that it is centered between the front fork THROW IT AWAY, YOU NEED TO REINSTALL THE legs and the shaft is in the front fork rack;Align PACKING BLOCK EACH TIME YOU REMOVE THE the disc brake of the front wheel set with the disc...
  • Page 19: Removing The Battery

    Removing The Battery Rotate the key counterclockwise, and Pull the battery out from the side with the battery will automatically pop out your hand, and lift it out from the top to the side. of the battery. The removed battery can be charged When pick out of the battery,please keep the battery cavity clean and avoid separately, and the installation and...
  • Page 20: Charging The Battery

    Charging The Battery Insert the output end of the charger Red light indicates that the battery is into the battery and the input end into charging, and green light indicates that the power supply the battery is fully charged.
  • Page 21: Charge Your E-Bike

    Charge Your E-Bike You can also charge your battery installed in the bike using the exterior charging port. 1. Locate the charging port. 2. Plug one side of the charger into the charging port and plug the other into an outlet. 3.
  • Page 22: Tire Inflation Instructions

    Tire Inflation Instructions Tires and Tubes After assembling your bike, it will be necessary to inflate the tires. Check the sidewall of the tire for the correct tire pressure (PSI) and inflate tires accordingly with a MANUAL BICYCLE PUMP. Improper inflation is the biggest cause of tire failure. Due to the slightly porous nature of bicycle inner tubes, it is normal for your bike tires to lose pressure over time.
  • Page 23 Tire pressure is given either as maximum pressure or as a pressure range. How a tire performs under different terrain or weather conditions depends largely on tire pressure. Inflation the tire to near its maximum recommended pressure gives the lowest rolling resistance; but also produces the harshest ride. High pressures work best on smooth, dry pavement.
  • Page 24: Maintenance & Repair

    Maintenance & Repair Correct routine maintenance of your new bike will ensure a longer life for your bike and a safer ride for you. Every time you ride your bike, its condition changes. The more you ride, the more frequently maintenance will be required. We recommend you spend a little time on regular maintenance tasks.
  • Page 25 Note: The frequency of maintenance should increase with use in wet or dusty conditions. Do not over lubricate-remove excess bubricant to prevent dirt build up. Never use a degreaser to lubricate your chain (WD-40T™) Schedule2 - Service Checklist NOTE: Many instructions for adjustments can be found in the assembly portion of this manual.
  • Page 26 1 Yearly NOTE: OWNERS ARE RESPONSIBLE FOR ALL MAINTENANCE AND SERVICE OF THE BICYCLE. FAILURE TO DO SO MAY VOID YOUR WARRANTY, CAUSE DAMAGE TO YOUR GOTRAX OR ITS COMPONENTS, AND MAY CAUSE AN ACCIDENT.
  • Page 27: E-Bike Console Functions

    E-Bike Console Functions Power on/off button Gear "+ key", light key Gear indicator Gear "_" key, booster key Power indicator Power on and off: Press the power button for 2-3 seconds to power on. In the power-on state, press and hold for 2-3 seconds to power off. The bike will automatically shut down after 10 minutes of inactivity.
  • Page 28 Gear switching: There are five gears in total. The default is 0 when the machine is turned on, and there is no power output. Press the gear "+" or gear "-" button to adjust the gear up or down. (Power output will only be available when there is a gear state.) Boost mode: When the power is on, press and hold the boost button for 2-3 seconds to activate the boost mode, the scooter will travel at an even speed of 6km/h (3.7mph).
  • Page 29: Function Mode

    Function Mode: 1. Three Riding Modes: Electric Assisted Mode, Pedal-Assisted Mode, Bicycle Mode. 2. Throttle Assisted Mode: When you turn the bike on, the assist level will be at 0. Press the up arrow ( ) on the controller to increase the level of assist, use the down arrow ( )to reduce the level of assist.
  • Page 30: How To Use The Transmission

    How To Use The Transmission adjust the riding speed. This operation is prohibited in the static state or non-pedal riding state)
  • Page 31: Battery Information

    Battery Information Before using the charger locate the voltage selector switch (li-ion chargers only) on the back of the charger. Select either 115 volts or 230 volts depending on your country of residence. Using the wrong voltage setting will permanenty damage the charger and/or electrical components on the hybrid electric bicycle.
  • Page 32 PRECAUTIONS FOR BATTERY PROTECTION 1. Do not place anything on the battery and charger when charging, otherwise the charger may overheat and cause serious damage. 2. Only use the charger supplied by the original factory to charge the battery, if you use a different charger your battery will be disqualified from warranty.
  • Page 33: Troubleshooting Guidance

    Troubleshooting Guidance When the E-bike electric control system fails, the display will show the error codes, and only when the fault is removed can you exit the fault display program. After the fault occurs, the E-bikes can't able to continue working. Error Codes Error Information Common Problems...
  • Page 34: Warranty

    Warranty Please contact our customer service team if you are experiencing problems or need more detailed information. support@gotrax.com US team after-sales email: canada@gotrax.com CA team after-sales email: 1. Users should operate in accordance with the product manual. In case of any...
  • Page 35 (US) W W W .G OT R A X . C O M ( C A ) w w w . g o t r a x c a n a d a . c o m #RideGOTRAX...
  • Page 36 (US)GOLABS,INC GOTRAX.com 2201 Luna Rd. Carrollton,TX 75006 (CA)Tao Motor Canada Inc. 170 Bartor Road, Unit 1 North York, Ontario M9M 2W6, Canada.
