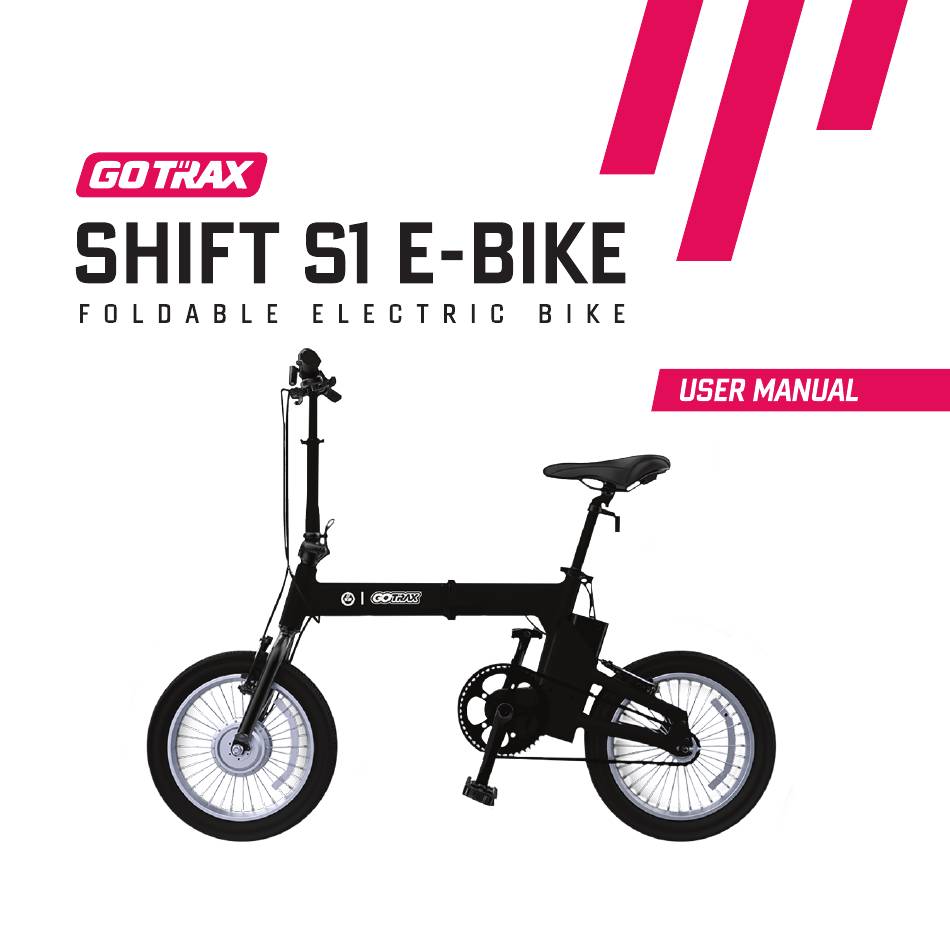

Page 2: Congratulations On Your Purchase
CONGRATULATIONS ON YOUR PURCHASE! - Page 3 This user manual will help you assemble and operate your new electric bike. Be sure to read ALL OF THE INFORMATION in this manual before riding. NOTE TO ALL RIDERS UNDER 18 YEARS OF AGE: It’s very important that you get parental permission before riding your electric bike.
- Page 4 DON’T RIDE UNTIL YOU READ THIS: ALWAYS wear a helmet when riding your electric bike. Make sure your electric bike has a full battery before taking it out to ride. Always be aware of local road laws, and follow them. Do not ride the electric bike under the influence of drugs or alcohol.
-
Page 5: Warning Message
2. Abuse - We do not cover physical damage due to negligent care and extreme riding. 3. Whenever you ride the GOTRAX Electric Bike, you risk severe injury or even death from loss of control, collisions, and falls. Use caution and ride at your own risk. - Page 6 You should find each of these items in your S1 E-Bike box : 1. Electric Bike 2. G2 Console & Handlebars 2. Approved Power Adapter / Charging Unit 3. Gotrax Approved Power Adapter / Charging Unit 3. 1- 5mm Allen Wrench 1. S1 E-Bike 4. Allen wrench 4.
-
Page 7: Get To Know

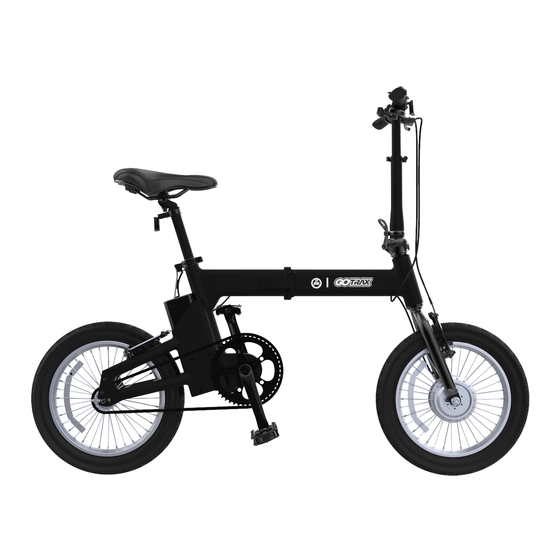

GET TO KNOW YOUR ELECTRIC BIKE GET TO KNOW YOUR ELECTRIC BIKE Throttle Handle Handlebar Handle Brake Seat Tiller Seat Post Tiller Fliplock Safety Lock Seat Post Clamp Battery Front Brake Front Wheel Motor The electric bike comes partially assembled. - Page 8 ASSEMBLE YOUR ELECTRIC BIKE Step 1 Hold the bike and unfold the front frame. Step 2 You will hear a click once the frame is unfolded. Lock the clamp and turn the clamp to the left to tighten.
- Page 9 INSTALL THE TILLER & HANDLEBARS Use the 5mm Allen Wrench to loosen Take out the sleeve. the screw and the fixed cover. Insert the tiller into the head tube, use Use the 5mm Allen wrench to tighten the screw and the fixed cover to lock it. it into place.
- Page 10 Hold the tiller fliplock to the upright Turn the top of the tiller fliplock position to ensure the tiller is locked upward and turn the safety lock into position. counterclockwise until the fold is locked.
- Page 11 ADJUST THE HANDLEBAR ANGLE Handlebar Adjustent Adjust the handlebar to the proper angle, use the 6mm Allen Wrench to lock the screw as the figure shows. ADJUST THE TILLER HEIGHT Tiller Height Loosen the tiller clamp, adjust the riller height properly. Lock the clamp to tighten the tiller in plcae.
-
Page 12: Install Pedals
ADJUST THE SEAT HEIGHT Seat Adjustent Loosen the seat post clamp, adjust the seat properly, lock the clamp to tighten the seat in place. (see figure) INSTALL PEDALS Pedal Installation Use the 15mm spanner to mount the pedals. Notice: Turn the left pedal counterclockwise to tighten;... - Page 13 CHARGE YOUR CHARGE YOUR ELECTRIC BIKE ELECTRIC BIKE Before using the electric bike, you must fully charge the battery. Before using the E-Bike, you must fully charge the battery.
- Page 14 1. Check Battery Level: Press the power 1. Check Battery Level: Press the display button quickly, The charge position power display button quickly, The is on the back side of the bike as shown in charge position is on the back side of the picture.
- Page 15 SCOOTER CONSOLE FUNCTIONS ELECTRIC BIKE FUNCTIONS • The entire controller includes four parts: motor control panel, head dis- play board, headlight, and taillight. • The entire controller includes four parts: motor control panel, • All operating experience is done by the three buttons on the board. head display board, headlight, and taillight.
- Page 16 •The function of the + & - button: › The electric bike has 3 gears. » Press the + button to go up in gear. » Press the - button to go down in gear. › 1st Gear - 11 MPH ›...
-
Page 17: Riding Tips
RIDING TIPS 1. You will want to start riding your electric bike with one foot on the pedal and one foot on the ground. Use your foot on the ground to push off and at the same time, press the throttle button to begin movement. 2. -
Page 18: Maintenance And Repair
MAINTENANCE & REPAIR If you regularly clean and maintain your electric bike, it will extend its life. Cleaning and storage: If the electric bike is dirty, wipe it clean with a soft damp cloth. Brake Adjustments & Service: If you notice you need brake adjustments or any service on your electric bike, contact our customer service team and we will adjust and repair your electric bike. - Page 19 DO NOT use alcohol, gasoline, kerosene, or other corrosive chemical solvents to clean the electric bike. It can severely damage the appearance and structure of the electric bike. Please do not use a pressure washer as it may also cause damage to the electronics. Storage: When you’re not using your electric bike store in a dry and cool location.
-
Page 20: Battery Information
BATTERY INFORMATION Only use the approved Gotrax power adapter to charge your electric bike, others may cause risk of fire & equipment may be damaged. Improper disposal of used batteries may seriously pollute the environment. Please comply with local disposal regulations. -
Page 21: Troubleshooting
TROUBLESHOOTING We frequently update our user manuals at gotrax.com, and reserve the rights to update and change manuals online. Please contact our customer service team if you are experiencing problems or need more detailed information. They can be reached at gotrax.com WARRANTY This electric bike is covered by a 90-day manufacturer’s warranty that... - Page 23 W W W . G O T R A X . C O M #RIDEGOTRAX...
- Page 24 GOLABS, INC GoTrax.com 2201 Luna Rd. Carrollton, TX 75006...
