- Page 1 EBE 4 E L E C T R I C B I K E USER MANUAL...
-
Page 3: Congratulations On Your Purchase
Congratulations on your purchase! This user manual will help you assemble and operate your new electric scooter. Be sure to read ALL OF THE INFORMATION in this manual before riding. NOTE TO ALL RIDERS UNDER 18 YEARS OF AGE: It’s very important that you get parental permission before riding your electric scooter. - Page 4 Don’t Ride Until You Read This: ALWAYS wear a helmet when riding your electric bike. Make sure your electric bike has a full battery before taking it out to ride. Always be aware of local road laws, and follow them. Do not ride the bike under the influence of drugs or alcohol.
-
Page 5: Warning Message
Abuse - We do not cover physical damage due to negligent care and extreme riding. Whenever you ride the GOTRAX Electric Bike, you risk severe injury or even death from loss of control, collisions, and falls. Use caution and ride at your own risk. - Page 6 13. Never exceed the 264 lb (120 kg) maximum load rating. 14. The electric bike should never be used by children under the age of 16. 15. Maximum Speed - Your electric bike goes the maximum speed of 20 mph. 16.
- Page 7 You should find each of these items in your box: ELECTRIC BIKE TOOLS: (1) LARGE WRENCH, (3) BATTERY CHARGER ALLEN WRENCHES, (1) SCREWDRIVER ITEM SPECIFICATIONS Model EBE4 Unfolded Dimensions 173x58x120 (cm) Folded Dimensions 94x53x78 (cm) Package Dimensions 141x28x67 (cm) Max Load 264 lbs (120 kg) Package Weight...

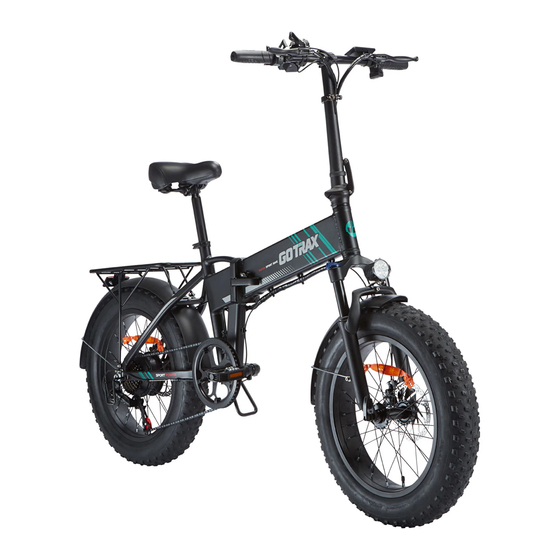

- Page 8 Get To Know Your E-Bike LCD Display Stem Saddle Seat Post Front Light Suspension Front Fork Removable Battery Crankset Wheel Chain Pedal Disc Brake Tire Motor...
- Page 9 Folding the Electric Bike Adjust the saddle tube and crank, loosen the saddle tube clamp with quick release. Insert the saddle tube down to the bottom and lock the saddle tube clamp with quick release. Adjust the crank angle to 9 o’clock and fold the pedals at the same time.
- Page 10 Adjust Handlebar and Standpipes Open the folder of Fold handlebars to the left When installing the stem, standpipe make sure handlebars are properly aligned and tightened Fold the handlebars Open the folder of the After adjusting the handle, perpendicular to the handlebar and adjust lock the folder and finish ground...
- Page 11 Mounting Pedal This bike provides convenient Take wrench from the toolbox accessories, please check the L and R marks on the pedals R means it should be installed on the Tighten the nut counterclockwise right side, L means it should be installed on the left side...
-
Page 12: Removing The Battery
Adjust saddle and seat tube Push the saddle Open the folding Adjust and rotate Lock the folding down mechanism on the the seat mechanism seat tube Removing the battery Open the folding Loosen the folder Insert the key to Remove the battery mechanism the battery lock... - Page 13 Charge Your E-Bike: Method 1 Before using the electric bike, you must fully charge the battery. Charging Port 1. Locate the charging port on the left side of the frame near the folding mechanism 2. Plug the charger into a power supply 3.
- Page 14 Charge Your E-Bike: Method 2 Remove the battery charger from the e-bike (as detailed on page 11) Locate the charging port near the top of the battery. A red light indicates the battery is charging, green indicates the battery is full...
- Page 15 E-Bike Console Functions Casing Material: ABS Display Material: High hardness acrylic (the same hardness value as tempered glass) Display Includes: Speed, battery, error indication and mileage Control and Settings: Power switch, wheel diameter, idle time for auto-hibernation, back light brightness setting, start mode setting, drive mode setting, voltage level setting, controller current limit setting Communications Protocol: UART...
- Page 16 Max Speed/Average Speed Light Strong Power Mode Multi-function: • Total Mileage Battery Level • Trip Mileage • Error Code • Power (WATT) • Maintenance 6 KM/H Booster Assist Constant Speed Service Electric Assisted Mode Battery LED Brake Indicator Controller Failure Motor Failure Throttle Failure...
- Page 17 OVERVIEW OF KEYS Long press "M" to turn on the panel. Short press "M" to switch the interface in ODO/ TRIP/VOL/CUR/TIME mode when the panel is on. Long press "M" to turn off the panel when it's on. Short press the up key + to increase the PAS level, short press the down key - to decrease the PAS level.
-
Page 18: Troubleshooting & Warranty
Troubleshooting & Warranty We frequently update our user manuals at GOTRAX.com, and reserve the rights to update and change manuals online. Please contact our customer service team if you are experiencing problems or need more detailed information. They can be reached at GOTRAX.com Users should operate in accordance with the product manual. - Page 19 W W W . G O T R A X . C O M #RideGOTRAX LOTDM200 (EO4) | EN15194 | FCC-PART15 This product has passed the CE certification...
- Page 20 GOLABS, INC GOTRAX.com 2201 Luna Rd. Carrollton, TX 75006...
