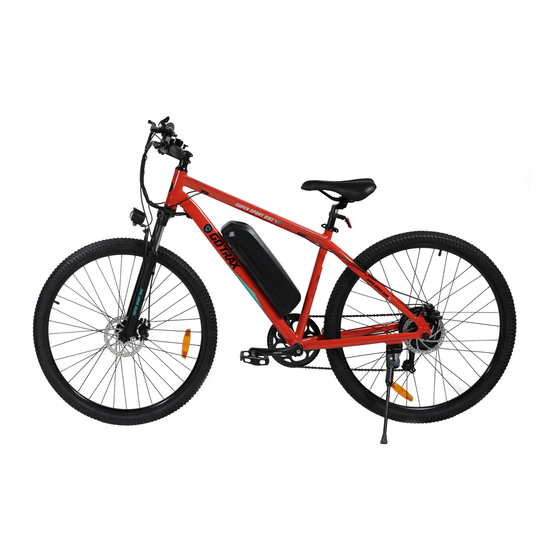

Summary of Contents for Gotrax TRAVELER

  • Page 16 LED Console S810 User Manual V.2014 Model: 810-C Operating Voltage: DC24V / DC36V / DC48V Functions: Power Switch (Electric On/Off) Battery Level Indicators Three-Gear Motor Power Control Light Switch Auto-Hibernation after 10min Standby...
  • Page 17 1. Exterior Parameters Shell Material: ABS Working Temperature: -20 ℃ -60 ℃ with guaranteed mechanical performance. ON/OFF LIGHT LOW MED HIGH MODE Front View Side View Side View of the Supporter Ring 2. User Instructions...
  • Page 18 Connections: 1. Connect the red wire to the positive. 2. Connect the black wire to the negative. 3. Connect the blue wire to the controller of the electric on/off switch. 4. Connect the green wire to the controller of the motor power output control wire.
  • Page 20 4. Light Control Power on the console and press the light button , the yellow wire will give a positive voltage output (power input) and the light indicator will be on. When pressing the light button for the second time, the voltage output of the yellow wire will be cut off and the light indicator will be off.
