  • Page 1 Xr Elite E L E C T R I C S C O O T E R USER MANUAL...
  • Page 2 Congratulations on your purchase!
  • Page 3 This user manual will help you assemble and operate your new Electric Scooter. Be sure to read ALL OF THE INFORMATION in this manual before riding. NOTE TO ALL RIDERS UNDER 18 YEARS OF AGE: It’s very important that you get parental permission before riding your electric scooter.
  • Page 4 Don’t ride until you read this ALWAYS wear a helmet when riding your Electric Scooter. Make sure your scooter has a full battery before taking it out to ride. Always be aware of local road laws, and follow them. Do not ride the scooter under the influence of drugs or alcohol. Always respect pedestrians.

  • Page 5: Warning Message

    2. Abuse - We do not cover physical damage due to negligent care and extreme riding. 3. Whenever you ride the GOTRAX electric scooter, you risk severe injury or even death from loss of control, collisions, and falls. Use caution and ride at your own risk.
  • Page 6 8. Before riding - be sure that any and all axle guards, chain guards, or other covers or guards supplied by the manufacturer are in place and in serviceable condition. 9. Before riding - be sure to check that the tires are in good condition, inflated properly, and have sufficient tread remaining.
  • Page 7 Unpack You should find each of these items in your box: 1. Electric Scooter 2. Console & Handlebars 3. Approved Power Adapter / Charging Unit 4. 4mm Allen Wrench 5. Tire Gauge Pipe 6. Screws (x2) Remove all packaging material, then inspect each item for any accidental damage that may have occurred during shipping.

  • Page 8: Specifications

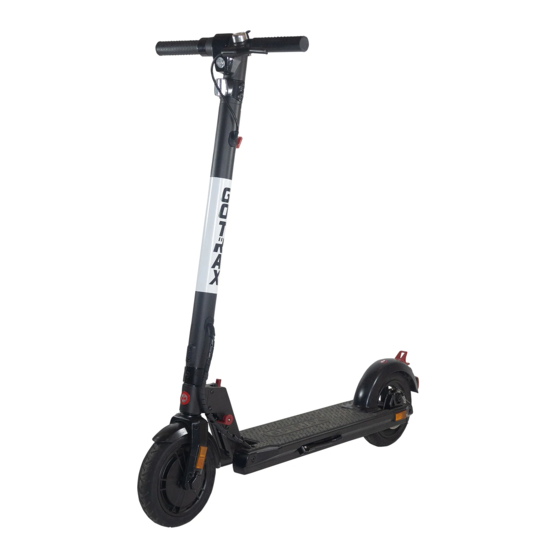

    Get to know your scooter The electric scooter comes partially assembled. Accelerator Handle Brake Console Charger Port Headlight Hook Battery Pipe Folding System Hub Motor Fender Buckle Kickstand Disc Brake Rear Reflector Specifications Top Speed: 15.5mph Distance per Charge: 18 Miles Weight Range Up To: 220lbs Battery Type:...
  • Page 9 Assemble Your Scooter TOOLS YOU’LL NEED: 4 mm Allen Key Wrench (included). Press down on the rear fender, separate the Use an Allen wrench to loosen the screws located folding hook and fender buckle, then lift the tiller at the hook and detach. Once you’ve removed the upright (as shown in the figure).
  • Page 10 Grab the red cord and hook and bring it back behind the tiller and reattach the hook to the back of the tiller using the screws and an Allen wrench. ( The red cord should go around the tiller.)

  • Page 11: Charge Your Scooter

    Charge Your Scooter Before using the scooter, you must fully charge the battery. 1. Open the rubber charging port cover. 2. Insert the charging plug into the port. 3. The charger box will have a green light when fully charged and a red light when charging. 4.
  • Page 12 Scooter Console Functions • To power the scooter on, press and hold the red button for 1 second. • To power the scooter off, press and hold the red button for 5 seconds. • To power the headlight on or off, press the red button for 1 second while the scooter is powered on.

  • Page 13: Riding Tips

    Riding Tips 1. You will want to start riding your electric scooter with one foot on the platform and one foot on the ground. Use your foot on the ground to push off and at the same time, press the throttle button to begin movement.
  • Page 14 Putting Your Scooter Away/Folding Before folding the scooter, make sure that the scooter is powered off. Folding: Ensure the electric scooter is powered off, hold the tiller and pull out the spring pin on the right folding panel then rotate the spring pin counterclockwise.

  • Page 15: Maintenance And Repair

    Maintenance & Repair If you regularly clean and maintain your electric scooter, it will extend its life. Cleaning and storage: If the scooter is dirty, wipe it clean with a soft damp cloth. Brake Adjustments & Service: If you notice you need brake adjustments or any service on your scooter, contact our customer service team and we will adjust and repair your scooter.
  • Page 16 Tightening the Tiller: If you notice that the tiller is loose or wiggles while riding, you can tighten the screws. Open the plastic cover, and use the Allen wrench to tighten the screws as shown in the figure below. Adjusting the Disc Brake: If the disc brake is too tight, use the 4MM Allen wrench to loosen the screws counterclockwise.

  • Page 17: Battery Information

    Battery Information Only use the approved GOTRAX power adapter to charge your scooter, others may cause risk of fire & equipment may be damaged. Improper disposal of used batteries may seriously pollute the environment. Please comply with local disposal regulations.

  • Page 18: Troubleshooting

    Troubleshooting We frequently update our user manuals at GOTRAX.com, and reserve the rights to update and change manuals online. Please contact our customer service team if you are experiencing problems or need more detailed information. They can be reached at GOTRAX.com Warranty For warranty information, please visit GOTRAX.com.
  • Page 19 W W W . G O T R A X . C O M #RideGOTRAX...
  • Page 20 GOLABS, INC GOTRAX.com 2201 Luna Rd. Carrollton, TX 75006...
