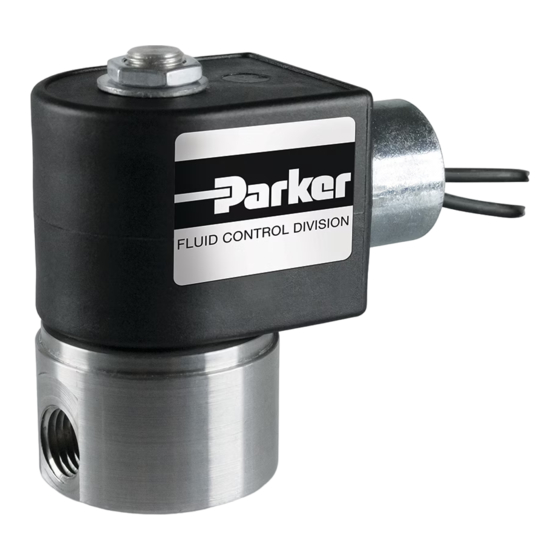

Parker 71215 Installation, Operating, & Maintenance Instructions

Fluid Control Division
Parker Hannifin Corporation
95 Edgewood Avenue
New Britain, CT 06051
Telephone (860) 827-2300
This document is intended for use as a complementary resource to the
User Safety Responsibility Statements located in product literature and
posted to www.parker.com/safety.
WARNING
FAILURE OR IMPROPER SELECTION OR
IMPROPER USE OF THE PRODUCTS
AND/OR SYSTEMS DESCRIBED HEREIN
OR RELATED ITEMS ("Products") COULD
CAUSE DEATH, PERSONAL INJURY AND
PROPERTY DAMAGE.
Possible consequences of failure or improper selection, or improper use
of these Products include, but are not limited to:
Unintended or mistimed cycling or motion of machine
•
members or failure to cycle
Work piece or component parts being thrown off at high
•
speeds
• Failure of a device to function properly, for example,
failure to clamp or unclamp an associated item or device
• Explosion
Sudden moving or falling objects
•
• Release of toxic or otherwise injurious liquids or gases
Electrical shorts or burn out of equipment
•
Before selecting or using any of these Products, it is important that you
read and follow the subsequent instructions.
This document and other information from Parker Hannifin Corporation,
its subsidiaries, and authorized distributors provide Product and/or
system options for further investigation by users having technical
expertise. It is important that you analyze all aspects of the application,
follow applicable industry standards, and follow the information
concerning the Product in the current Product literature and in any other
materials provided from Parker or its subsidiaries or authorized
distributors. Due to the variety of operating conditions and applications
for these Products or systems, the user, through its own analysis and
testing, is solely responsible for making the final selection of the system
and components and assuring that all performance, endurance,
maintenance, safety, and warning requirements of the application are
met.
INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
2-WAY N.C., N.O., AND D. P. SOLENOID VALVE
1/8", 1/4", AND 3/8" NPT
VALVE TYPES: 71215, 71216, 7121V, 71295, 71235
IOM7206
Rev(0324)
To the extent that Parker, or its subsidiaries, or authorized distributors provide
component or system options based upon data or specifications provided by the
user, the user is responsible for determining that such data and specifications
are suitable and sufficient for all applications and reasonably foreseeable uses
of the components or systems.
The Products described herein, including without limitation, Product features,
specifications, designs, availability and pricing, are subject to change by Parker
Hannifin Corporation and its subsidiaries at any time without notice. Do not, at
any time, make alterations or modifications to any Product without the express
and written approval of Parker Fluid Control Division. Do not, at any time, make
alterations or modifications to any Product without the express and written
approval of Parker Fluid Control Division.
Page 1
