Dual Gas Powered Suction
Stop Valve
Product Bulletin 50-25 E
Type: CK-6D
Purpose:
The CK-6D from Parker is an
economical solution to evaporator
equalization following a defrost cycle.
Combining equalizing and suction
stop functions reduces installation
costs.
This valve incorporates a pressure
pilot, built-in mechanical fail-
safe feature which prevents the
undesirable effects of an immediate
opening of the valve in the event of
an electrical power failure while the
evaporator is in defrost.
CK-6D is typically used for low
temperature applications in overfeed
or flooded systems, in wet return
lines, and on the liquid and gas
return legs of flooded evaporators.
Contact Information:
Parker Hannifin Corporation
Sporlan Division –
Refrigeration Business Unit
2445 South 25th. Avenue
Broadview, IL 60155-3891
phone (708) 681-6300
fax (708) 681-6306
www.parker.com/rs
rsd_orders@parker.com

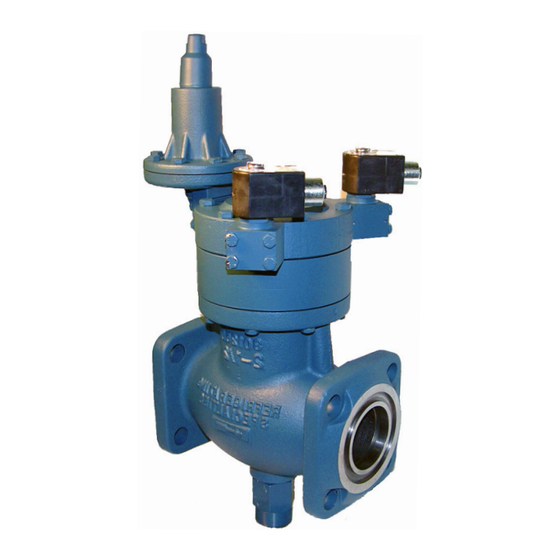

CK-6D with S6A Pilots
Product Features:
•
Suitable for Ammonia, R-22,
R-134a, R-404A, R-410A, R-507,
and Other Common Refrigerants
•
Economical Solution to
Evaporator Equalization after
Defrost
•
Normally Open
•
Low Pressure Drop
•
Manual Opening Stem
•
Port Sizes: 40 to 100 mm
(1-5/8 to 4")
•
Use in Vertical or Horizontal Lines
•
Temperature Range: -51 to
104°C (-60 to 220°F)
•
Maximum Rated Pressure
(MRP): 28 barg (406 psig)
•
Heavy Return Spring
•
Minimum Pressure Drop to
Close: 0.35 bar (5 psi)
