Management Ethernet Port Cable Connection - Cisco ASR1002 - ASR 1002 Router Quick Start Manual

Both the console and the auxiliary ports are asynchronous serial ports; any devices connected to these ports must
Caution
be capable of asynchronous transmission. (Asynchronous is the most common type of serial device; for example,
most modems are asynchronous devices.) To meet Class A emissions requirements on the Cisco ASR 1002-F Router,
shielded cables must be used for the console and auxiliary port connections.
Step 1 Before connecting a terminal to the console port, configure the terminal to match the router console port as follows:
9600 baud, 8 data bits, no parity, 1 stop bits. See
Connect to the port using the RJ-45-to-DB-9 cable.
Step 2

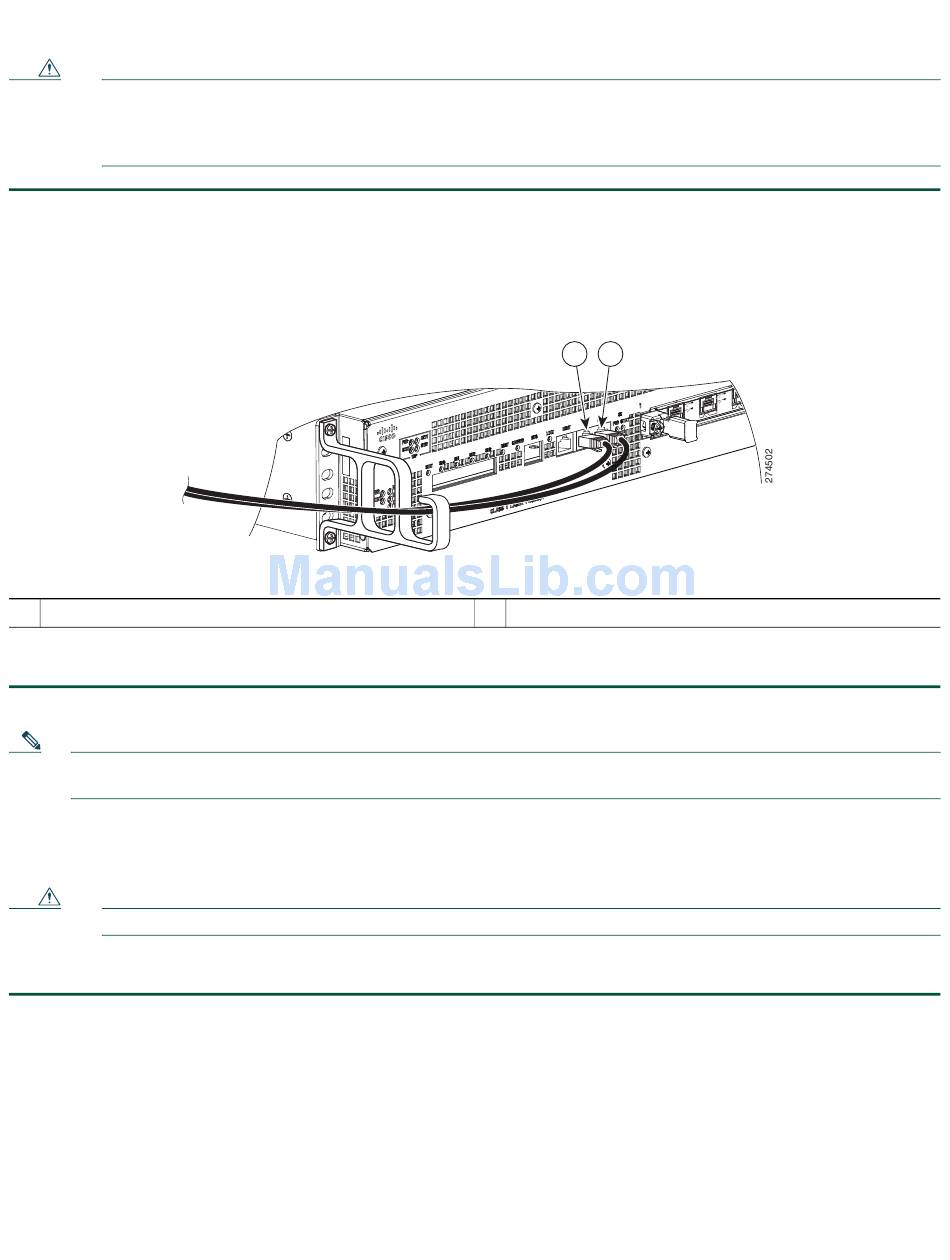

Figure 9 Cisco ASR 1002-F Integrated Route Processor Console and Auxiliary Port Connectors
1 CON—console port
After you establish normal router operation, you can disconnect the console terminal.
Step 3
For console and auxiliary port pinouts, see the Cisco ASR 1002-F Router specifications in
Note
Aggregation Services Routers Hardware Installation

Management Ethernet Port Cable Connection

Caution To comply with Class A emissions requirements, a shielded Ethernet cable must be used.
To use the Management Ethernet interface on the router, perform the following steps:
Insert an Ethernet RJ-45 cable into the MGMT ETHERNET port (see
Step 1
12
Figure 9 for console and auxiliary port connector location.
1
0
2 AUX—auxiliary port
Guide.
Figure
2
Cisco ASR 1000 Series
10).
