Warning This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if
you are uncertain that suitable grounding is available. Statement 1024
Warning This unit has power supply connections. All connections must be removed to de-energize the unit. Statement 1028
Warning This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the
protective device is rated not greater than: AC power supplies 20 A and DC power supplies 30 A for Cisco ASR
1002-F Routers. Statement 1005

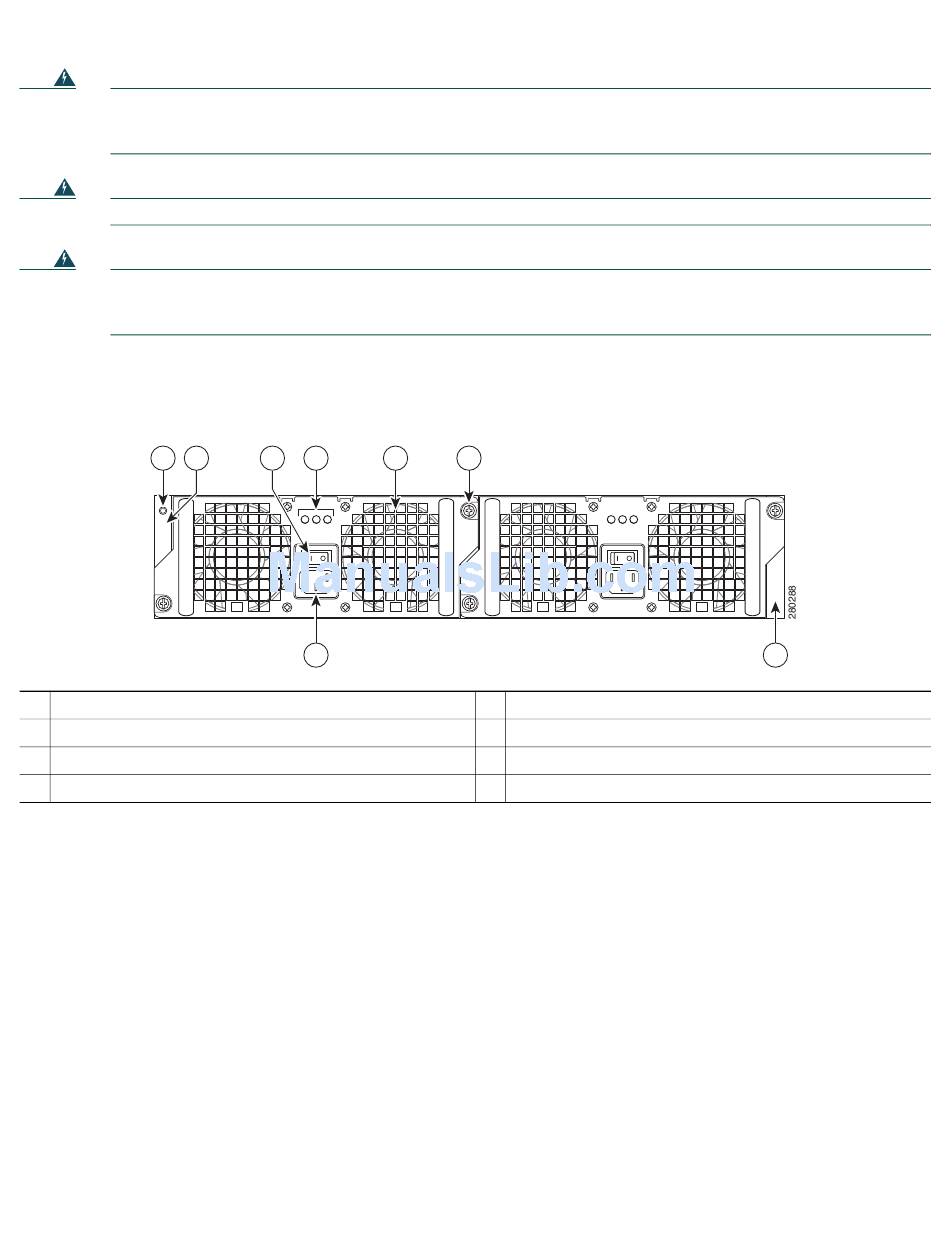

Figure 13 shows the AC power supply for the Cisco ASR 1002-F Router.
Figure 13 AC Power Supply for the Cisco ASR 1002-F Router
1 2
0
Chassis ESD socket
1
2 AC power supply slot 0 label
3 AC power supply On (|) /Off (O) switch
AC power supply LEDs
4
16
3 4 5
OUTPUT INPUT FAN
FAIL OK OK
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
8
6
OUTPUT INPUT FAN
FAIL OK OK
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
Fan
5
6 Captive installation screw
7 AC power supply slot 1 label
AC power inlet
8
1
7
