- Page 1 How to Connect HID Card Reader with Access Controller via Wiegand...

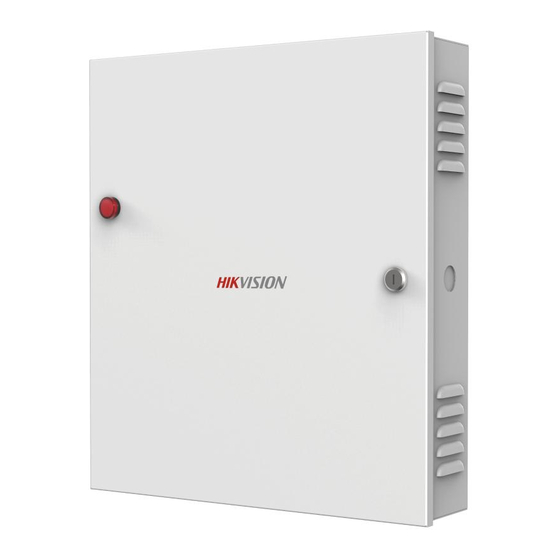

- Page 2 Title: How to Connect HID Card Reader with Access Version: v1.0 Date: 12/19/2023 Controller via Wiegand Product: HID card reader, Access Controller Page: 1 of 15 Preparation 1. Access controller(DS-K2604T in this document) 2. HID card reader(Signo 20K in this document) 3.
- Page 3 Manual Name • Manual Type 1) Connect Wiegand cable from card reader to controller VCC(RED) GND(BLACK) HID Signo DS-K2604 D1(WHITE) D0(GREEN) RED LED(BROWN) GREEN LED(ORANGE) BEEP(YELLOW Note: Different model of HID card readers may have different colors for Wiegand cable, please check label on card reader before connect cable.
- Page 4 Manual Name • Manual Type Note: Different model of HID card readers may have different Wiegand protocol, please check protocol type such as total length, parity type, start bit, length and decimal digits before configuration. Open ‘ HID Reader Manager’, scan for readers or use NFC to detect parameters of card reader.
-
Page 5: Operation
Manual Name • Manual Type Note: iPhone cannot use NFC to detect card reader on HID Reader Manager 3. Operation 1) Enroll card Go to person module of Hikcentral Access Control. Click configuration to choose OSDP reader to enroll card. Click add and swipe card on OSDP reader, card No will be displayed. - Page 6 Manual Name • Manual Type 2) Assign access level Go to Access Control module, set access level and assign access level to the person registered, the person can swipe card to open door...
- Page 7 Manual Name • Manual Type Appendix 1. If it does not work after above settings, please contact technical support and provide model name of card reader, card type, and Hikvision device model name for troubleshooting. Wiegand protocol should be provided as well...
