Summary of Contents for HIKVISION DS-KD-MFB Series

  • Page 1 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual...
  • Page 2 ● Products described in this Document, which may include licenses obtained from third parties. Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part ● of this Document may be excerpted, copied, translated, or modified in whole or in part by any means without written permission.
  • Page 3 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY ● RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS;...
  • Page 4 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 5 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Safety Instruction Warning All the electronic operation should be strictly compliance with the electrical safety regulations, ● fire prevention regulations and other related regulations in your local region. Please use the power adapter, which is provided by normal company. The power consumption ●...
  • Page 6 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Improper use or replacement of the battery may result in hazard of explosion. Replace with the ● same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.
  • Page 7 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Regulatory Information EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
  • Page 8 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité...
  • Page 9 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual About this Manual Get the manual and related software from or the official website (http://www.hikvision.com). Product Model Module Door Station (Sub Module) DS-KD-MFB Module Door Station (Sub Module) DS-KD-MFB/S viii...

  • Page 10: Table Of Contents

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Contents Chapter 1 Appearance ........................ 1 Chapter 2 Configuration Flow of the Fingerprint & Card Reader Module ........2 Chapter 3 Configure Sub Module Address ................... 3 Chapter 4 Terminal and Wiring ....................5 4.1 Terminals ..........................

  • Page 11: Chapter 1 Appearance

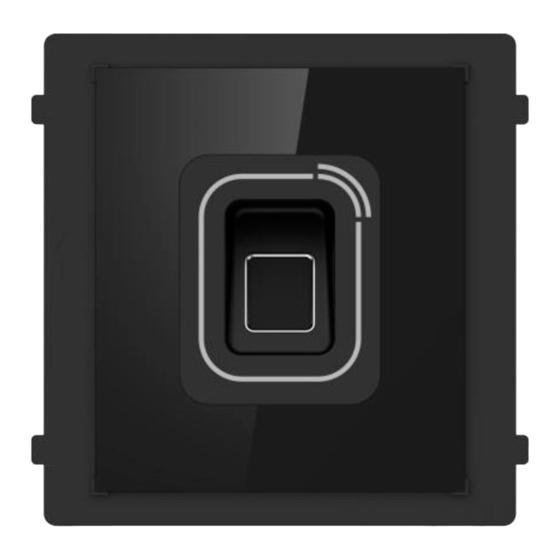

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Chapter 1 Appearance Fingerprint&Card Reader Module Figure 1-1 Fingerprint&Card Reader Module Appearance Note The pictures here are for reference only. ● RS-485 interfaces are for module-connecting. ● The debugging port is for debugging use only.

  • Page 12: Chapter 2 Configuration Flow Of The Fingerprint & Card Reader Module

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Chapter 2 Configuration Flow of the Fingerprint & Card Reader Module You can configure the fingerprint & card reader module through the following flow. Table 2-1 Configuration Flow of the Fingerprint & Card Reader Module...

  • Page 13: Chapter 3 Configure Sub Module Address

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Chapter 3 Configure Sub Module Address You need to set the sub module address via DIP switch before installation. Steps 1. Remove the rubber cover on the rear panel of the sub module to expose the DIP switch.
  • Page 14 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual DIP 1 DIP 2 DIP 3 DIP 4 DIP 5 DIP 6 DIP 7 DIP 8 Module Address Module 7 Module 8...

  • Page 15: Chapter 4 Terminal And Wiring

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Chapter 4 Terminal and Wiring 4.1 Terminals Figure 4-1 RS-485 Module-Connecting Interfaces 4.2 Module Door Station Wiring 4.2.1 Wiring with the Main Unit The fingerprint & card reader module can connect to IP module door station (main unit) and Two- Wire module door station via RS-485 module-connecting interfaces.
  • Page 16 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Wiring with IP Module Door Station Figure 4-2 Wiring with IP Module Door Station Wiring with Two-Wire Module Door Station Figure 4-3 Wiring with Two-Wire Module Door Station...

  • Page 17: Chapter 5 Installation

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Chapter 5 Installation Note The sub module supports two-module and three-module installation. Here takes three-module ● installation as an example, the two-module installation shares the same approach as the three module installation.

  • Page 18: Surface Mounting

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual 5.1 Surface Mounting Before You Start Figure 5-1 Mounting Frame Note The suggested depth of the installation hole is 33 mm. ● The dimensions above are for reference only. The actual size can be slightly different from the ●...
  • Page 19 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Figure 5-2 Stick the Sticker 2. Drill 4 holes of 25 mm deep according to the marks on the sticker and insert the expansion sleeves into the screw holes. Remove the mounting sticker and fix the mounting frame to the...
  • Page 20 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Figure 5-3 Fix the Mounting Frame 3. Thread the module-connecting line across the thread holes of the frame.
  • Page 21 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Figure 5-4 Thread the Module-Connecting Line 4. Pass the main unit connecting line across the thread hole to the top grid and connect the cables. Insert the modules into the frame after wiring. The main unit must be placed in the top grid.
  • Page 22 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Figure 5-5 Fix Modules to the Frame 5. Apply silicone sealant among the cable wiring area to keep the raindrop from entering.
  • Page 23 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Figure 5-6 Apply Silicone Sealant 6. Use the hexagon wrench in the package to fix the cover onto the frame.
  • Page 24 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Figure 5-7 Fix the Cover...

  • Page 25: Flush Mounting

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual 5.2 Flush Mounting Before You Start Figure 5-8 Mounting Box Note The dimensions above are for reference only. The actual size can be slightly different from the theoretical dimension. Steps 1. Stick the mounting sticker to the wall and cave the installation hole according to the sticker. Pull the cable out.
  • Page 26 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Figure 5-9 Drill the Installation Hole 2. Fix the mounting box to the installation with 4 expansion bolts. Remove the positioning piece of the mounting box.
  • Page 27 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Figure 5-10 Fix the Mounting Box 3. Connect cables of the main unit and other modules and insert the modules to the mounting box. Note Apply silicone sealant on the top and sides of the mounting box. Do not apply silicone sealant on...
  • Page 28 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Figure 5-11 Fix Modules to the Mounting Box 4. Fix the cover with 2 socket head cap screws by using a hexagon wrench.
  • Page 29 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Figure 5-12 Fix the Cover...

  • Page 30: Chapter 6 Issue Card

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Chapter 6 Issue Card You can issue card via main card or via Web client of the main unit. Note M1 card and DESFire card are supported. ● If the amount of sub cards exceeds 6000, no more sub cards can be issued.

  • Page 31: Chapter 7 Add Fingerprint

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Chapter 7 Add Fingerprint You can add fingerprint information via Web client of the main unit. Note Up to 1,000 fingerprints can be added. Add Fingerprint via Web Client For more information about adding fingerprint via Web client, please refer to: Web 4.0: Person Management...

  • Page 32: Chapter 8 Configuration And Operation

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Chapter 8 Configuration and Operation You can configure the sub module via the Web Client and Client Software of the main unit. 8.1 Configuration via Web Client of the Main Unit 8.1.1 Configuration via Web 4.0...
  • Page 33 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Figure 8-1 Add User Add Basic Information Add the person's basic information, including Employee ID, Name, Floor No. and Room No. . You also need to select the User Role. Click OK to save the settings.

  • Page 34: Configuration Via Pc Web 5.0 Or Mobile Web

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Add Fingerprint Click Add Fingerprint, and press your finger on the fingerprint module to add your fingerprint. Click Complete to save the settings. Set Card Security Click Configuration → General → Card Security to enter the settings page.
  • Page 35 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Steps 1. Connect your mobile devices or PCs to the main unit's hotspot. 2. Enter the user name and the activation password. Click Login. Note The main unit will be activated automatically after powered on. You can check the activation password via the label on the surface of the main unit.
  • Page 36 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Long-Term Effective User Set the user permission as long-term effective. Start Date/End Date Set Start Date and End Date of user permission. Administrator If the user needs to be set as administrator, you can enable Administrator.
  • Page 37 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Add Card Click Person Management → Add to enter the Add Person page. Click Add Card, enter the Card No. and select the Property, and click OK to add the card.
  • Page 38 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual View Sub Module Information via PC Web You can view the information of the sub module via PC Web Client of the main unit. Steps 1. Click Configuration → Intercom → Sub Module Configuration to enter the page.

  • Page 39: Configuration Via Client Software Of The Main Unit

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Fingerprint Security Level Select the fingerprint security level. The higher is the security level, the lower is the false acceptance rate (FAR). The higher is the security level, the higher is the false rejection rate (FRR).
  • Page 40 DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Figure 8-2 Add to the Client...

  • Page 41: Remote Configuration

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Add Device by IP Address Steps 1. Click +Add to pop up the adding devices dialog box. 2. Select IP/Domain as Adding Mode. 3. Enter corresponding information. 4. Click Add. Add Device by IP Segment You can add many devices at once whose IP addresses are among the IP segment.

  • Page 42: Chapter 9 Unlock Door

    DS-KD-MFB Series Fingerprint & Card Reader Module User Manual Chapter 9 Unlock Door You can swipe card or use fingerprint to unlock door. After adding card and fingerprint information to the device via Web client of the main unit, you can swipe card or authenticate via fingerprint to unlock the door.
  • Page 43 UD36214B...
