How to Connect Card Reader to Door
Title:
Station
Product:
Video Intercom Device
How to Connect Card Reader to Door Station
Preparation
Connecting card reader to door station is mainly applied to swiping card to open the door for exiting.

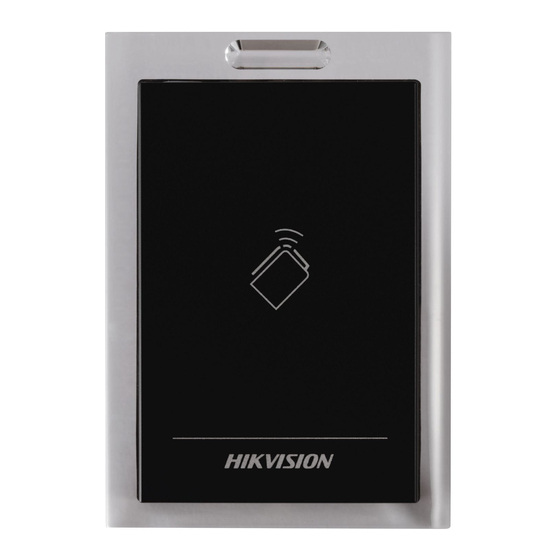

Door station in this document means DS-KD8102-V and DS-KD8002-IM, and card reader in this
document means DS-K1100M series card readers.
In this document, the door station version is V1.4.20/V1.4.22; the iVMS-4200 client version is V2.6.1.6.
Notice
1.
Please cut off power supply before wiring;
2.
Please refer to the following pictures of interfaces of door station, RS485 interface and READER
interface in the following picture are for card reader, so there are two optional ways of wiring;
3.
Please check the rear panel of card reader and unscrew it, you could find DIP switch module;
The No. of DIP switch from left to right is 1~8:
Version:
v1.0
Date:
Page:
1 of 5
5/19/2017
Advertisement
Related Manuals for HIKVISION DS-K1100M Series
Summary of Contents for HIKVISION DS-K1100M Series
- Page 1 Connecting card reader to door station is mainly applied to swiping card to open the door for exiting. Door station in this document means DS-KD8102-V and DS-KD8002-IM, and card reader in this document means DS-K1100M series card readers. In this document, the door station version is V1.4.20/V1.4.22; the iVMS-4200 client version is V2.6.1.6.
- Page 2 How to Connect Card Reader to Door Title: Version: v1.0 Date: 5/19/2017 Station Product: Video Intercom Device Page: 2 of 5 Description of DIP Switch: Icon Description Represent 1 in binary mode Represent 0 in binary mode Description DIP Switch Status 1: 1 Address of RS485 0: 0...
- Page 3 How to Connect Card Reader to Door Title: Version: v1.0 Date: 5/19/2017 Station Product: Video Intercom Device Page: 3 of 5 Step 3: Supply power to door station, and add door station to iVMS-4200 client or Batch Configuration Tool; Step 4: Enter Remote Configuration interface, find System ...
- Page 4 How to Connect Card Reader to Door Title: Version: v1.0 Date: 5/19/2017 Station Product: Video Intercom Device Page: 4 of 5 Mothed 2: Wiegand Wiring Step 1: Please connect card reader to door station as following picture; Step 2: Supply power to door station and issue card on door station or iVMS-4200 client, and test whether card reader works or not;...
- Page 5 How to Connect Card Reader to Door Title: Version: v1.0 Date: 5/19/2017 Station Product: Video Intercom Device Page: 5 of 5 First Choice for Security Professionals HIKVISION Technical Support...
