Summary of Contents for HIKVISION DS-K1108A Series

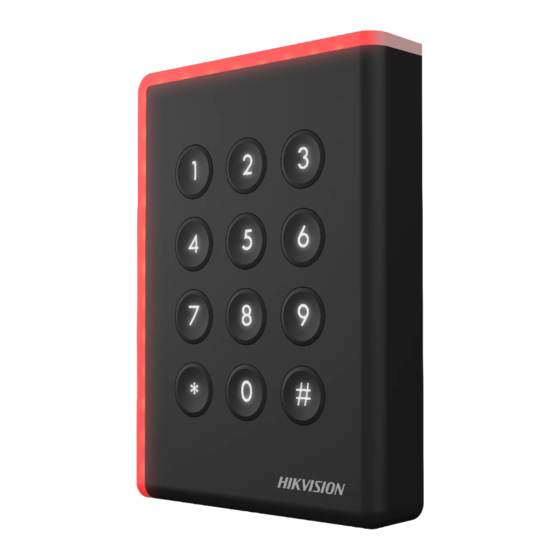

- Page 1 DS-K1108A Series Card Reader User Manual...
- Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
- Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
- Page 4 DS-K1108A Series Card Reader User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 5 DS-K1108A Series Card Reader User Manual EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
- Page 6 DS-K1108A Series Card Reader User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
- Page 7 DS-K1108A Series Card Reader User Manual • Please use the provided glove when open up the device cover, avoid direct contact with the device cover, because the acidic sweat of the fingers may erode the surface coating of the device cover.
- Page 8 DS-K1108A Series Card Reader User Manual Available Models Product Name Model Card Reader DS-K1108AE DS-K1108AEK DS-K1108AM DS-K1108AMK Use only power supplies listed in the user instructions: Model Manufacturer Standard TS-A018-120015Ec Shenzhen Transin Technologies Co., Ltd...
-
Page 9: Table Of Contents
DS-K1108A Series Card Reader User Manual Contents Chapter 1 Overview ........................1 Chapter 2 Appearance ........................ 2 2.1 Front View ..........................2 2.2 Rear View ..........................2 Chapter 3 Installation ......................... 4 3.1 DIP Switch Description ......................4 3.2 Wiring Cables ......................... 4 3.2.1 Description of Cable ...................... -
Page 10: Chapter 1 Overview
DS-K1108A Series Card Reader User Manual Chapter 1 Overview The card reader is a kind of high-performance product, with a 32 bit high-speed processor. It communicates with access controller via either RS-485 protocol or Wiegand protocol. And a built-in tamper-proof module helps to protect card reader from malicious damage. As to the physical... -
Page 11: Chapter 2 Appearance
DS-K1108A Series Card Reader User Manual Chapter 2 Appearance 2.1 Front View The front view of card reader is shown below: Figure 2-1 Front View 2.2 Rear View The rear view of card reader is shown below:... - Page 12 DS-K1108A Series Card Reader User Manual Figure 2-2 Rear View...
-
Page 13: Chapter 3 Installation
DS-K1108A Series Card Reader User Manual Chapter 3 Installation 3.1 DIP Switch Description The DIP switch module is shown below. The No. of DIP switch from left to right is 1 to 8. When the switch is towards ON, it means the switch is enabled, otherwise, the switch is off. If you set the DIP switch like the figure displayed below, its binary value is 00001100, and its decimal value is 12. -
Page 14: Description Of Cable
DS-K1108A Series Card Reader User Manual 3.2.1 Description of Cable The description of 10 cables is shown below. Table 3-2 Description of Cable Color Description Orange Wiegand ERR (Available for Wiegand Protocol) Brown Wiegand OK (Available for Wiegand Protocol) White... -
Page 15: Set Wiegand Communication Mode
DS-K1108A Series Card Reader User Manual Figure 3-1 Wiring for RS-485 Communication Mode 3.2.3 Set Wiegand Communication Mode Steps 1. Set the DIP switch of No. 6 as 1. 2. Set the DIP switch of No. 5 and 7 for reading card mode and Wiegand protocol. For details, refers to DIP Switch Description . - Page 16 DS-K1108A Series Card Reader User Manual Figure 3-2 Wiring for Wiegand Communication Mode...
-
Page 17: Chapter 4 Sound Prompt And Indicator
DS-K1108A Series Card Reader User Manual Chapter 4 Sound Prompt and Indicator After the card reader is powered on, LED status indicator will turn green and flashing for 1 time. Then it will turn red and flashing for 3 times. At last the buzzer will send out a beep sound indicating the starting up process is completed. -
Page 18: Appendix A. Preventive And Cautionary Tips
DS-K1108A Series Card Reader User Manual Appendix A. Preventive and Cautionary Tips To guarantee the card reader works properly, please read and obey the notes below. • If the card reader is powered by the controller, the power supply distance is recommended to be no longer than 100m. -
Page 19: Appendix B. Communication Matrix And Device Command
Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure B-2 Device Command... - Page 20 UD18872B-A...
