- Page 1 DS-K1802 Series Card Reader User Manual...
- Page 2 LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF...
- Page 3 DS-K1802 Series Card Reader THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;...
- Page 4 DS-K1802 Series Card Reader Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 5 DS-K1802 Series Card Reader This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
- Page 6 DS-K1802 Series Card Reader This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements. Use only power supplies listed in the user instructions: Model Manufacturer Standard Shenzhen Transin TS-A018-120015Ec Technologies Co., Ltd Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
- Page 7 DS-K1802 Series Card Reader Do not connect several devices to one power adapter as adapter overload may cause over-heat or fire hazard. Please make sure that the power has been disconnected before you wire, install or dismantle the device.
- Page 8 DS-K1802 Series Card Reader Please use a soft and dry cloth when clean inside and outside surfaces of the device cover, do not use alkaline detergents. Please keep all wrappers after unpack them for future use. In case of any failure occurred, you need to return the device to the factory with the original wrapper.
- Page 9 DS-K1802 Series Card Reader If you require a higher security level, use multiple authentication modes. Multiple card types are supported. Please select an appropriate card type according to the card performance and the usage scenarios. viii...
-
Page 10: Table Of Contents
DS-K1802 Series Card Reader Content Chapter 1 Introduction ............2 Over View ..............2 Indicator and Component ..........3 Chapter 2 Installation ............3 Definition of Cable ............3 Wiring Cables ..............4 Installing Card Reader ............ 4 Chapter 3... -
Page 11: Chapter 1 Introduction

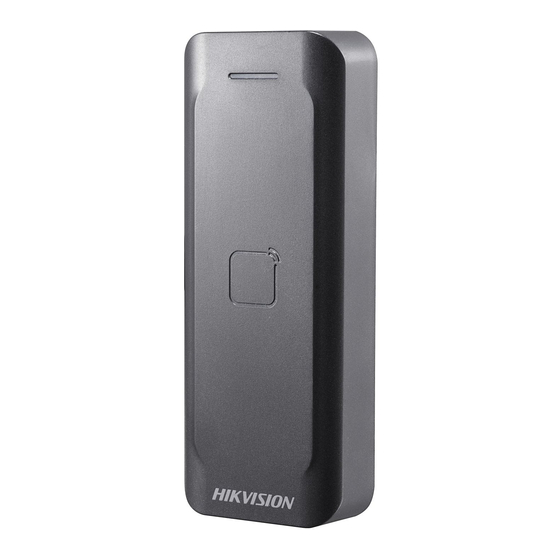

DS-K1802EK/MK/SK DS-K1802E/M/S Figure 1-1 DS-K1802 Series Card Reader DS-K1802 series card reader is a kind of high-performance product. It communicates with access controller via Wiegand protocol. As to the physical appearance, the PC+ABS material makes water proof and dust proof possible in poor environment. -
Page 12: Indicator And Component
DS-K1802 Series Card Reader 1.2 Indicator and Component Figure 1-2 Indicator and Component Chapter 2 Installation 2.1 Definition of Cable The description of cables is shown below. Table 2-1 Description of Cable Color Description PWR (+12 VDC) Black Purple Beep Control... -
Page 13: Wiring Cables
DS-K1802 Series Card Reader Color Description White Wiegand W1 Blue Wiegand 26/ 34 2.2 Wiring Cables Purpose: Wire the cables between controller and card reader, thus to establish the communication between them. Steps for Wiegand communication mode: Set the Wiegand mode before power-on:... - Page 14 DS-K1802 Series Card Reader 1. Fix the plate on the wall or other places by using two screws (PA4×25-SUS). Make sure the arrows on the plate are upwards. 2. Check whether the plate is fixed and in the right direction.
-
Page 15: Chapter 3 Sound Prompt And Indicator
DS-K1802 Series Card Reader Chapter 3 Sound Prompt and Indicator After the card reader is powered on, LED status indicator will turn green and blink for 1 time. Then it will turn red and blink for 3 times. At last the buzzer will send out a beep sound indicating the starting up process is completed. - Page 16 DS-K1802 Series Card Reader Table 1-2 Description of LED Indicator LED Indicator Status Description Green (blink for 1 time), and red (blink The card reader is power on. for 3 times) For Card + Password authentication: Green slow prompt for entering the password after blinking swiping the card.
- Page 17 DS-K1802 Series Card Reader UD05260B-A...
