Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
Download the app
Download the app
& activate product
& activate product

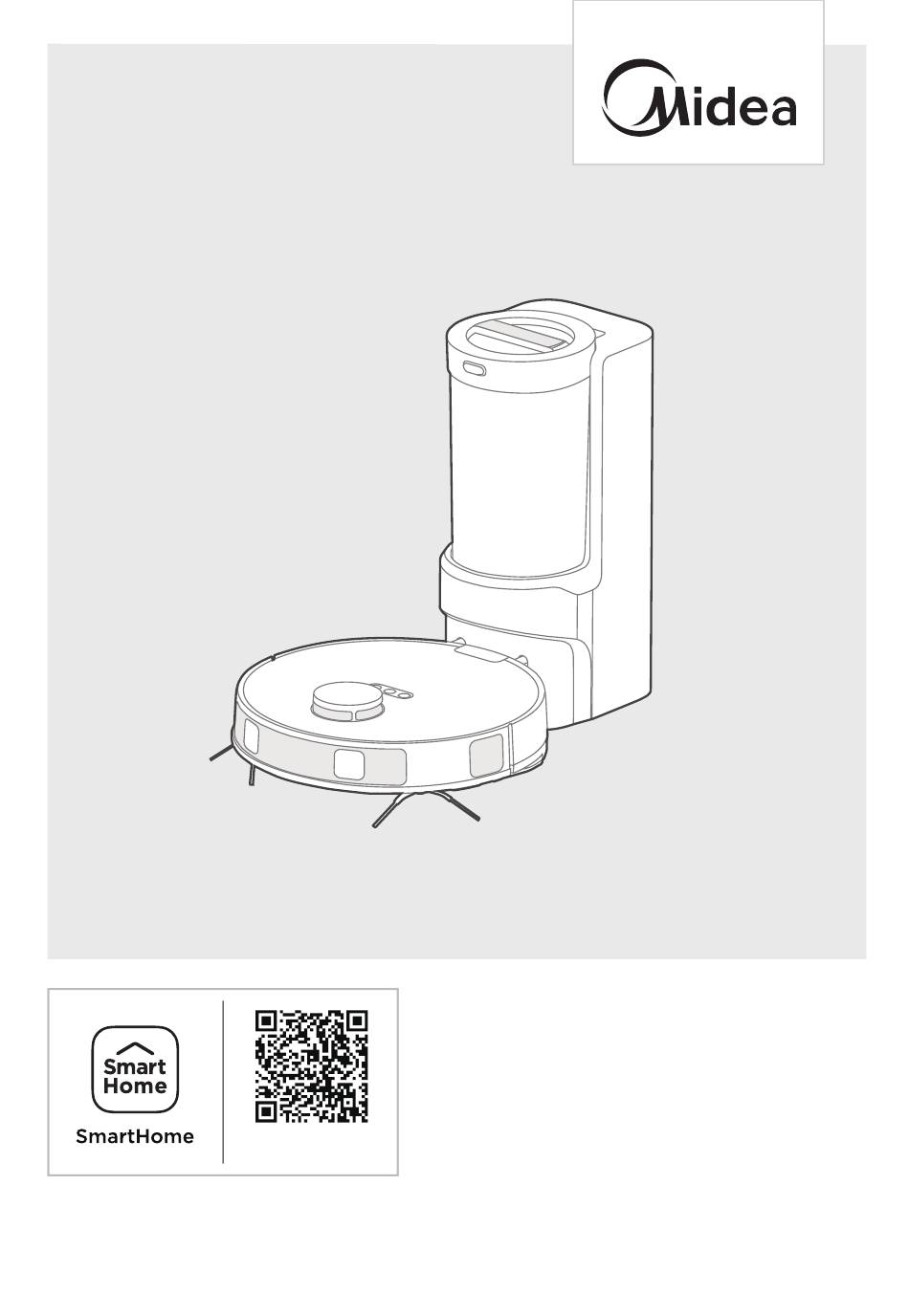

Robot Vacuum Cleaner
Robot Vacuum Cleaner
USER MANUAL
USER MANUAL
VCR S10 Plus
V12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Midea VCR S10 Plus
Summary of Contents for Midea VCR S10 Plus
- Page 1 Robot Vacuum Cleaner Robot Vacuum Cleaner USER MANUAL USER MANUAL VCR S10 Plus Download the app Download the app & activate product & activate product Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
-
Page 2: Table Of Contents
THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance o ers in a safe way. - Page 3 CONTENTS MAINTENANCE Dustbin/Water tank maintenance Cleaning the mop assembly Cleaning tools Roller brushmaintenance (weekly cleaning recommended) Main wheels cleaning (weekly cleaning recommended) Side brushes cleaning (weekly cleaning recommended) How to empty the dust cup How to clean the cyclone How to clean the filter How to clean the dust collection air duct Sensors and charging contacts cleaning TROUBLESHOOTING...
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Warning for the machine This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 5 SAFETY INSTRUCTIONS Correct Disposal of this product. This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
- Page 6 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Docking base is only Applicable to the product VCR S10 Plus. (Battery pack type : Li-ion, DC 14.4 V, 5200 mAh) The Docking base will automatically start charging after Robot Vacuum Cleaner returned to the base.
- Page 7 SAFETY INSTRUCTIONS Warning for battery before removing the battery. Please note that do not disassemble the battery by yourself. If you need to replace it, please contact the after-sales service center. Please dispose of used battery according to local laws and regulations Do not dismantle, open or shred the battery.
- Page 8 SAFETY INSTRUCTIONS [symbol IEC 60417-5957 for indoor use only ( 2004-12 )] [symbol ISO 7000-0790 read operator's manual ( 2004-01 )] [symbol IEC 60417-5031 direct current ( 2002-10 )] time-lag miniature fuse-link where X is the symbol for the time/current characteristic as given in IEC 60127 [symbol IEC 60417-5032 alternating current ( 2002-10 )]...
-
Page 9: Technical Data
TECHNICAL DATA Product Model: VCR S10 Plus Host Charging Voltage: 16.7V Host Rated Voltage: 14.4V Host Rated Power: 55W Docking Station Model: BS2302 Docking Station Input: 220-240V~, 50-60Hz, 850W Docking Station Output: 16.7V , 1A Battery Model: BP14452C Battery Rated Voltage: 14.4V Battery Capacity: 5200mAh 74.88Wh... -
Page 10: In The Box
IN THE BOX Components in Package Robot Vacuum Self-Emptying Base 445mm 97mm Side Brush x2 Cleaning Brush Instruction Manual Instruction Manual... -
Page 11: Introduction To Parts Of Robot Vacuum
IN THE BOX Introduction to Parts of Robot Vacuum Network / Spot Cleaning Button Bumper LiDAR Sensor Power Button Recharging Button Edge Sensor Dustbin Release Reset Button Button Dustbin / Release Button of Water Tank Auto-lifting Mop Cli Sensors Omni-directional Wheel Carpet Detection Sensor... -
Page 12: Preparations Before Use
PREPARATIONS BEFORE USE Notes Remove excess clutter and cables on the floor before cleaning. Installation of side brushes Turn the main unit over. Attach the side brush to its color-matched post and press down until they fit into place. Filter installation Setting up self-emptying base 1. -
Page 13: Charging
PREPARATIONS BEFORE USE NOTES 1. Avoid placing the robot and the base under direct sunlight. 2. Be sure to keep the charging area dry. Charging Press and hold " " for 3 seconds to power on the robot vacuum. After the power indicator turns on, press the recharging button or manually put the robot back into the self-emptying base for charging, as shown. -
Page 14: Setting Up App And Connecting The Device
NOTE: If the wireless network in your home is unstable, it may cause issues with the operation of the SmartHome App. The content of the SmartHome App may change when the version is updated. Please refer to the Midea Robotic Vacuum interface for details. -
Page 15: Getting Started
GETTING STARTED Button Operation Start/pause/resume Return to the base Start spot cleaning Short Press Press and Shut down Enter the network pairing state hold for 3s Start / Pause / Resume Briefly Press " " to start/pause/resume cleaning or use your App to control. SPOT Cleaning When the robot vacuum is in standby/pause mode, press "... -
Page 16: Self-Emptying Function
GETTING STARTED Self-Emptying Function After cleaning, the robot will return to the charging base and automatically begin self-emptying. Press the recharging button (the recharge interval between two times should be longer than 5 minutes) to trigger self-emptying. Select manual self-emptying function on the App. Avoid manual self-emptying frequently. Status Indicators of Self-Emptying Base Indicator Light Status... -
Page 17: Maintenance
MAINTENANCE Never operate robot without all filters, filter screen and dustbin in proper position. Moving parts! Recharge robot vacuum cleaner after each use. Dustbin/Water tank maintenance (clean as needed) Take out the dustbin: Remove debris by tApping the Press the dustbin release button filter against your garbage bin. -
Page 18: Cleaning Tools
MAINTENANCE Do not attempt to remove belt. Cleaning tools How to use the cleaning brush: ① Cut the hair entangled on the roller brushwith the blade. Blade ② Brush Roller brushmaintenance (weekly cleaning recommended) Turn the main unit over. Release the Wash the roller brushwith water and dry it. -
Page 19: Main Wheels Cleaning (Weekly Cleaning Recommended)
MAINTENANCE Main wheels cleaning (weekly cleaning recommended) Rotate the main wheels back and forth to remove debris or dust - remove and take out the hair or debris with the cleaning brush or a soft cloth. Side brushes cleaning (weekly cleaning recommended) Pull out the side brush. -
Page 20: How To Empty The Dust Cup
MAINTENANCE How to empty the dust cup Empty as soon as dirt reaches the MAX mark. Remove the dust cup by moving it vertically upwards. Hold the dust cup over a bin. Press the lower dust cup release tab and empty the trash into the bin. -
Page 21: How To Clean The Filter
MAINTENANCE How to clean the filter Press the release tab of the cover of the filter on the back of the base to remove the cover. Release Button Rinse the filter with clean water until it is clean. Make sure the filter is completely dry before putting it back. -
Page 22: Troubleshooting
TROUBLESHOOTING Actions Faults Possible Causes The robot vacuum is not in Place the robot vacuum 1m in The robot vacuum front of the self-emptying base contact with the charging cannot be recharged contacts. and press the recharging button. Place the self-emptying base on The robot vacuum The self-emptying base is a level surface that is free of... -
Page 23: Trademarks, Copyrights And Legal Statement
Midea Group and/or its a liates (“Midea”), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws. -
Page 24: Package Information
Further information are provided on request. You can contact our Data Protection O cer via MideaDPO@midea.com. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via MideaDPO@midea.com. To find... -
Page 25: Declaration Of Conformity (Doc)
EN 300 328 V2.2.2 EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 EN 62479:2010 EN 62321-4:2017 EN 62321-5:2013 EN 62321-6:2015 EN 62321-7-1:2015 EN 62321-7-2:2017 EN 62321-8:2017 Supplementary information: Technical file held by: Midea Robozone Technology Co.,Ltd . Place and date of issue (of this DoC): CHINA 2024-3-29 Signed by or for the manufacturer... - Page 26 Requirements for Relevant Connectable Products) Regulations 2023, Schedule 2 Conditions for Deemed Compliance with Security Requirements based on the test reports and technical documents. Signed for and on behalf of: Midea Robozone Technology Co.,Ltd. Address: No.39 Caohu Avenue, Xiangcheng Economic Development Zone, Suzhou, Jiangsu, China Name: XIAOFENG YAN Signature: Function: Certified Engineer...
