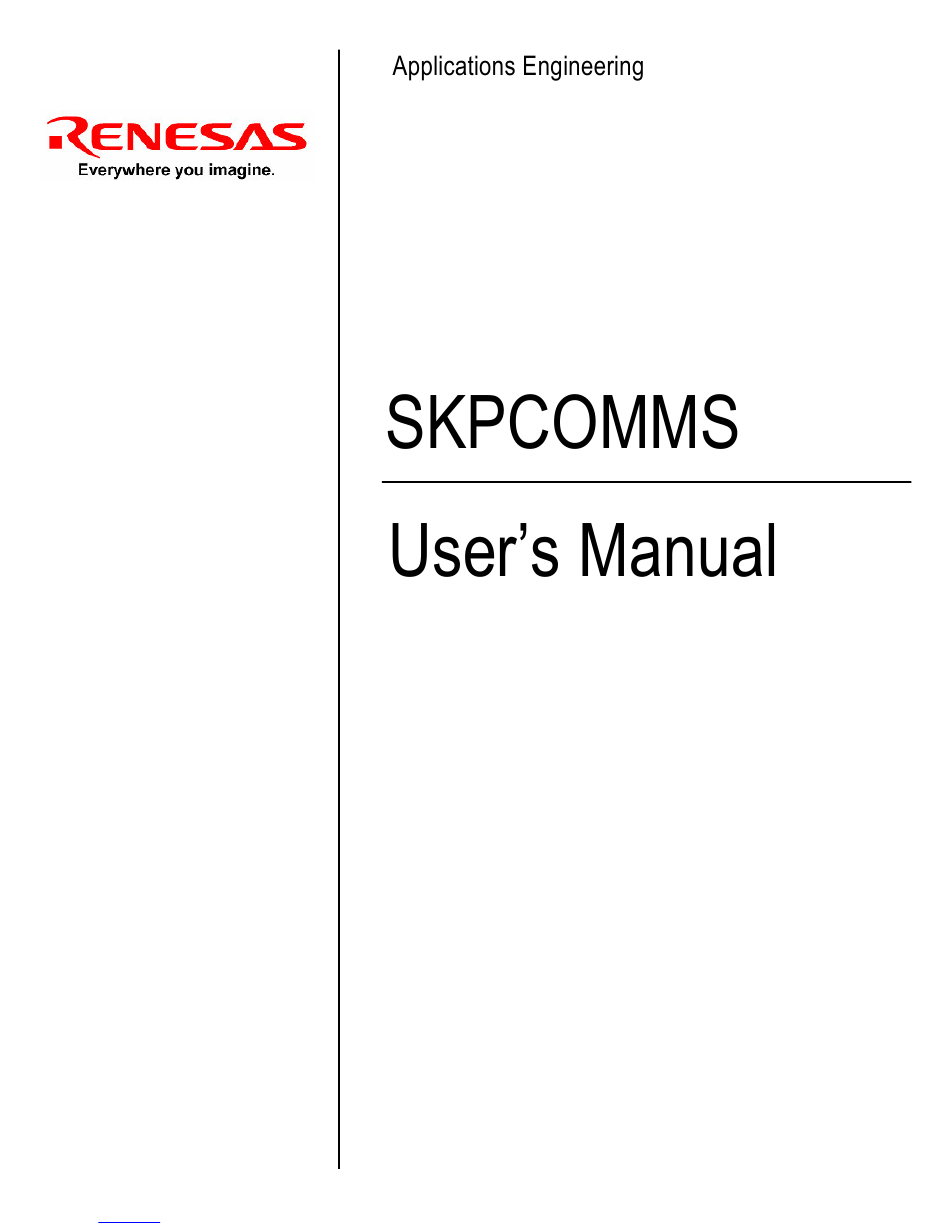

- Page 1 Applications Engineering KPCOMMS Preliminary USERS MANUAL Ver. 1.0 Rev. 1.0 July 2004 www.renesas.com SKPCOMMS User’s Manual Rev. 1.0 June 2004 Downloaded from Elcodis.com electronic components distributor...
-
Page 2: Table Of Contents
3.0 Limited Guarantee and Support ..................4 4.0 System Connectivity ..................... 5 5.0 Hardware........................7 6.0 System Operation & Limitations ................11 7.0 SKPCOMMS Board Specifications................12 Appendix A. Troubleshooting Guide................13 Appendix B. Reference Manuals ..................13 Appendix C. Expansion Headers ..................14 Appendix D. -
Page 3: Introduction
It was design to bring out various communication interfaces from SKP MCUs as well as provide more functionality, such as an external power supply, than what is on a standard SKP board. The SKPCOMMS board can be ordered fully populated, or with a sub-set of components. SKPCOMMS User’s Manual Rev. 1.0 2 / 22... -
Page 4: Contents Of Product Package
Applications Engineering 2.0 Contents of Product Package This section describes the contents of the SKPCOMMS product package. When unpacking your SKPCOMMS, please check to see that all products listed below are included. 2.1 SKPCOMMS StarterKit Plus Add-on Product List Table 2-1 lists the products included in the SKPCOMMS. -
Page 5: Limited Guarantee And Support
Applications Engineering 3.0 Limited Guarantee and Support Renesas Technology America, Inc., warrants the SKPCOMMS to be free from component or assembly defect for a period of 180 days from the date of purchase. Settlement is limited to repair or replacement of the product only. Renesas Technology America, Inc., does not assume any liability arising out of the application or use of any product, circuit or procedure described herein. -
Page 6: System Connectivity
Applications Engineering 4.0 System Connectivity The following lists the hardware and software products required for using the SKPCOMMS StarterKit Plus Add-on. • Host Computer (supplied by user) • Standard Renesas SKP board (sold separately) • SKPCOMMS Board • (2) Dual row 50-pin headers (to be populated on the board by user) •... - Page 7 Applications Engineering The minimum requirement to be able to use the software that comes with the SKPCOMMS is a PC with a USB port and Microsoft Windows 98, ME, 2000, or XP. Note: For Windows 95 and NT, that do not support USB, please contact Renesas representative or email techsupport.rta@renesas.com...
-
Page 8: Hardware
Applications Engineering 5.0 Hardware 5.1 SKPCOMMS Board Figure 5-1 shows the SKPCOMMS Board with major components identified. Figure 5-1. SKPCOMMS Board Pin break Ground outs from Test Point Test Point Chip Select External Power jumpers for input SRAM & Ethernet... - Page 9 Applications Engineering 5.2 SKPCOMMS Board Block Diagram The SKPCOMMS board contains multiple component interfaces. Note that not all components may be populated depending on which version you purchased. Figure 5-2. SKPCOMMS Block Diagram Power Supply 12MHz Address Ethernet SRAM Address...
- Page 10 5.4 SKPCOMMS Board Jumper Configuration 5.4.1 Table of Jumper Connections The following table shows all the jumper settings for the SKPCOMMS board. Note that the default jumper settings are different for a full SKPCOMMS board (all components populated) as opposed to a COMMS-LITE (Ethernet and SRAM not populated).
- Page 11 NOTE 1 - The chip select order is reversed between the M16C and M32C family of devices. The silk screen on the SKPCOMMS board is for M16C. So for M32C, you would short the position for CS3 if you desired CS0.
-
Page 12: System Operation & Limitations
Target M16C ROM Monitor Resources or related ICD application notes. 6.3 Memory Map Because the SKPCOMMS board was designed to work will all the standard SKP kits, the memory map for address mapped components (SRAM and Ethernet) will be different for each device depending on the chip select jumpers used. -
Page 13: Skpcomms Board Specifications
7.3 Operating Environment Table 7-3 lists the environmental conditions for using and storing the SKPCOMMS board. When storing the board, place it in a conductive bag and then in the packing box your product was shipped in from the factory. -
Page 14: Appendix A. Troubleshooting Guide
This section discusses how to install the SKPCOMMS software and development tools manually (i.e. when not using the SKPCOMMS installer). (1) Create an SKPCOMMS folder under C:\MTOOL on your PC and then copy the directories from the \SKPCOMMS\files folder on the SKP CD to this folder. -
Page 15: Appendix C. Expansion Headers
P7_7, TA3in P6_0, CTS0 P6_1, CLK0 P6_2, RxD0, SCL0 P6_3, TxD0, SDA0 P6_4, CTS1, CLKS1 P6_5, CLK1 P6_6, RxD1, SCL1 P6_7, TxD1, SDA1 Vref BYTE SKPCOMMS User’s Manual Rev. 1.0 14 / 22 June 2004 Downloaded from Elcodis.com electronic components distributor... -
Page 16: Appendix D. Skpcomms Board
NOTES: • All headers are standard 0.1 inch spacing • Distance between headers are the same for top and bottom side of the board SKPCOMMS User’s Manual Rev. 1.0 15 / 22 June 2004 Downloaded from Elcodis.com electronic components distributor... -
Page 17: Appendix E. Rta-Fousb-Mon (Icd)
Applications Engineering Appendix E. RTA-FoUSB-MON (ICD) For details on how to use the ICD, please see RTA-FoUSB-MON user’s manual. SKPCOMMS User’s Manual Rev. 1.0 16 / 22 June 2004 Downloaded from Elcodis.com electronic components distributor...
