Summary of Contents for Yealink RCH40

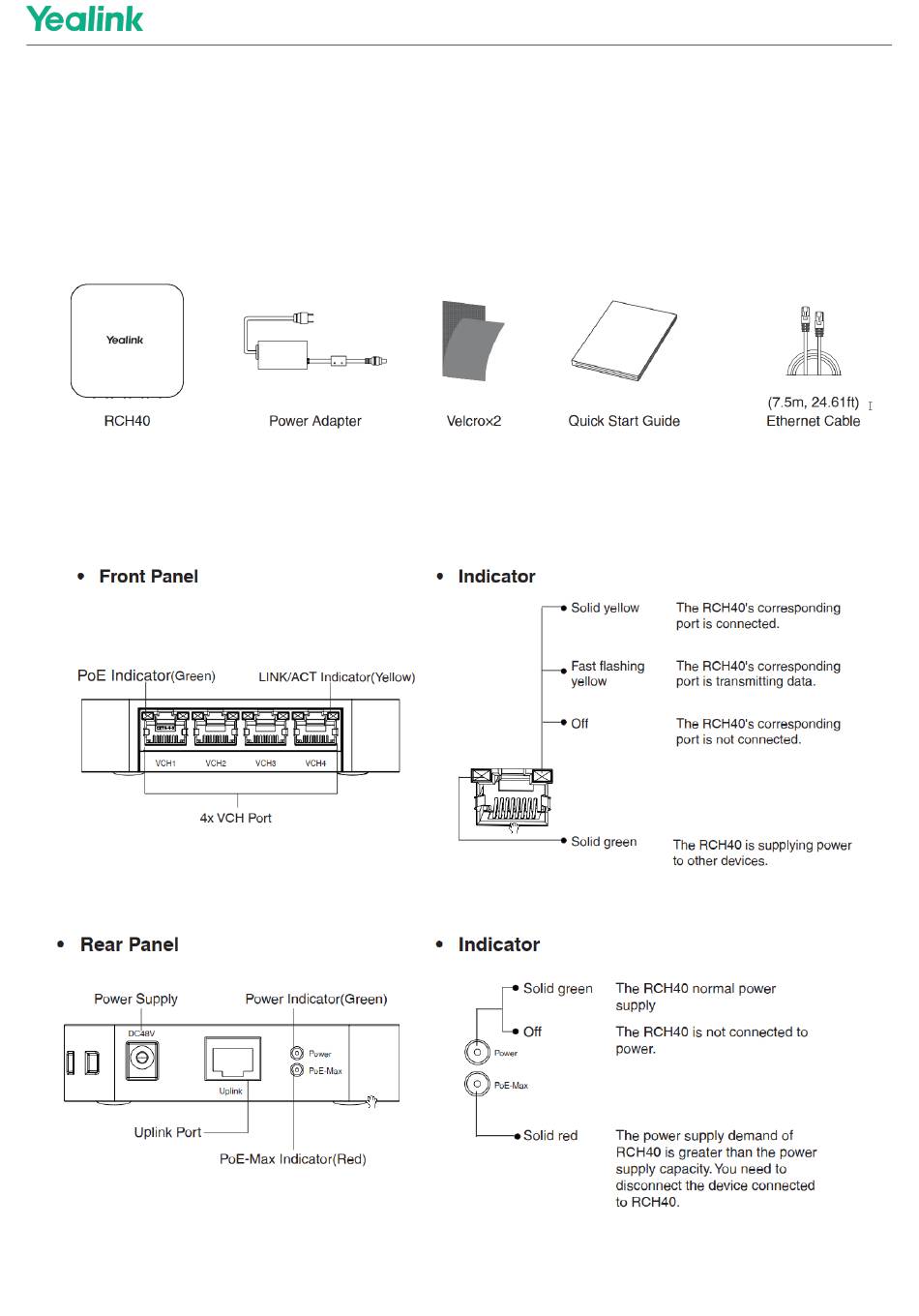

- Page 1 RCH40 Installation RCH40 Installation RCH40 Installation Package Contents Package Contents Hardware Component Instructions Hardware Component Instructions...
-
Page 2: Installation
NOTE NOTE The system should be used with Yealink original power adapter only. The use of the third-party power adapter may damage the RCH40 device. The cable should be replaced at once if it is broken. Stick under the Table Stick under the Table ... - Page 3 2, port 3, and port 4 and then connect another device to port 1. RCH40 will reset port 4 to ensure that port 1, port 2, and port 3 have enough power. After resetting port 4, the power of RCH40 still exceeds the rated output.
- Page 4 Connection 1. When you want to connect no more than 4 wired microphones to the RCH40 device, you only need to connect one RCH40. The RCH40 does not need to be connected to an external power supply and can be powered by the VCHub/Phone port.
- Page 5 The maximum power provided by the RCH40 is about 30W (48V/0.7A power supply) or 90W (48/2A power supply) after it is connected to the power supply. At this time, you can connect RCH40 to wired microphone as well as other devices.
- Page 6 RCH40 Installation 4. When you need to connect 10Wired microphones, you need to connect a PoE switch to power the RCH40.
- Page 7 2. When the PoE switch cannot meet the power supply requirements of the RCH40 (overload), the PoEMax indicator of the RCH40 will light up. In order to stabilize the power supply of the devices connected to the RCH40, the ports corresponding to the RCH40 that exceed the power supply requirements will be reset.
