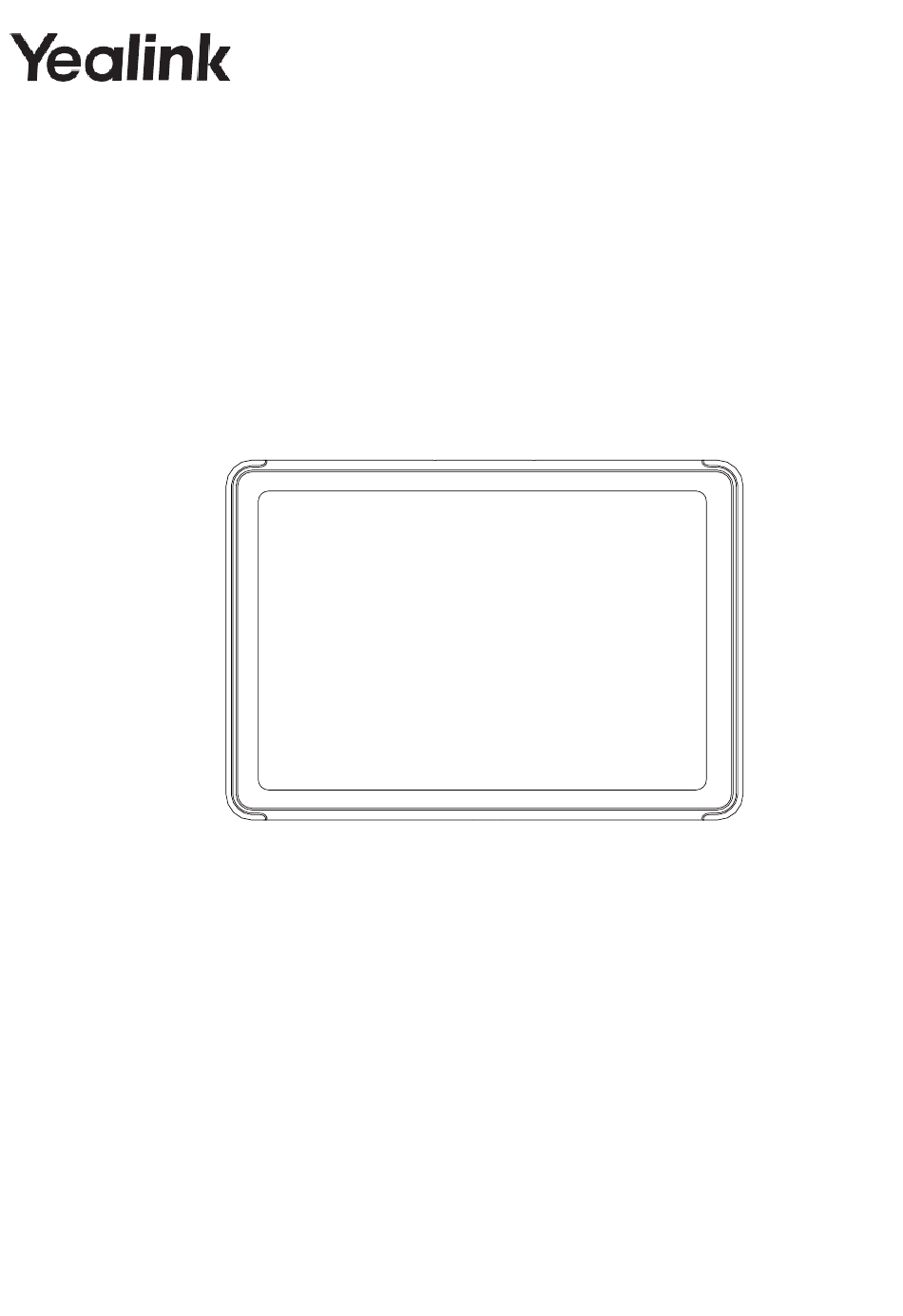

- Page 1 RoomPanel Quick Start Guide (V1.0)
-
Page 2: Package Contents
Package Contents RoomPanel USB-C Port Power Adapter Protective Cover Screwdriver Quick Start Guide Power Extension Cable (Optional) Metal Bracket Security Latch 0° Mounting Bracket 20° Mounting Bracket Mounting Bracket and Accessories Kit 6-32 x 3/4 in × 6 M3.5 x 25mm × 4 T4 x 6mm ×... -
Page 3: Installation
Power on the RoomPanel AC Power Option: Installation Option 1: Mount on the the Electrical Box The RoomPanel installs over a standard 2-gang U.S.electrical box. Step1: Install the Metal Bracket 2-gang U.S.electrical box Metal Bracket Screws: 6-32 x 3/4 in Keep the facing up. - Page 4 Step2: Install the Security Latch (Optional) Install the security latch to the RoomPanel so that it cannot be easily removed from the mounting bracket after installation. RoomPanel Security Latch Step3: Install the RoomPanel Option2: Mount on the Wall This guide mainly takes as an example for reference.
- Page 5 Step3: Install the Metal Bracket to the Mounting Bracket Screws: M3 x 6mm Keep the facing up. Step4: Install the Security Latch (Optional) Install the security latch to the RoomPanel so that it cannot be easily removed from the mounting bracket after installation. RoomPanel Security Latch...
- Page 6 Step5: Connect the Cable and Install the RoomPanel Option 2: Mount on the Glass Step1: Gule the Mounting Bracket to the Glass 3M Velcro Glass Keep the facing up. Step2: Route the Ethernet Cable Option 1 Option 2...
- Page 7 M3 x 6mm Keep the facing up. Step4: Install the Security Latch (Optional) Install the security latch to the RoomPanel so that it cannot be easily removed from the mounting bracket after installation. RoomPanel Security Latch Step5: Connect the Cable and Install the RoomPanel...
- Page 8 2. If the security latch has be installed: a. Pull the RoomPanel away from the wall until it stops. b. Use the screwdriver to rotate the latch to the opening position which retracts the security latch arms.
- Page 9 Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 10 interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver.
- Page 11 Yealink (Stock Code: 300628) is a global brand that specializes in video conferencing, voice communications and collaboration solutions with best-in-class quality, innovative technology and user-friendly experience. As one of the best providers in more than 140 countries and regions, Yealink ranks No.1 in the global market share of SIP phone shipments (Global IP Desktop Phone Growth Excellence Leadership Award Report, Frost &...
