Technical data

Supply

240 V~, 50 Hz

Voltage:

Bulb

3.3W LED module (SMD), 6500K

Type:

The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole

luminaire shall be replaced.

Conformity with all relevant EC Directive requirements.

This is a Class 1 product and must be earthed.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities

exist. Check with your Local Authority or local store for recycling advice.

This product is not suitable for dimming.

This product is rated at IP44.

This product is rated at IK05.

Care and Safety

We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the ﬁnish.

For your safety, always switch off the power supply before changing lightbulbs, or cleaning.

This LED's are protected by a PC shade. The shade part must be replaced immediately should it

become cracked or damaged. This fitting must not be used without the PC shade in place.

Replace Cracked Shade

V1 16/01/2020

Saxby Lighting. BH17 7BY

Instruction manual

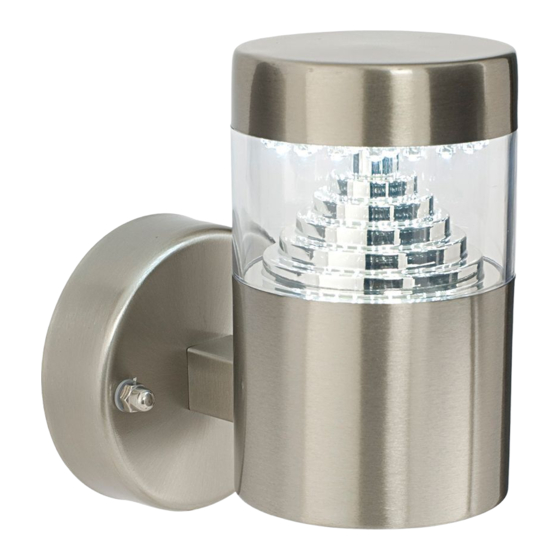

PYRAMID 1LT WALL

13928

www.saxbylighting.com

Need help?

Do you have a question about the PYRAMID 1LT WALL and is the answer not in the manual?

Page 1 Instruction manual Technical data Supply 240 V~, 50 Hz Voltage: PYRAMID 1LT WALL Bulb 3.3W LED module (SMD), 6500K Type: The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole 13928 luminaire shall be replaced.
Page 2 Thank you for purchasing this light ﬁtting. Please read the instructions carefully before use to ensure safe and satisfactory • Fit the terminal block onto the post in the back plate and then fit the front frame over the 2 threaded bolts in the back plate operation of this product.
