Summary of Contents for Saxby Lighting 13889

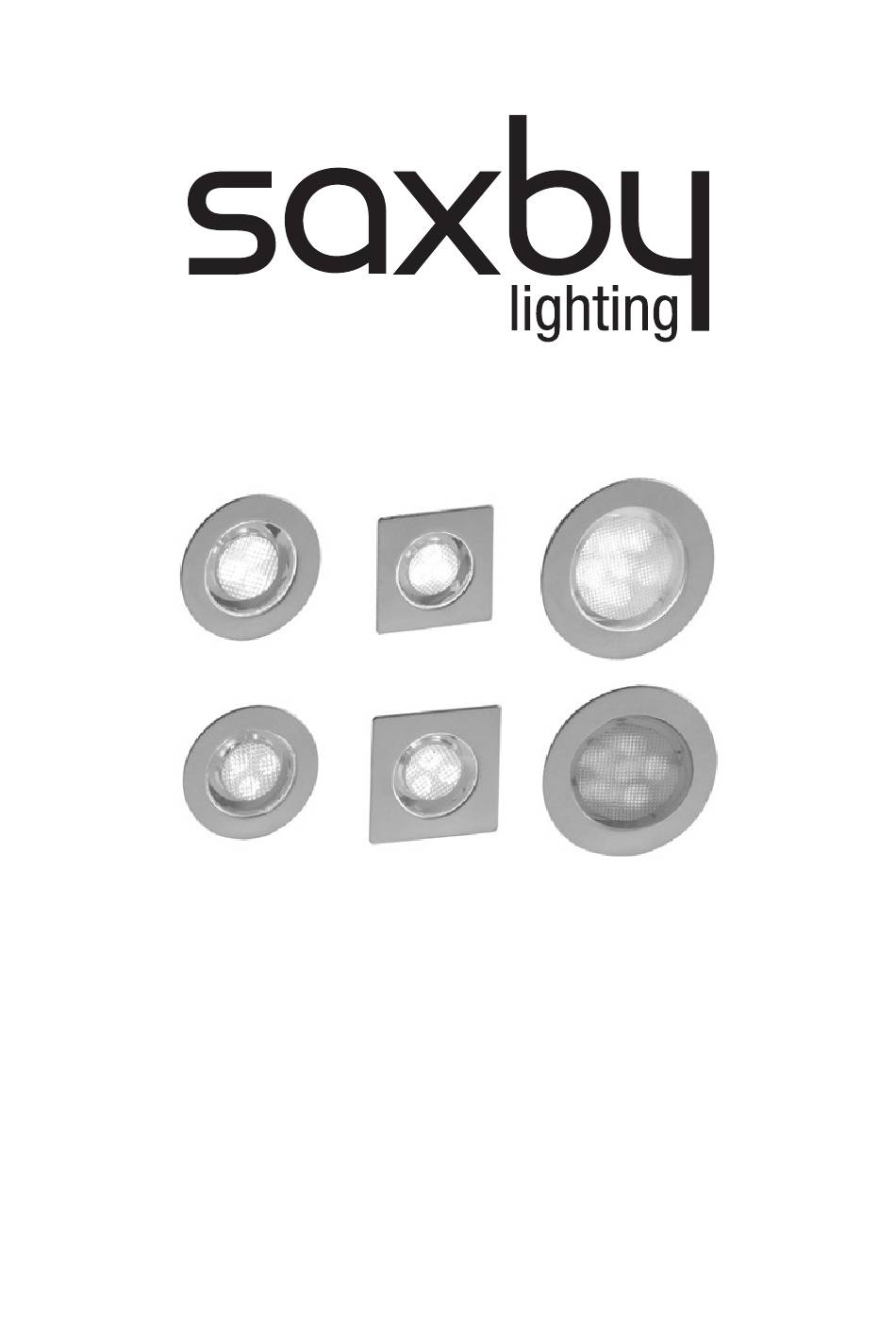

- Page 1 Outdoor LED Kits 13889,13890, 13988, 13989,13992, 13994,...

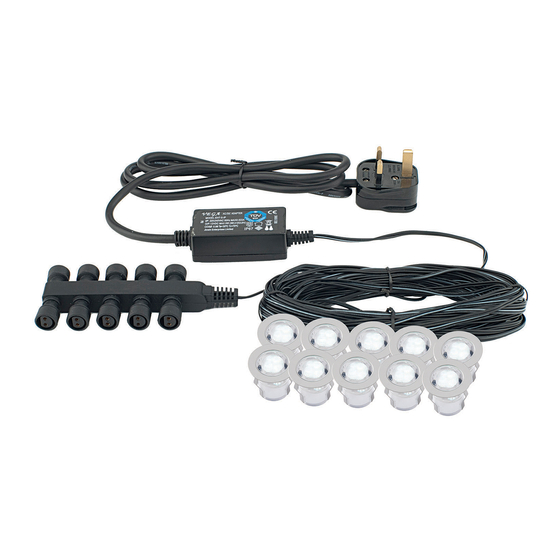

- Page 2 Power Supply: Input: 240V 50Hz a.c. Output 12V d.c. 5W Lamp: 13889 & 13992 - 3 x 0.07W White LED 13890 & 13994 - 3 x 0.07W Blue LED 13988 - 6 x 0.07W White LED 13989 - 6 x 0.07W Blue LED IP rating: 13.3...
- Page 3 Layout • Plan the desired layout of these fittings carefully, ensuring the cables will reach the distances between the indoor transformer, the outdoor junction box and each light fitting. • Avoid locating any cables in positions that would cause a trip hazard. Position cables and junction box away from areas where they may be at risk from being cut, trapped or damaged.
- Page 4 Live Voltages may be present in the transformer even when turned off or when completely disconnected. For your safety, always switch off the supply before maintaining the system. This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped. Saxby Lighting Ltd. BH23 3PE. Iss.2 15092011...
