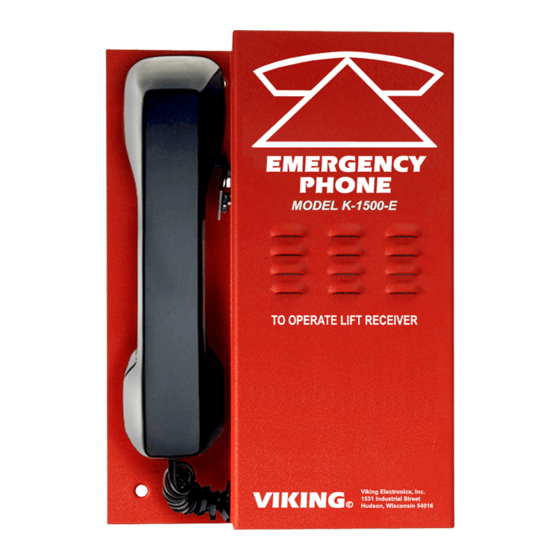

Model K-1500-E
The K-1500-E and K-1500-EHFA components conform to industry-set
standards and are mounted on a formed aluminum panel, finished in
red powder paint for easy visibility.
F
e
a
t
u
r
e
s
F
e
a
t
u
r
e
s
• Handsfree or handset models available
• Phone line powered
• No dial pads
• Designed to mount in a standard emergency
phone enclosure (10" x 7" x 3")
• Built for easy installation and simple operation
K-1500-E Features
• Hearing aid compatible handset with volume control
K-1500-EHFA Features
• Intelligent call progress detection for automatic
hang-up on CPC, silence, busy signal or timeout
• Alternate action "call" button to place or cancel
a call
• Selectable auto-answer feature allows remote
monitoring
• Two-way handsfree communication
• Vandal resistant metal push button
• Programmable maximum call length
• Programmable VOX (mic/speaker) switching
speed
• Adjustable mic and speaker volume
h
t
t
p
:
/
/
w
w
w
.
v
i
k
i
n
g
h
t
t
p
:
/
/
w
w
w
.
v
i
k
i
n
g
S
S
C
O
M
O
L
U
T
I
O
N
S
C
O
M
O
L
U
T
I
O
N
S
Emergency Phones without Auto Dialing
The K-1500 Emergency Phones provide reliable handset or handsfree
emergency communication.
The K-1500-E and K-1500-EHFA can be connected directly to a C.O.
line or analog PABX/KSU station when used in conjunction with a hot-
line dialer or programmed ring down circuit. The phones can also be
used with Viking's DLE-200B ring down circuit.
When the button is pressed, the K-1500-EHFA
will come off hook until its intelligent call
progress detection automatically hangs it up.
During this time, the user may converse
handsfree. Alternatively, standard handset
communication is used with the K-1500-E.
e
l
e
c
t
r
o
n
i
c
s
.
c
o
m
e
l
e
c
t
r
o
n
i
c
s
.
c
o
m
P
r
a
c
P
r
a
c
2
1
C
2
1
C
F
O
R
T
H
E
S
T
F
O
R
T
H
E
S
T
A
p
p
l
A
p
p
l
• Commercial, industrial or residential elevators
• Use in conjunction with a Viking K-1900-5 Dialer
on C.O. lines or analog PABX/KSU stations
• Use on any programmed ringdown circuit of an
analog PABX/KSU station
S
p
e
c
S
p
e
c
Power: Telephone line powered (18V DC/20mA minimum)
Dimensions: 174mm x 251mm x 63.5mm (6.8" x 9.875" x 2.1")
Shipping Weight: K-1500-E: 1.13 kg (2.5 lbs), K-1500-EHFA:
.91 kg (2 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-
condensing humidity
K-1500-EHFA Speaker Volume: Approximately 70db maximum
@ 1m
K-1500-EHFA Ring Voltage: 25V AC RMS minimum
K-1500-EHFA CPC Disconnect Time: 300ms minimum
K-1500-EHFA REN: 0.8A
Connections: K-1500-E: (1) RJ11 jack, K-1500-EHFA: (1) 2-
position terminal block
K-1500-E
K-1500-E
K-1500-EHF
K-1500-EHF
Emergency/Elevator
t
i
c
e
t
i
c
e
E
N
T
U
R
Y
