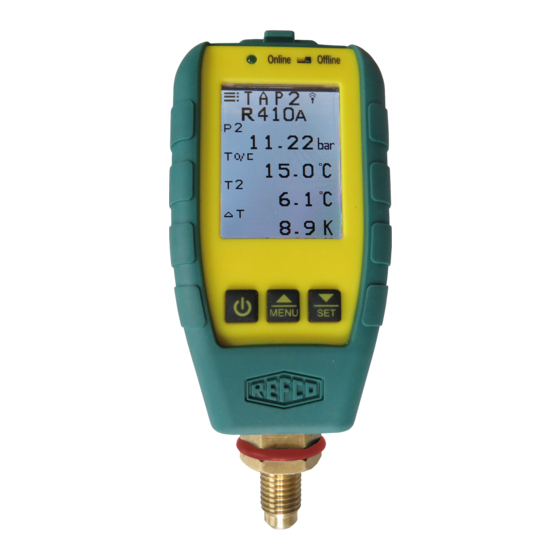

Refco TAP Installation And Operating Manual

Temperature and pressure gauge
Hide thumbs Also See for TAP:

Advertisement

Quick Links

Download this manual
TAP
TEMPERATURE AND
PRESSURE GAUGE
English
Installation and operating guide
Temperature And Pressure Gauge

Advertisement

loading
Need help?

Need help?

Do you have a question about the TAP and is the answer not in the manual?

Questions and answers

Related Manuals for Refco TAP

Summary of Contents for Refco TAP

  • Page 1 TEMPERATURE AND PRESSURE GAUGE English Installation and operating guide Temperature And Pressure Gauge...

  • Page 3: Table Of Contents

    Instruction Manual TAP / Temperature And Pressure Gauge English Contents Introduction ..................4 General information ................ 6 Important safety notice ..............7 Technical Data ................. 8 Parts description ................9 Transport, packaging and storage ..........13 Setup, operation ................14 Maintenance .................

  • Page 4: Introduction

    / or on your mobile device. - Up to 6 TAP devices can be monitored on your mobile device. - Create report and send by e-mail to your ofmce. - Uses common AAA batteries. - TAP is available in a suitable case either as single or double set.
  • Page 5 Instruction Manual TAP / Temperature And Pressure Gauge English CE/FCC Conform CE/FCC Notice This device meets the norm EN300 440. FCC: This device meets the requirements in accordance to part 15 of the FCC. Operation occurs under the following terms: (1).

  • Page 6: General Information

    ISO 9001. The TAP has been developed for long term use. REFCO takes energy saving and environmental impact into consideration when procuring materials and manufacturing its products. REFCO Manufacturing...

  • Page 7: Important Safety Notice

    This manual provides important information regarding the smooth operation, maintenance and disposal of the TAP. m The TAP must not be used with pressures higher than 60 bar / 870 psi / 6000 kPa. m Protective goggles and gloves should always be worn when using ropert the TAP.

  • Page 8: Technical Data

    English Instruction Manual TAP / Temperature And Pressure Gauge Technical Data Temperature clamp, TAP-CLAMP Property Value Thermocouple: K-type Temperature range: -40 °C to +125 °C / -40 °F to +257 °F Accuracy of +/- 1 °C / +/- 1.8 °F...

  • Page 9: Parts Description

    Instruction Manual TAP / Temperature And Pressure Gauge English The TAP can be used with the following refrigerants: R11, R113, R114, R12, R123, R124, R13, R134a, R13B1, R22, R227, R23, R290, R32 R401A(Liq), R401A(Vap), R401B(Liq), R401B(Vap), R402A(Liq), R402A(Vap), R402B(Liq), R402B(Vap), R403B(Liq),...
  • Page 10 English Instruction Manual TAP / Temperature And Pressure Gauge Pressure Gauge Slider switch Battery case cover Online / Offline LED Indicator light 4 x 1.5 V AAA Display DOWN ON / OFF MENU Connection fitting ¼" SAE Marking band blue or red...
  • Page 11 By pressing [ON/OFF] + [UNIT] button same time < 1 sec. the following mode is activated: UNIT - Set number of TAP-CLAMP. Scroll from T1 to T6 by pressing [UNIT] button < 1 sec. (once set, setting remains) By pressing [ON/OFF] + [UNIT] button same time >...
  • Page 12 English Instruction Manual TAP / Temperature And Pressure Gauge Buttons and functions on TAP Pressure Gauge ON / OFF Scroll UP Scroll DOWN MENU ON by short pressing < 1 sec. OFF by pressing ≥ 1 sec. ON / OFF - Backlight on - Display shows "OFF"...

  • Page 13: Transport, Packaging And Storage

    TAP CLAMP Transport, packaging and storage Transport The TAP is delivered from the factory in a plastic box, with or without different accessories as ordered. Inspect the TAP for any potential transportation damage. Any obvious damage should be reported to the vendor immediately.

  • Page 14: Setup And Operation

    Ensure the batteries are inserted observing the correct polarities. Do not leave dead batteries in the battery compartment. If you will not be using the TAP CLAMP for a long period of time, remove the batteries from the battery compartment.
  • Page 15 Instruction Manual TAP / Temperature And Pressure Gauge English TAP Pressure Gauge Set-up TAP Insert 4 x 1.5 V (AAA) batteries in the battery compart- ment on the back side of the TAP. Ensure the batteries are inserted observing the correct polarities.
  • Page 16 English Instruction Manual TAP / Temperature And Pressure Gauge - Press [MENU] button ≥ 1 sec. to activate selection Set mode. favorites - Press [DOWN] button< 1 sec. to scroll down to the refrigerant menu. - Press [SET] button ≥ 1 sec. to enter refrigerant menu. - Press [UP] or [DOWN] button < 1 sec. to scroll to the desired refrigerant.
  • Page 17 If no device can be found, " No Signal" appears on display before return to menu. - If device be found, display shows a list of found TAP CLAMP ID(s). - Select desired TAP CLAMP ID by pressing [UP] or [DOWN] button <...
  • Page 18 English Instruction Manual TAP / Temperature And Pressure Gauge Updating refrigerants. Update See in chapter maintenance. Current version of refrigerant chart is shown. Version This function is used in combination for update. SD Mode See in chapter maintenance. Resetting pressure sensor.

  • Page 19: Maintenance

    TAP seals are subject to mechanical and age-related wear. The- refore, the TAP should be regularly tested by the user for leaks. Resetting pressure sensor on TAP pressure gauge The TAP pressure sensor can be reset in order to avoid incorrect mea- surement values. P-Zero To obtain a correct measurement value on the display, the TAP should not be reset when pressurised.
  • Page 20 Calibration The accuracy of all measuring devices will degrade over time. Cali- bration improves the accuracy of the TAP. On this device temperature and pressure can be re-calibrated. Temperature calibration can be done using two procedures: calibration using ice water as reference or by using room temperature as reference.
  • Page 21 English Room temperature calibration 1. Turn off the TAP-CLAMP. 2. Place the TAP-CLAMP at constant temperature at 25 ± 3 °C con- dition for 2 hrs. to ensure the temperature of the K – thermocou- ple to be even. 3. While holding [UNIT], press [ON / OFF] until display shows "CALL"...

  • Page 22: Guarantee

    English Instruction Manual TAP / Temperature And Pressure Gauge Guarantee Your new TAP has been developed in accordance with the latest oc- cupational health and ergonomic requirements and reflects the latest state-of-the-art technology. REFCO Manufacturing Ltd has been certi- fied in accordance with DIN EN ISO 9001: 2008. Regular quality con- trol checks as well as an accurate manufacturing process guarantee...
  • Page 23 Instruction Manual TAP / Temperature And Pressure Gauge English...
  • Page 24 English Instruction Manual TAP / Temperature And Pressure Gauge REFCO Manufacturing Ltd. Industriestrasse 11 6285 Hitzkirch - Switzerland Telefon +41 41 919 72 82 Telefax +41 41 919 72 83 info@refco.ch www.refco.ch...
