TAP-CLAMP

TEMPERATURE AND

PRESSURE GAUGE

Installation and operating guide

Temperature And Pressure Gauge

Installations- und Bedienungsanleitung

Temperatur und Druckprüfgerät

Guide d'installation et d'utilisation

Istruzioni per l'installzione e l'uso

Guía de instalación y funcionamiento

TAP

4687787

4687785

Table of Contents

Need help?

Do you have a question about the 4687787 and is the answer not in the manual?

Questions and answers

Summary of Contents for Refco 4687787

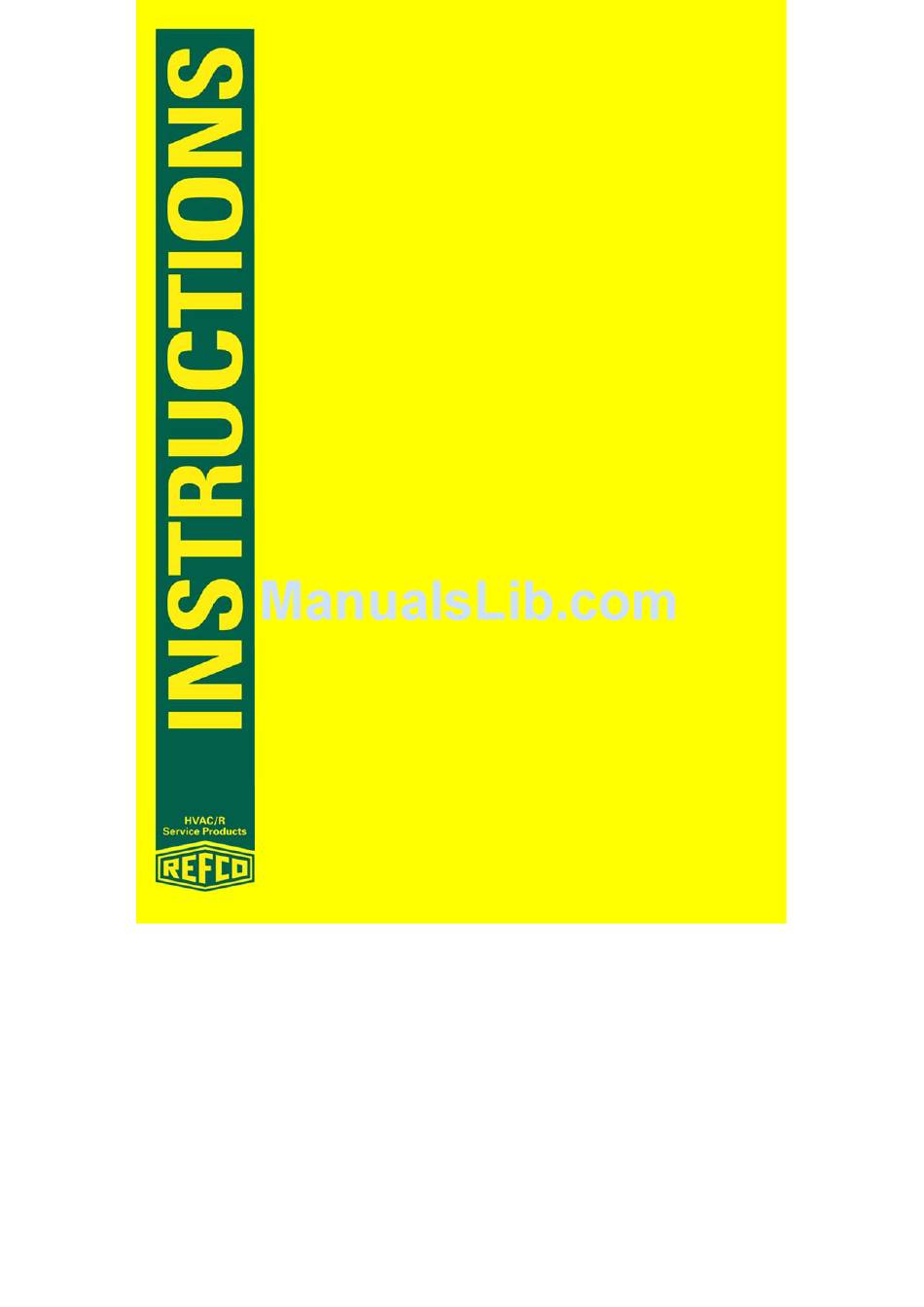

Page 1 TAP-CLAMP 4687787 4687785 TEMPERATURE AND PRESSURE GAUGE Installation and operating guide Temperature And Pressure Gauge Installations- und Bedienungsanleitung Temperatur und Druckprüfgerät Guide d’installation et d‘utilisation Istruzioni per l’installzione e l’uso Guía de instalación y funcionamiento...
Page 2 Instruction Manual TAP, TAP-CLAMP / Temperature And Pressure Gauge English Contents Introduction ........................2 General information ......................4 Important safety notice....................5 Technical Data ......................... 6 Parts description ......................8 Transport, packaging and storage ................15 ...
Page 3: Introduction
Instruction Manual TAP / Temperature And Pressure Gauge Introduction Thank you for your purchase of the REFCO TAP, Temperature And Pressure gauge. The REFCO TAP wireless digital pressure and temperature gauge is an user friendly instrument to measure temperature and pressure form the low and high sides of air conditioning and refrigeration systems.
Page 4 Instruction Manual TAP, TAP-CLAMP / Temperature And Pressure Gauge English FCC Part 15.21 Warning Statement NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
Page 5: General Information
Our management systems are certified in accordance with ISO 9001. The TAP has been developed for long term use. REFCO takes energy saving and environmental impact into consideration when procuring materials and manufacturing its products. REFCO Manufacturing Ltd feels responsible for all of its products throughout their entire lifespan and has therefore been certified in accordance with DIN EN ISO 14001 : 2004.
Page 6: Important Safety Notice
Instruction Manual TAP, TAP-CLAMP / Temperature And Pressure Gauge English - The local accident prevention regulations applicable to the area in which the TAP is being used should also be adhered to, along with general safety guidelines. - The operating instructions are part of the product and must be stored in close proximity to the TAP where they should be readily accessible to qualified personnel at all times.
Page 7: Technical Data
Scope of delivery Information about the various models and variations of our products can be found in the REFCO catalogue or at www.refco.ch. The REFCO App is available on App Store and Play Store. Technical Data Temperature clamp...
Page 8 Instruction Manual TAP, TAP-CLAMP / Temperature And Pressure Gauge English Pressure gauge Property Value Maximum working 60 bar / 870 psi / 6000 kPa / 6 MPa pressure: Pressure resolution: 0.07 bar / 0.1 psi / 7 kPa / 0.007 MPa Pressure units: bar / psi / kPa / MPa Positive pressure...
Page 9: Parts Description
English Instruction Manual TAP / Temperature And Pressure Gauge Parts description Temperature Clamp Marking band blue or red Display UNIT button Indicator LED ON / OFF button Battery case cover light 3 x 1.5 V AAA...
Page 10 Instruction Manual TAP, TAP-CLAMP / Temperature And Pressure Gauge English Pressure Gauge Slider switch Battery case cover Online / Offline LED Indicator light 4 x 1.5 V AAA Display DOWN ON / OFF ...
Page 11 English Instruction Manual TAP / Temperature And Pressure Gauge Buttons and functions of TAP CLAMP ON / OFF UNIT OFF by pressing  1 sec. ON / OFF ON by short pressing < 1 sec. - Backlight on - Display shows "OFF" - Start image on - Backlight off (Backlight shuts off after 1 min.)
Page 12 Instruction Manual TAP, TAP-CLAMP / Temperature And Pressure Gauge English Indicator Green LED light flashing No LED light LED light - Power on - Power off - Wireless transmission to - Wirless transmission to pressure gauge on. pressure gauge off. Display Number of TAP CLAMP T1.…T6...
Page 13 English Instruction Manual TAP / Temperature And Pressure Gauge Buttons and functions on TAP Pressure Gauge Scroll UP Scroll DOWN ON / OFF MENU OFF by pressing  1 sec. ON / OFF ON by short pressing < 1 sec. - Backlight on - Display shows "OFF"...
Page 14 Instruction Manual TAP, TAP-CLAMP / Temperature And Pressure Gauge English Indicator LED light Online Offline green Slider Online Offline switch - Wireless transmission to - Wireless transmission to smart device on smart device off Measurements transmitting No measurements transmitting continuous to smart device. to smart device.
Page 15 English Instruction Manual TAP / Temperature And Pressure Gauge Display ID of TAP pressure gauge TAP1…TAP6 TAP1 to TAP6 Refrigerants menu R000 Menu with stored refrigerant charts bar, psi Pressure units P1…P6 kPa, MPa (P) = Pressure Temperature units °C To/c (To = Evaporating temperature ) °F...
Page 16: Transport, Packaging And Storage
Instruction Manual TAP, TAP-CLAMP / Temperature And Pressure Gauge English Transport, packaging and storage Transport The TAP is delivered from the factory in a plastic box, with or without different accessories as ordered. Inspect the TAP for any potential transportation damage. Any obvious damage should be reported to the vendor immediately.TAP is a high-grade instrument and should be transported and stored in a box, for long term protection.
Page 17 English Instruction Manual TAP / Temperature And Pressure Gauge Setup and operation TAP CLAMP Set-up Insert 3 x 1.5 V (AAA) batteries in the battery compartment TAP CLAMP of the TAP CLAMP. Ensure the batteries are inserted observing the correct polarities. Do not leave dead batteries in the battery compartment.
Page 18 If you will not be using the TAP pressure gauge for a long period of time, remove the batteries from the battery compartment. Switch on - Press [ON] button to switch on device. After start, REFCO-logo appears on display.
Page 19 English Instruction Manual TAP / Temperature And Pressure Gauge  Set TAP ID - Press [MENU] button 1 sec. to activate selection mode. TAP ID menu is selected.  - Press [SET] button 1 sec. to enter TAP ID menu. - Choose a TAP ID number by pressing [UP] or [DOWN] button <...
Page 20 Instruction Manual TAP, TAP-CLAMP / Temperature And Pressure Gauge English Note on R000: Additional function to select from table of refrigerant: If use entry „R000“ it means „Pressure only“. No readouts from chart. It gives the possibility to measure only pressure and temperature without any refrigerant chart temperatures shown.
Page 21 English Instruction Manual TAP / Temperature And Pressure Gauge  - Press [MENU] button 1 sec. to activate selection mode. temperature unit  - Press [DOWN] button 1 sec. to scroll down to the temperature unit menu.  - Press [SET] button 1 sec.
Page 22 Instruction Manual TAP, TAP-CLAMP / Temperature And Pressure Gauge English If pairing was successful, display shows "END". Paired TAP CLAMP is recognised on TAP display with T and relevant number (1 to 6). - If pairing was not successful, display shows "ERROR“. If this happens, repeat steps above and try again.
Page 23: Maintenance
English Instruction Manual TAP / Temperature And Pressure Gauge SD Mode This function is used in combination for update. See in chapter maintenance. P-Zero Resetting pressure sensor. See in chapter maintenance / Resetting pressure sensor Maintenance  A visual inspection of the connections and hoses must be carried out before each use to check for mechanical damage.
Page 24 Updating of refrigerants on TAP pressure gauge via Micro USB The TAP pressure gauge supports updates of refrigerant data via Micro USB. The latest refrigerant charts can be found at www.refco.ch Updating refrigerants 1. Ensure TAP pressure gauge is switched on.
Page 25 English Instruction Manual TAP / Temperature And Pressure Gauge Calibration The accuracy of all measuring devices will degrade over time. Calibration improves the accuracy of the TAP. On this device temperature and pressure can be re-calibrated. Temperature calibration can be done using two procedures: calibration using ice water as reference or by using room temperature as reference.
Page 26 Instruction Manual TAP, TAP-CLAMP / Temperature And Pressure Gauge English 2. Turn off the clamp. 3. While holding [UNIT], press [ON / OFF] until display shows "CALL" 4. Release both buttons, the display shows "00" 5. Press [UNIT] button < 1 sec. to adjust the number to "06" 6.
Page 27 English Instruction Manual TAP / Temperature And Pressure Gauge Calibration of pressure gauge Pressure calibration 1. Turn off the TAP. 2. While holding [UP / MENU] button, press [ON / OFF] button, the display shows „P-CALL“ 3. Press [DOWN / SET] button until the display shows „Password 00“ 4.
Page 28: Guarantee
Regular quality control checks as well as an accurate manufacturing process guarantee reliable functionality and are the basis for the REFCO guarantee, in accordance with the General Terms and Conditions of Sale and Delivery applicable on the day of delivery.
Page 30 Deutsch Bedienungsanleitung DIGIMON / DIGIMON4 REFCO Manufacturing Ltd. Industriestrasse 11 6285 Hitzkirch - Switzerland Telefon +41 41 919 72 82 Telefax +41 41 919 72 83 info@refco.ch www.refco.ch...
