Westin 57-93985 Installation Instructions Manual

ITEM QUANTITY
1 1
2 1
3 1
4 1
5 1
6 4
7 8
8 8
9 4
10 6
11 6
12 12
13 6
14 4
15 4
16 4
17 2
18 1
HARDWARE ITEMS BELOW ARE INCLUDED WITH THE GRILLE GUARD KIT
19 1
20 1
21 2
22 2
23 2
24 6
25 6
26 6
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-5793985A-RevB ECO #: W21-0026
INSTALLATION INSTRUCTIONS

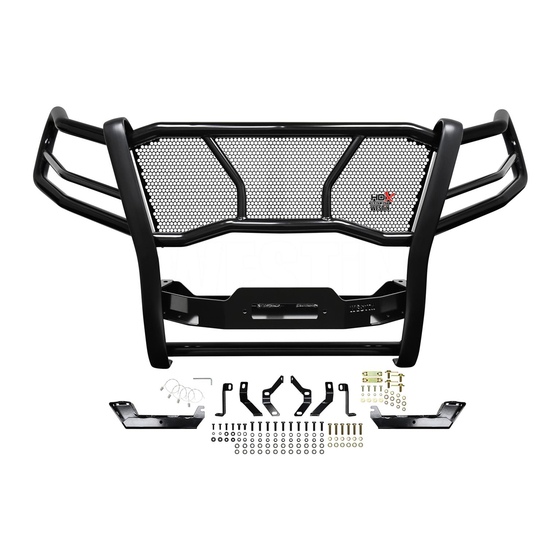

MAX WINCH TRAY, WINCH MOUNT GRILLE GUARD
APPLICATION:
2019-2021 Ford Ranger
PART NUMBER:
Winch Tray Kit: 46-23985
Grille Guard Kit: 57-93985A
DESCRIPTION
MAX WINCH TRAY
LOWER DRIVER MOUNTING BRACKET
LOWER PASSENGER MOUNTING BRACKET
LOWER SUPPORT BRACKET
LOWER SUPPORT BRACKET
M12 HEX HEAD CAP SCREW (YELLOW ZINC)
M12 SPLIT LOCK WASHER (YELLOW ZINC)
M12 FLAT WASHER (YELLOW ZINC)
M12 HEX NUT (YELLOW ZINC)
M12 HEX HEAD CAP SCREW (BLACK ZINC)
M12 SPLIT LOCK WASHER (BLACK ZINC)
M12 FLAT WASHER (BLACK ZINC)
M12 HEX NUT (BLACK ZINC)
M12 RETAINER
M12 FISH WIRE
M12 BOLT PLATE
M12 NUT PLATE
WINCH MOUNT HDX GRILL GUARD
UPPER SUPPORT STRAP GRILLE DRIVER SIDE
UPPER SUPPORT STRAP GRILLE PASSENGER SIDE
M10 BUTTON HEAD BOLT (BLACK ZINC)
M10 CUP WASHER (BLACK ZINC)
M10 SERRATED FLANGE NUT (BLACK ZINC)
M12 BUTTON HEAD BOLT (BLACK ZINC)
M12 CUP WASHER (BLACK ZINC)
M12 SERRATED FLANGE NUT (BLACK ZINC)
1
Kit Number: 57-93985
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
13MM SOCKET
15MM SOCKET
18MM SOCKET
19MM SOCKET
21MM SOCKET
13MM WRENCH
15MM WRENCH
18MM WRENCH
19MM WRENCH
21MM WRENCH
TORQUE WRENCH
PRY TOOL
ALLEN KEY SET
RATCHET
DATE: 07/12/2021
