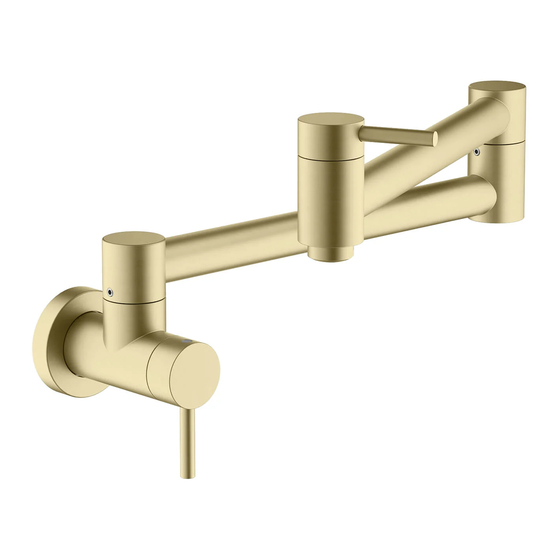

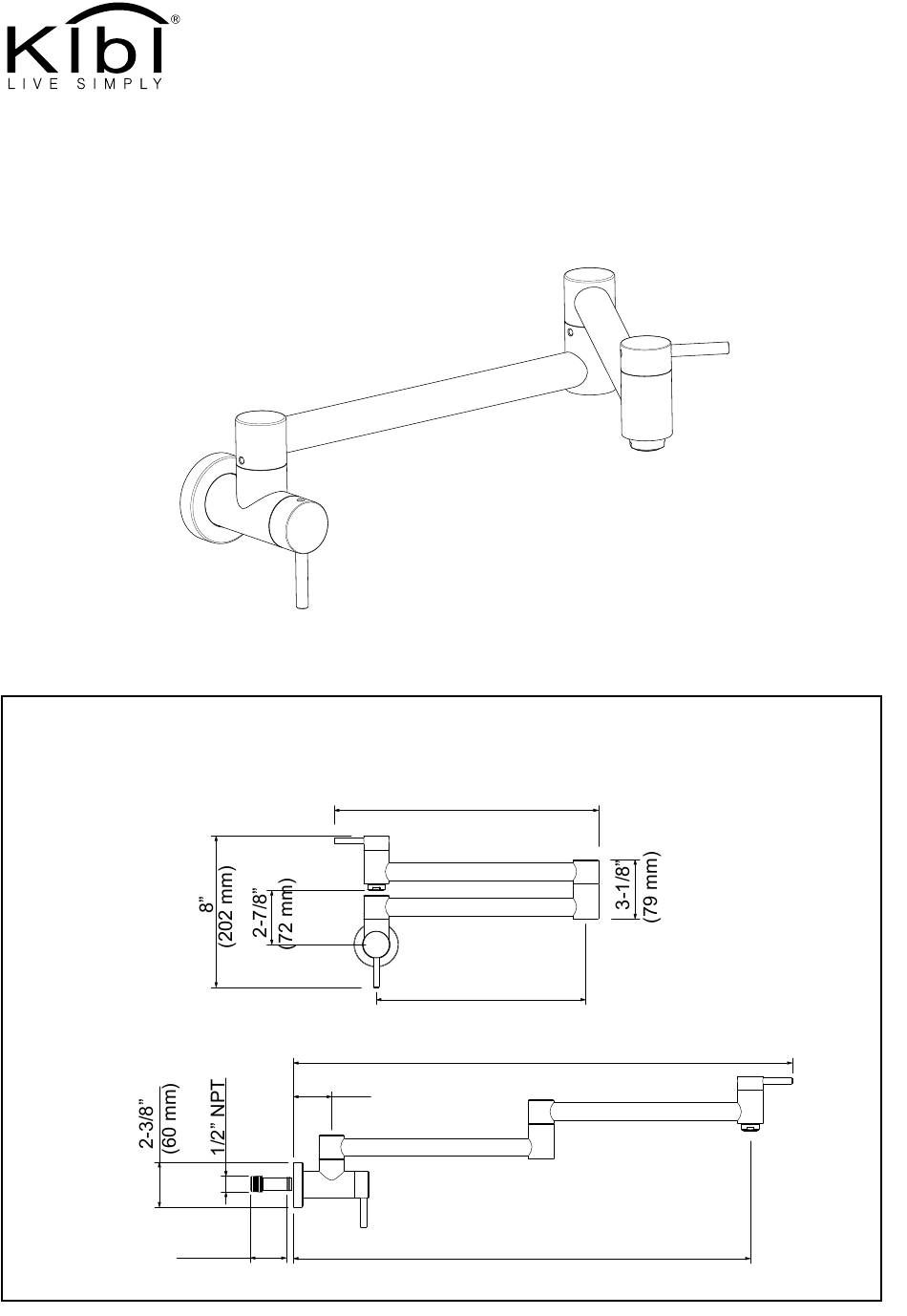

- Page 1 Model: Circular-KPF601 INSTALLATION GUIDE DIMENSIONS Critical dimensions in mm 13-7/8” (353 mm) 11” (280 mm) 26-1/4” (667 mm) 2” (51 mm) 1-1/4” 24” (29 mm) (611 mm)
- Page 2 PARTS INSTALLATION The Mounting Adapter must be installed on Wall Studs or CAUTION Wood Blocking between Wall Studs and secured with screws. Wall Studs Wood Blocking O-ring Mounting Adapter 1/2” NPT Connector Wood Blocking Wood Blocking Wall Board Wall Board Finished Wall Finished Wall Install the 1/2"...
- Page 3 INSTALLATION The mark positions should avoid the pipes CAUTION behind the wall. Place MOUNTING ADAPTER (1) onto the faucet as Drill 3/32" holes where marked. If using the anchors, shown. Using the MOUNTING ADAPTER (1) as a drill 1/4" holes. template, mark the positions of the screw holes.
- Page 4 Finish warranty: A 5-year warranty is provided on all KIBI faucet finishes to the original purchaser against manufacturing defects in materials and workmanship. At its sole discretion, KIBI will repair or replace any part or finish that proves to be defective in material and/or workmanship under normal installation, use and service.
