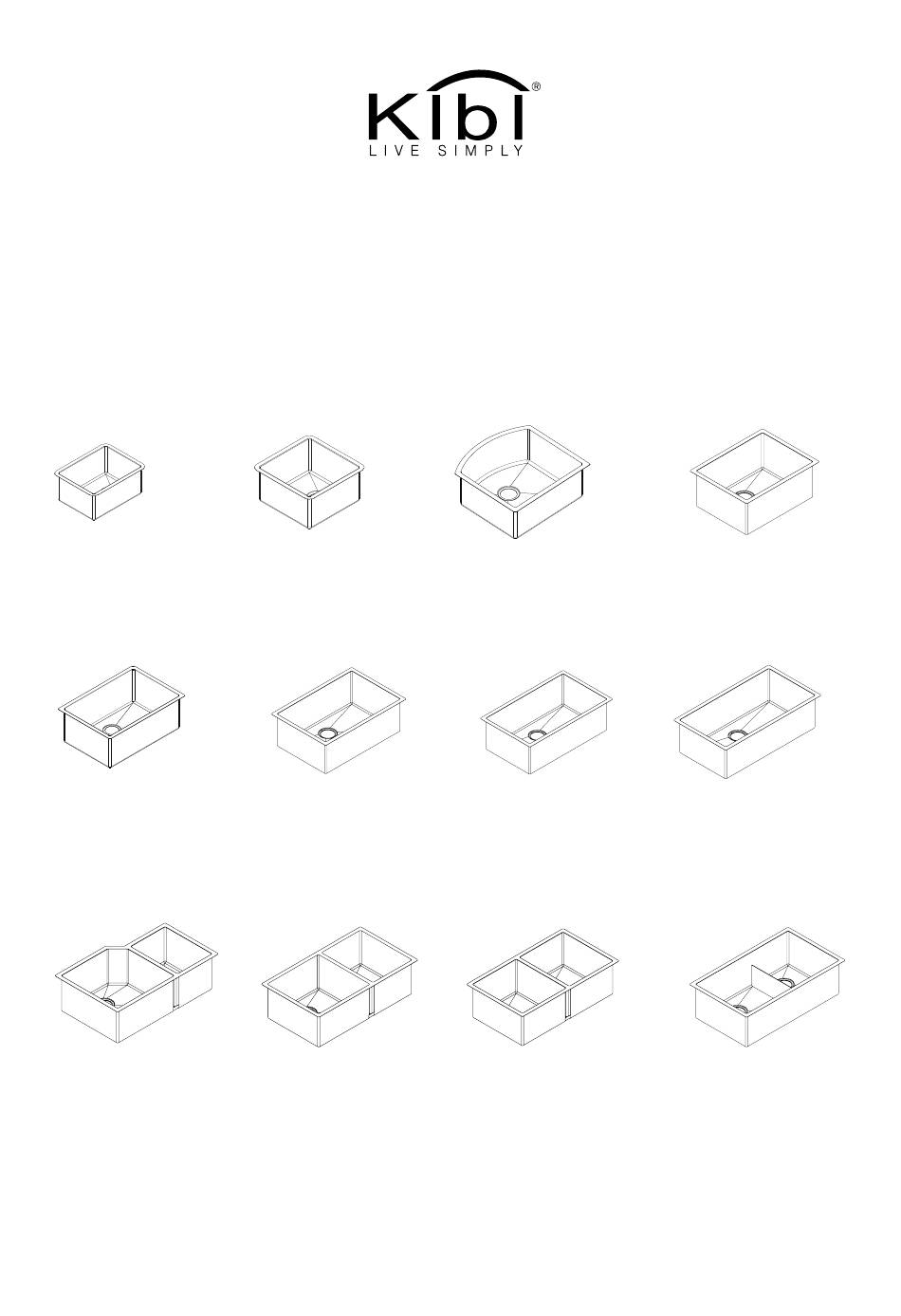

- Page 1 Installation Guide Handmade Stainless Steel Undermount Kitchen Sink K1-S14 K1-S16 K1-S22-D K1-S23 K1-S26 K1-S28 K1-S30 K1-S33 K1-D32 K1-D33-BS K1-D33-EQ K1-D33-LD www.kibiusa.com...
-
Page 2: Installation
5- Keep this booklet and the receipt (or other proof of date and place of purchase) for this product in a safe place. The receipt is necessary to request warranty parts. 6- KIBI does not accept any liability for damage to countertop, sink fixture, faucets or personal injury during installa- tion. Warranty is void if installation guide is not followed. - Page 3 Determine Reveal Type KIBI Undermount sinks can be installed in three different types: Use scissors to cut along the line of paper template for your desired reveal type (Negative, Positive or Flushed reveal) 1/8“ Negative Reveal Flushed/Zero Reveal KIBI Recommended Installation type 3/8“...
- Page 4 Installation Unpack the new sink and check the contents of the materials supplied: Sink, Mounting brackets, and Cutout template (depending on model). Contact your retailer if any product is damaged or missing prior to installation. Never install a damaged sink as it can void your warranty. Determine the installation type you prefer, cut out the appropriate template for your sink model.
- Page 5 Installation Install anchors into drilled holes and lightly tap Apply a bead of silicone adhesive (not included) to the with a hammer until flush. sink edges. Do not use epoxy. Position the sink in the opening. Tighten the fasteners until just snug. Check the alignment of the sink in the opening.
- Page 6 [355.6 mm) (304.8 mm) K1-S14 K1-S16 14”X18”X8” 16”X16”X8” Min Cabinet Size: 18” Min Cabinet Size: 18” 23" 22 " (584.2 mm) 21" 20 " (533.4 mm) 1" (25.4 mm) K1-S22-D K1-S23 22”X21”X9” 23”X18”X10” Min Cabinet Size: 27” Min Cabinet Size: 27”...
- Page 7 Dimensions 26” 28" (660 mm) (711.2 mm) 24” 26" (610 mm) (660.4 mm) Φ3-1/2” (Φ90 mm) 1" (25.4 mm) 1” (25.4 mm) K1-S26 K1-S28 26”X18”X10” 28”X19”X10” Min Cabinet Size: 30” Min Cabinet Size: 30” 32-3/4" 30" (832 mm) (762 mm) 30-3/4"...
- Page 8 Dimensions 32-3/4" (832 mm) 16-7/8" 12-7/8" (428.9 mm) (326.9 mm) 1" (25.4 mm) 1" 1" 1" (25.4 mm) (25.4 mm) (25.4 mm) 18" 11" (457.2 mm) (279.4 mm) 32" (812.8 mm) K1-D32 K1-D33-BS 32”X20”X10” 32-3/4”X19”X10” Min Cabinet Size: 36” Min Cabinet Size: 36” 32-3/4"...
-
Page 9: Troubleshooting
Trouble-Shooting If you’ve followed the instructions carefully and your sink still does not work properly, take these corrective steps. Trouble - Shooting PROBLEM ACTION Use a nylon pad with an iron-free abrasive polishing compound. Follow the direction of the original brush lines and the scratch will disappear as it’s blended into the original finish. Be Scratches careful to not polish too aggressively since you’ll polish out the original brush lines and end up with a shiny spot. - Page 10 If left on the sink too long it can cause • This warranty applies to residential installations only. surface pitting. • Kibi reserves the right to examine product in question and its installation prior to replacement. Never use a steel wool pad to clean your sink. Doing so may •...
- Page 12 www.kibiusa.com...
