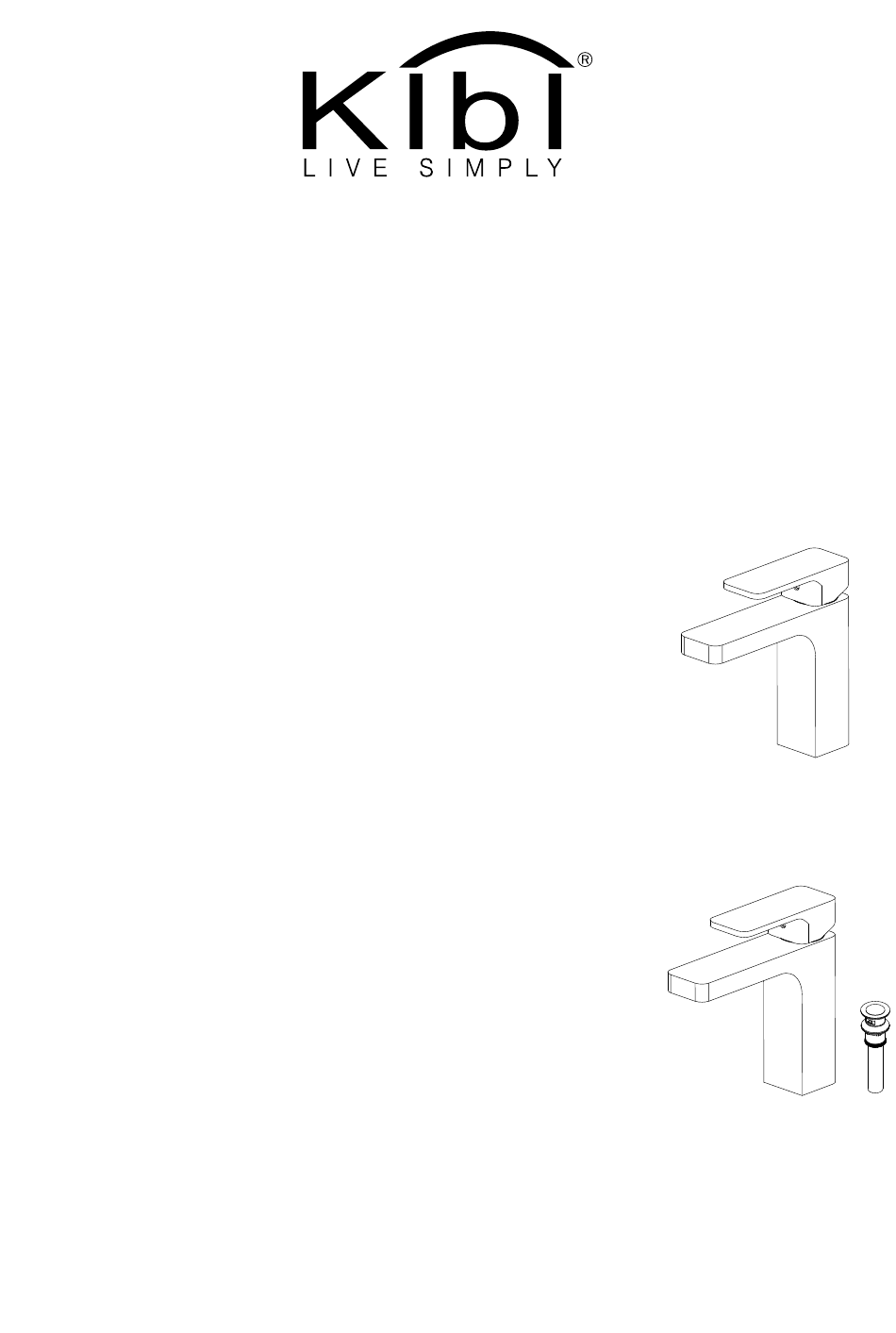

- Page 1 Installation Guide Blaze KBF1017 Faucet Only Blaze C-KBF1017-KPW100 Faucet with Pop up Drain www.kibiusa.com...
-
Page 2: Before Installation
Contact KIBI VOLUME-C 855-883-0888 ✉ support@kibiusa.com �� www.kibiusa.com PRIOR TO INSTALLATION 1- For best results, we recommends that this unit be installed by a licensed, professional plumber. - Page 3 Dimensions Critical dimensions show in mm KBF1017 1-3/4” (44 mm) 5” (126 mm) Φ1-3/8” (Φ35 mm) Supply line with 3/8" compression C-KBF1017-KPW100 1-3/4” (44 mm) 2-7/16” (Φ62 mm) 2-7/16 (max 62 mm) Φ1-5/8” 5” G1-1/4 Thread (126 mm) 1-1/4” Φ1-3/8” (Φ32 mm) (Φ35 mm) Supply line with 3/8"...
-
Page 4: Parts List
Parts List KBF1017 Plug Internal hex screw Handle M5x5 Cover Bonnet Nut CT35UH001 Cartridge Allen Key 2.5mm 452060000 Aerator Water Line Rubber Washer M10_3/8”_27-1/2” Long Screws Rubber Washer Metal Washer Mounting Screw Mountig Screws C-KBF1017-KPW100 Plug Internal hex screw Handle M5x5 Cover Bonnet Nut... -
Page 5: Faucet Installation
Faucet Installation Shut off water suppliers. Remove the old faucet, clean the Remove the mounting hardware from the mounting mounting surface. pipe. Note: For first time install, flush the pipes first by open the angel valve to run 60s. Put the rubber O-ring into the bottom gap of From below the sink, Slide rubber washer, metal washer faucets then Insert faucet into faucet hole. - Page 6 Pop-up drain Installation Remove all components from drain piece including: thin and thick silicone washer, hard washer, drain nut and tail piece. Insert thick silicone washer and hard washer over the Insert drain and thin silicone washer into basin. Apply exposed mail threaded area and screw drain nut onto Teflon to the exposed male threading area of drain piece.
-
Page 8: Troubleshooting
Here are the details of our warranty policy: Kibi USA warrants the structure and finish of the faucets and accessories to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the product was first installed.
