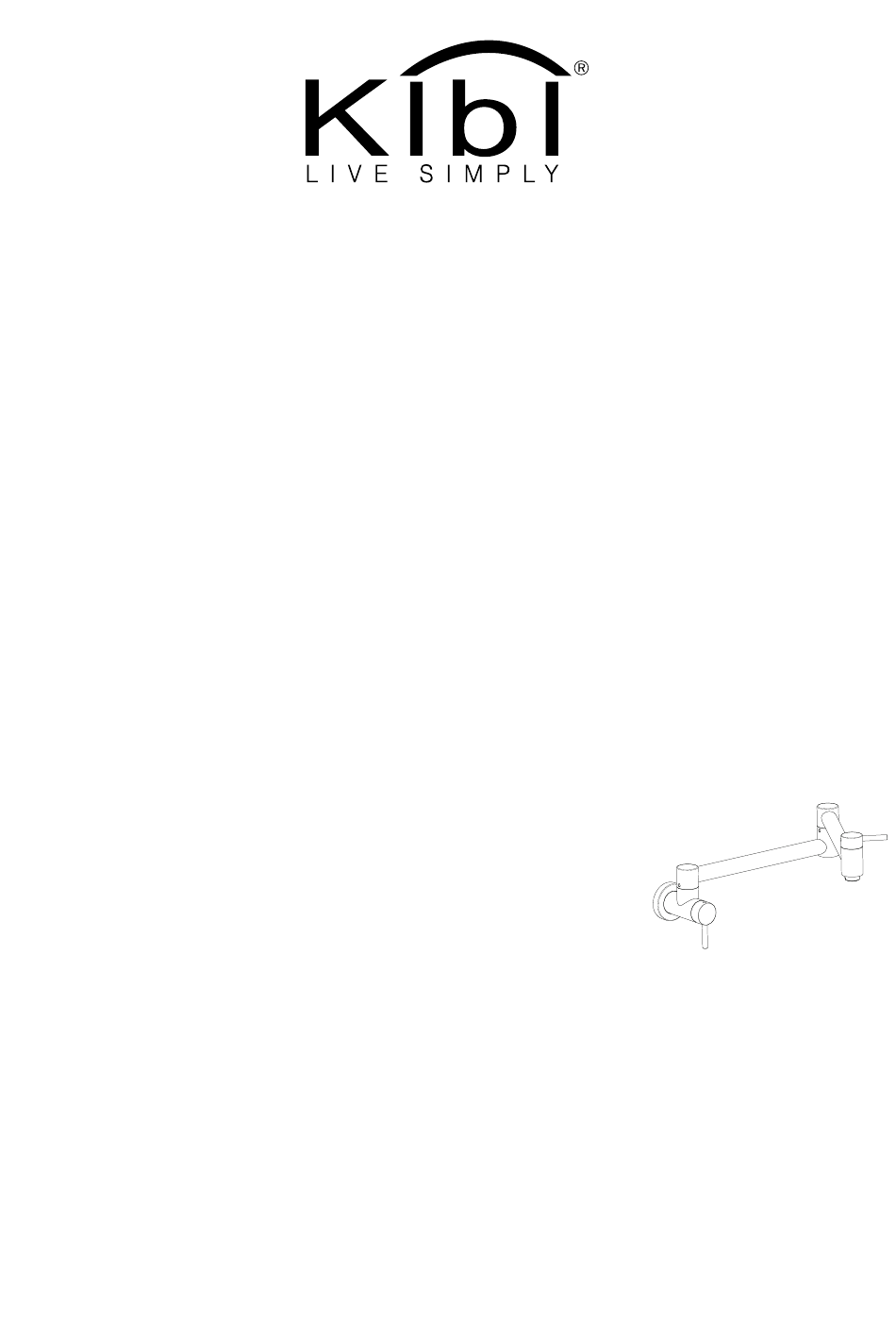

- Page 1 Installation Guide Circular KPF601 www.kibiusa.com...
-
Page 2: Before Installation
Contact KIBI VOLUME-C 855-883-0888 ✉ support@kibiusa.com �� www.kibiusa.com PRIOR TO INSTALLATION 1- For best results, we recommends that this unit be installed by a licensed, professional plumber. - Page 3 Dimensions Critical dimensions show in mm 13-7/8” (353 mm) 11” (280 mm) 26-1/4” (667 mm) 2” (51 mm) 3-3/8” 24” (85 mm) (611 mm) 2 1/8" (55 mm) 1 3/4" (46 mm)
-
Page 4: Parts List
Parts List 1/2NPT Quick Connect Nipple Fitting Mounting Adapter Handle Assembly Cover Screws Cartridge 402007000 Aerator... -
Page 5: Faucet Installation
Faucet Installation The Mounting Adapter must be installed on Wall Studs or Wood Blocking between Wall Studs and secured with screws. CAUTION This faucet is for use with cold water only. Do not connect it to the hot water supply. Wall Studs 2”x6”... - Page 6 Faucet Installation Do not drill into hidden electrical or CAUTION plumbing lines. Place Mounting Adapter (1) onto the 1/2NPT Quick Drill the screws holes. Connect Nipple Fitting(2) as shown. Using the Mounting Adapter (1) as a template, mark the positions of the screw holes.
- Page 7 User Instructions Front View Front View Risk of Injury CAUTION The pot filler may become hot when the arm is positioned above a hot stove burner. Always push the pot filler away from the burner after use. �� �� ⚠...
-
Page 8: Troubleshooting
Here are the details of our warranty policy: Kibi USA warrants the structure and finish of the faucets and accessories to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the product was first installed.
