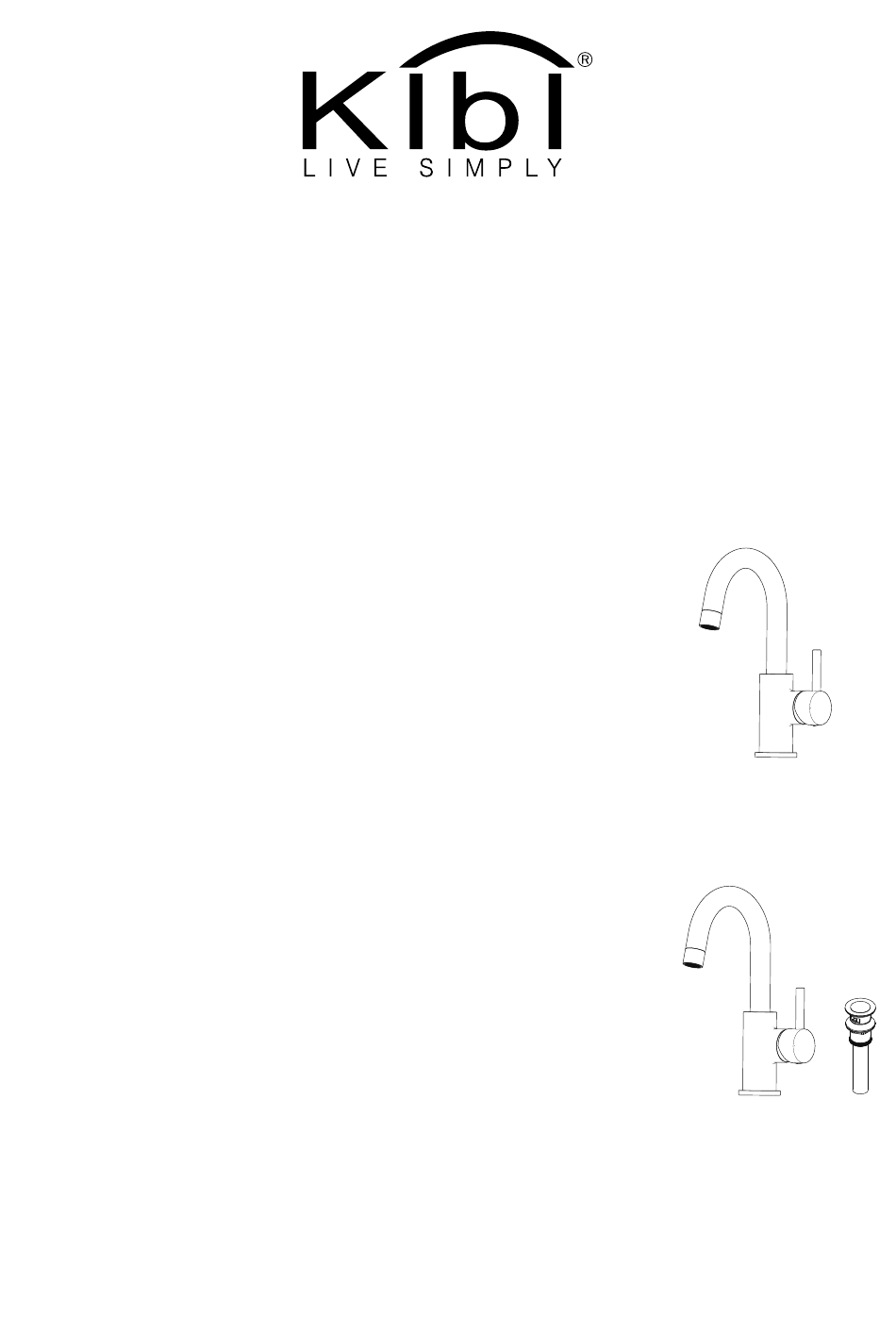

- Page 1 Installation Guide Circular KBF1021 Faucet Only Circular C-KBF1021-KPW100 Faucet with Pop up Drain www.kibiusa.com...
-
Page 2: Before Installation
Contact KIBI VOLUME-C 855-883-0888 ✉ support@kibiusa.com �� www.kibiusa.com PRIOR TO INSTALLATION 1- For best results, we recommends that this unit be installed by a licensed, professional plumber. - Page 3 Dimensions Critical dimensions show in mm KBF1021 3-7/16 (87 mm) 1-15/16 (50 mm) 5-1/16 Φ1-3/8" (129.5 mm) (35 mm) Supply line with 3/8" compression C-KBF1021-KPW100 3-7/16 2-7/16” (87 mm) (Φ62 mm) 2-7/16 (max 62 mm) Φ1-5/8” G1-1/4 Thread 1-15/16 1-1/4” (50 mm) (Φ32 mm) 5-1/16...
-
Page 4: Parts List
Parts List KBF1021 Spout 432260010 Aerator SN-35 S/D Cartridge Bonnet Nut Service key for Aerator Cover Handle Allen Key O-ring 2.5mm Water Line Internal hex screw Long Screws M5x5 M10_3/8”_27-1/2” Plug Rubber Washer Metal Washer Mounting Screw Mountig Screws C-KBF1021-KPW100 Spout 432260010 Aerator... -
Page 5: Faucet Installation
Faucet Installation Shut off water suppliers. Remove the old faucet, clean the Remove the mounting hardware from the mounting mounting surface. pipe. Note: For first time install, flush the pipes first by open the angel valve to run 60s. Put the rubber O-ring into the bottom gap of From below the sink, Slide rubber washer, metal washer faucets then Insert faucet into faucet hole. - Page 6 Pop-up drain Installation Remove all components from drain piece including: thin and thick silicone washer, hard washer, drain nut and tail piece. Insert thick silicone washer and hard washer over the Insert drain and thin silicone washer into basin. Apply exposed mail threaded area and screw drain nut onto Teflon to the exposed male threading area of drain piece.
-
Page 8: Troubleshooting
Here are the details of our warranty policy: Kibi USA warrants the structure and finish of the faucets and accessories to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the product was first installed.
