Bretford EDUPST-CTALMP Assembly Instructions Manual

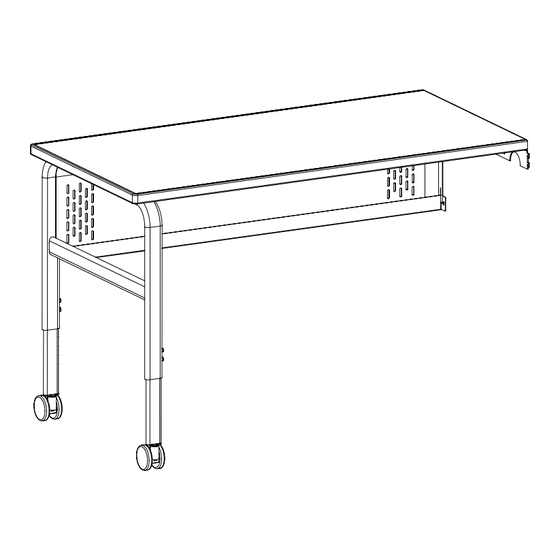

Shuttle side table

Download this manual

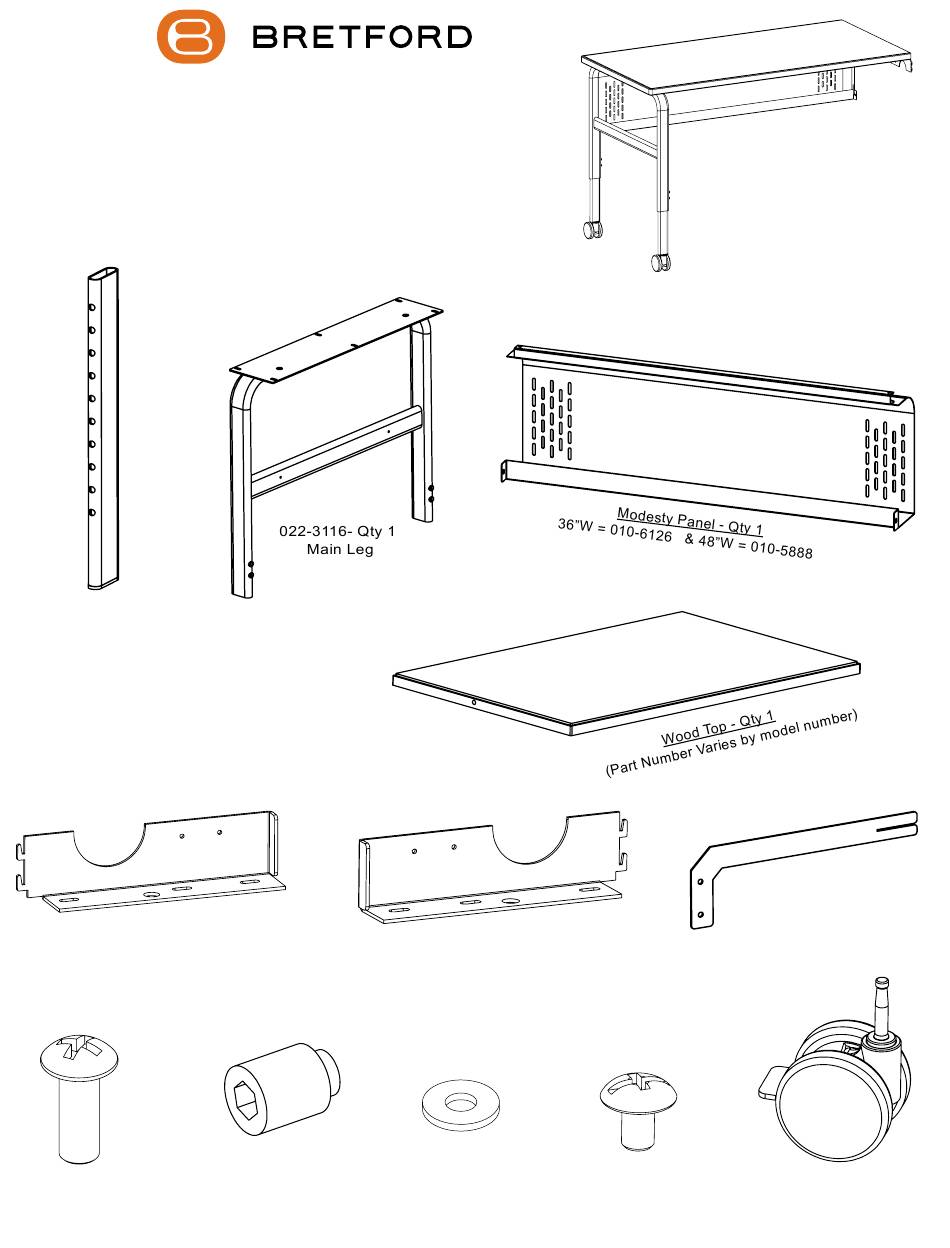

017-1075 - Qty 2

Lower Leg

010-5923 - Qty 1

Bracket

030-0402 - Qty 24

#10-32 x 5/8" Combo Screw

Shuttle Side Table

Assembly Instructions

030-0396 - Qty 4

3/8-16 x 1/2" Socket

Set Screw

010-5924 - Qty 1

Bracket

030-0913 - Qty 2

Flat Washer

030-1228 - Qty 2

#8-32 x 1/4" Truss Screw

010-5881 - Qty 1

Modesty Pnl Bracket

015-0175 - Qty 2

2 1/2" Stem Caster

rake

w/B

1 of 9

Need help?

Do you have a question about the EDUPST-CTALMP and is the answer not in the manual?

Page 1 Shuttle Side Table Assembly Instructions 017-1075 - Qty 2 Lower Leg 010-5881 - Qty 1 Modesty Pnl Bracket 010-5923 - Qty 1 010-5924 - Qty 1 Bracket Bracket 030-0913 - Qty 2 030-0396 - Qty 4 Flat Washer 030-1228 - Qty 2 3/8-16 x 1/2”...
Page 2 This side of the leg MUST always face the interior of the wood top. Main Leg (1)x 030-0402 (6)x Wood Top 2 of 9...
Page 3 015-0175 (2)x Lower Leg (2)x 3 of 9...
Page 4 25” 26” 27” 28” 29” 30” 31” 32” This screw determines height when aligned with leg adjustment holes. 030-0396 (4)X 4 of 9...
Page 5 This side of the bracket MUST always face the outer edge of the wood top. Brackets (2)X Leave screws loose for now. 030-0402 (6)X 5 of 9...
Page 6 Depending on which side the table will be attached to the shuttle, you may need to reverse the attachment of the modesty panel to the top by 180°. Modesty Panel (1)x 030-0402 (2)x 6 of 9...
Page 7 030-0402 (1)x 7 of 9...
Page 8 Modesty Panel Bracket (1)x 030-0913 030-1228 (2)x (2)x 8 of 9...
Page 9 The tabs will snap into the tubes. Push the brackets into the tubes to lock in place. Make sure top is level and fully tighten the screws in the brackets. Push brackets inward prior to attachment Push brackets outward after attachment Bretford Breftord Ltd. 11000 Seymour Avenue 2 Etongate...
