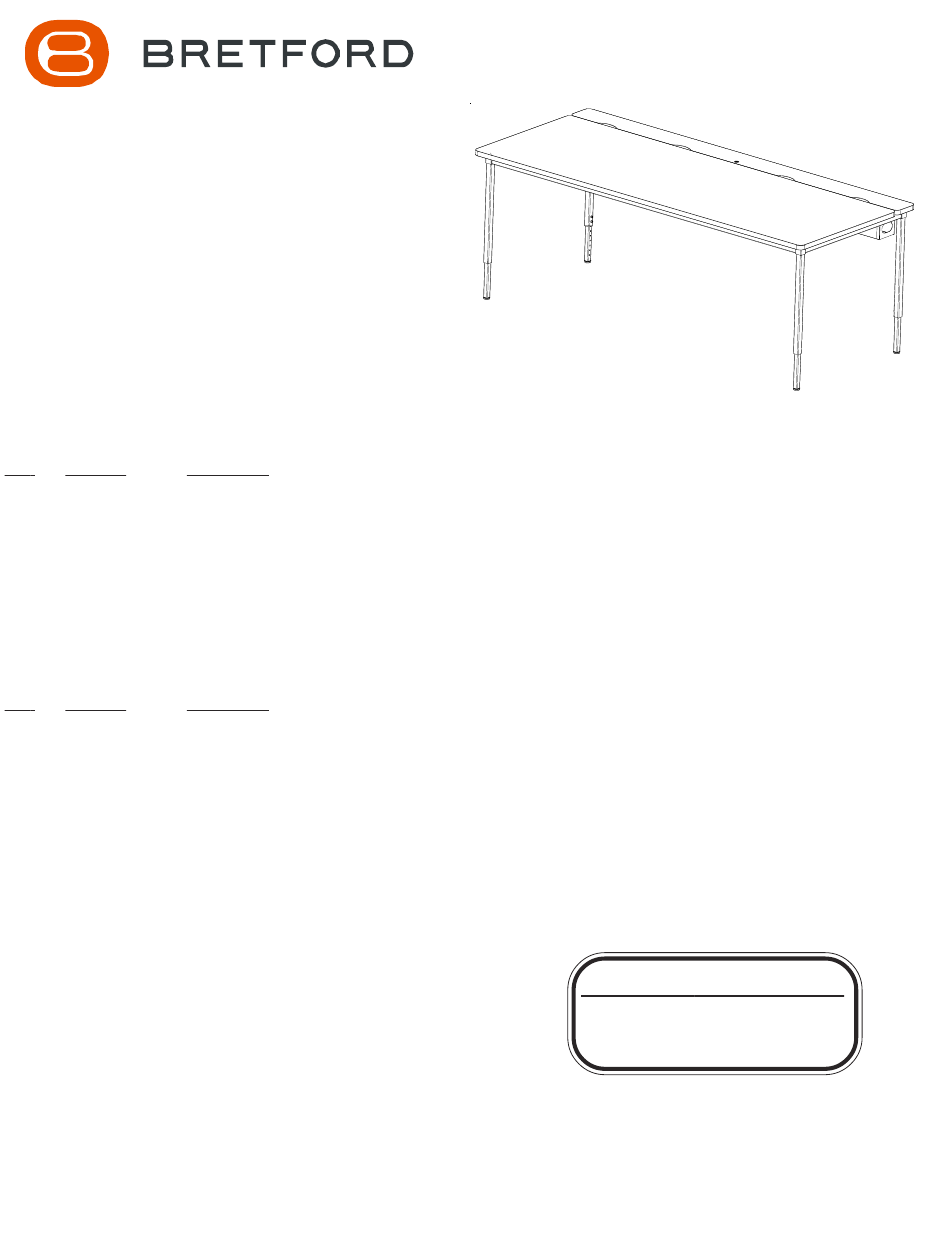

FLIP TOP
QUATTRO TABLES
Assembly Instructions
Parts List
Qty.
Part No.
4
010-3511
4
017-0686
4
017-1026
1
**
**Part number varies with each size table.
Hardware List
Qty.
Part No.
8
030-0396
4
030-0852
4
015-0084
**
030-0383
Description
Corner Ties
Bottom Legs
Top Legs
Worksurface & Flip Up Top Assembly
Description
3/8-16 x 1/2" Set Screws
5/16-18 x 1-1/4" Hex Flange Cap Screws
3/8-16 Glides
#10 x 1/2" Truss Head Screws
**(3) For 30" or 36" Cord Bins
**(5) For 42" or 48" Cord Bins
**(7) For 60" Cord Bins
**(9) For 72" or 84" Cord Bins
Tools Required
Phillips Screwdriver
Allen Wrench
Adjustable Wrench
SAFETY WARNING
Note: TWO PERSON
ASSEMBLY REQUIRED
Advertisement
Related Manuals for Bretford FLIP TOP QUATTRO TABLE
Summary of Contents for Bretford FLIP TOP QUATTRO TABLE
- Page 1 FLIP TOP QUATTRO TABLES Assembly Instructions Parts List Qty. Part No. Description 010-3511 Corner Ties 017-0686 Bottom Legs 017-1026 Top Legs Worksurface & Flip Up Top Assembly **Part number varies with each size table. Hardware List Tools Required Qty. Part No. Description Phillips Screwdriver 030-0396...
- Page 2 All Leg Holes Face Inward STEP 1 Lay wood top on a carpeted surface as shown. Insert a leg into each corner. The holes on the front legs should face to the inside of the table. The back leg holes can face each other or to the inside of the table which ever you prefer. NOTE: The view shown has all leg holes facing into the table.
- Page 3 Glide 015-0084 STEP 3 Screw glides (015-0084) into bottom legs (017-0686). Bottom Leg Glides should be fully installed into legs so that the 017-0686 entire stem is inside of leg. STEP 4 Position holes in legs so that they face each other.
- Page 4 Position the cord bin between the back legs. Hook the cord bin flange under the skirt flange (FIGURE 1). Then secure cord bin to top using the #10 x 1/2" screws (030-0383) as shown in FIGURE 2. Carefully turn table over. Bretford Bretford Ltd. 11000 Seymour Avenue 2 Etongate Franklin Park, IL 60131 110 Windsor Road TEL: 847.678.2545...
