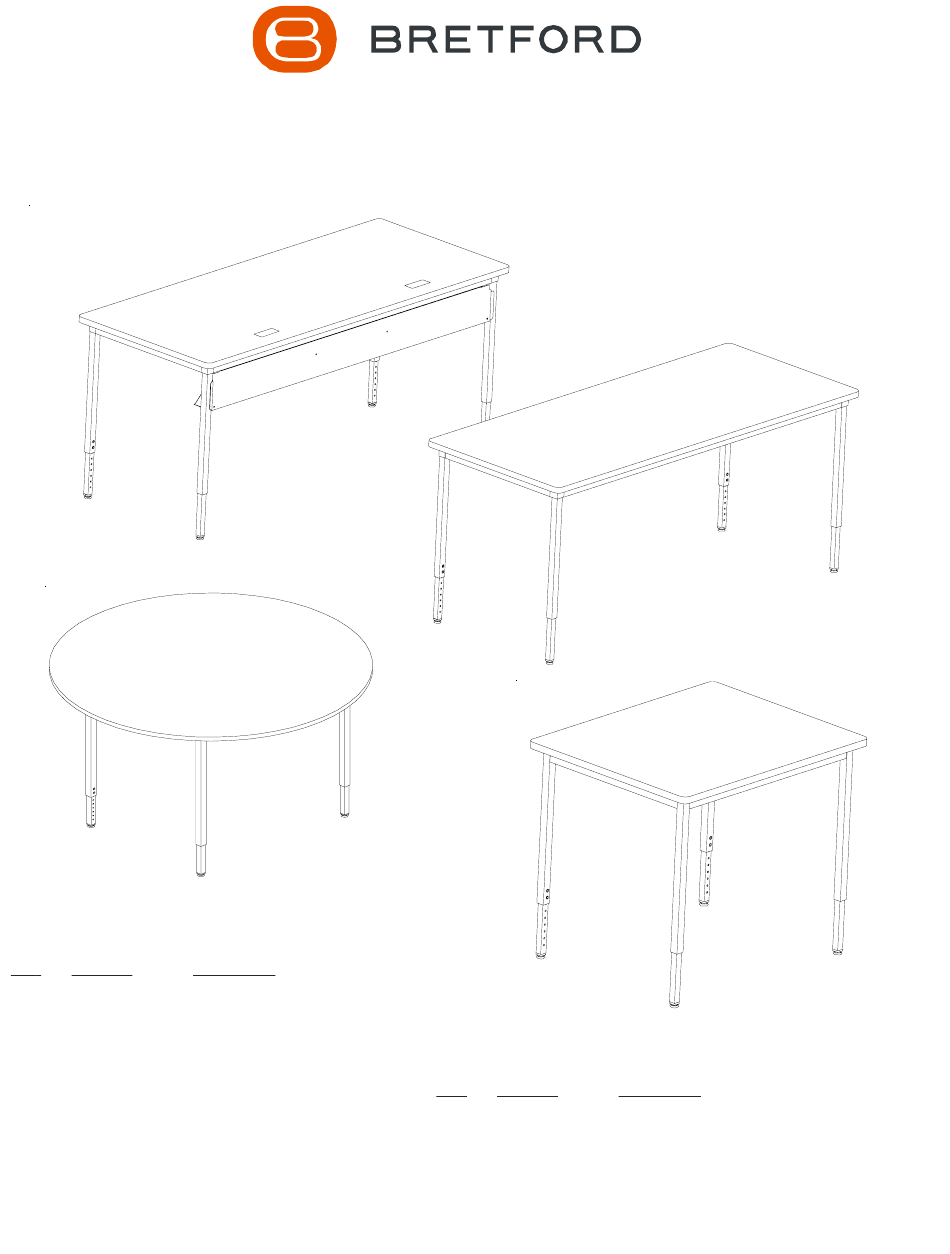

QUATTRO TABLES
Assembly Instructions
Computer Table
Round Work Table
Description
Corner Ties
Bottom Legs
Top Legs
3/8-16 Glides
Bin Mounting Bracket
(For Computer Tables Only)
Hardware List
Qty.
Part No.
8
030-0396
2
030-0357
2
030-0402
4
030-0852
Work Table
Square Work Table
Description
3/8-16 x 1/2" Set screw
#10-32 Flanged Hex Serrated Nut
(For Computer Tables Only)
#10-32 x 5/8" Black Combo Head Screw
(For Computers Tables Only)
5/16-18 x 1-1/4" Hex Flange Cap Screw
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bretford QUATTRO Computer Table
Summary of Contents for Bretford QUATTRO Computer Table
- Page 1 QUATTRO TABLES Assembly Instructions Computer Table Work Table Round Work Table Parts List Qty. Part No. Description 010-3511 Corner Ties Square Work Table 017-0686 Bottom Legs 017-1026 Top Legs 015-0084 3/8-16 Glides Hardware List 010-3520 Bin Mounting Bracket (For Computer Tables Only) Qty.
- Page 2 SAFETY WARNING Note: TWO PERSON ASSEMBLY REQUIRED Step 1 Lay wood top on a carpeted surface with holes facing upward. Insert the legs into each corner with holes facing in as shown. Corner tie 5/16-18 x 1-1/4" 010-3511 030-0852 Step 2 Attach legs with 5/16-18 x 1-1/4"...
- Page 3 Glide 015-0084 Bottom leg 017-0686 3/8-16 x 1/2" Set screw 030-0396 Step 3 Step 4 Screw glides (015-0084) into bottom legs (017-0686). Position holes in legs so that they face each other. Insert Glides should be fully installed into legs so that the bottom legs into top legs.
- Page 4 (For tables with cord bin only) Attach brackets to the cord bin as shown using #10-32 x 5/8" Combo screw (030-0402) and #10-32 Flanged hex nut (030-0357). Tighten all screws Bretford Bretford Ltd. 11000 Seymour Avenue 2 Etongate Franklin Park, IL 60131 110 Windsor Road TEL: 847.678.2545...
