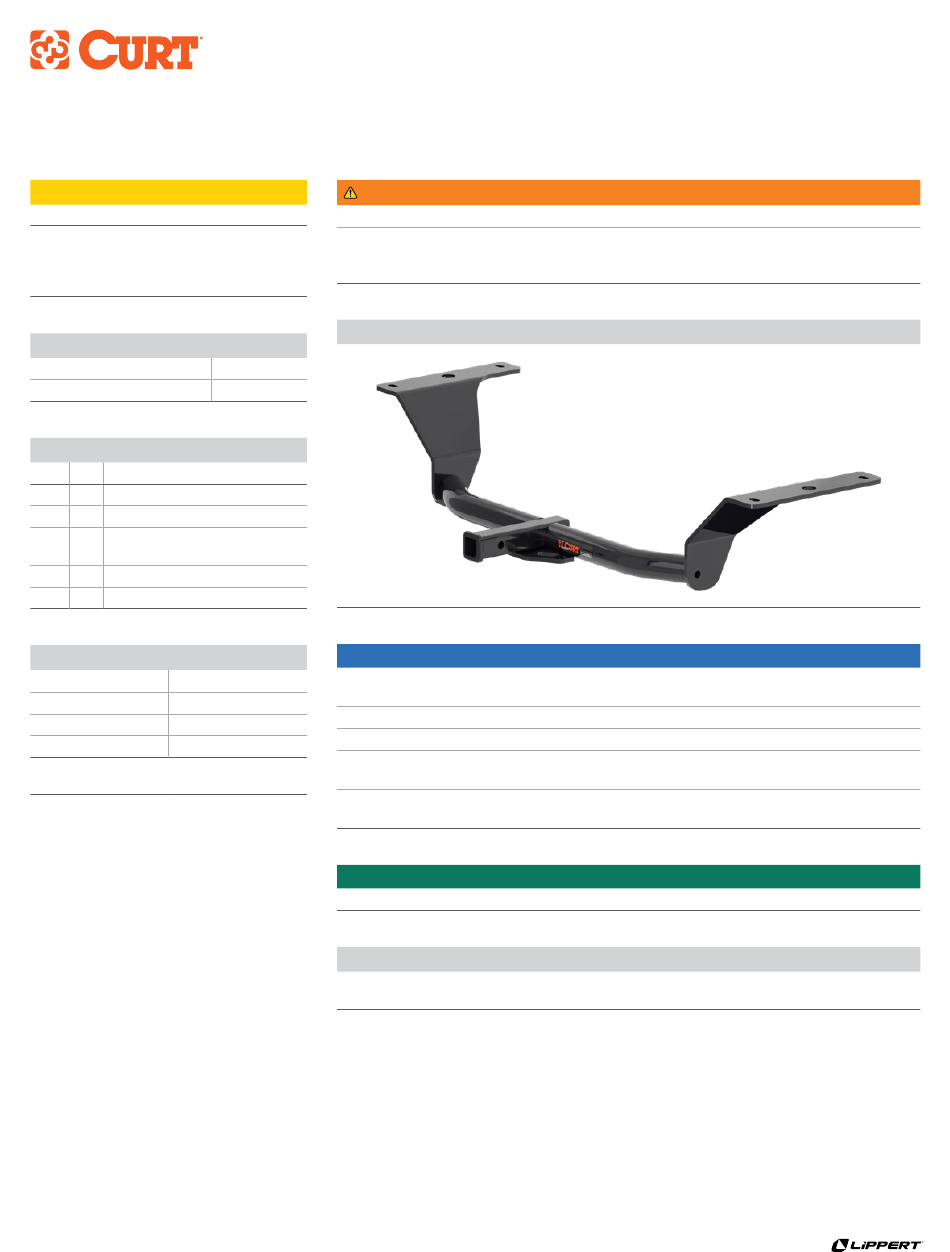

INSTALLATION MANUAL
Level of Difficulty
Moderate
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Weight Carrying Capacity
Gross trailer weight (GTW)
Tongue weight (TW)
Parts List
Item Qty Description
1
1
Trailer hitch
2
4
Carriage bolt, 7/16"
3
4
Square hole spacer,
2-1/4" x .88" x 1/4"
4
4
Serrated-flange nut, 7/16"
5
4
Fishwire, 7/16"
Tools Required
Socket, 11/16"
Drill
Socket, 10mm
Drill bit, 1/2"
Ratchet
Marker
Flathead screwdriver --
* For a tools reference guide visit
curtmfg.com/trailer-hitch-installation
CURTMFG.COM
PRODUCT SUPPORT: 877.287.8634
WARNING
Never exceed the vehicle manufacturer's recommended towing capacity.
All non-trailer (wheel-less) loads applied to this product must be
supported by stabilizing straps (part #18050). Please see the CURT
catalog or visit us online at www.curtmfg.com for further information.

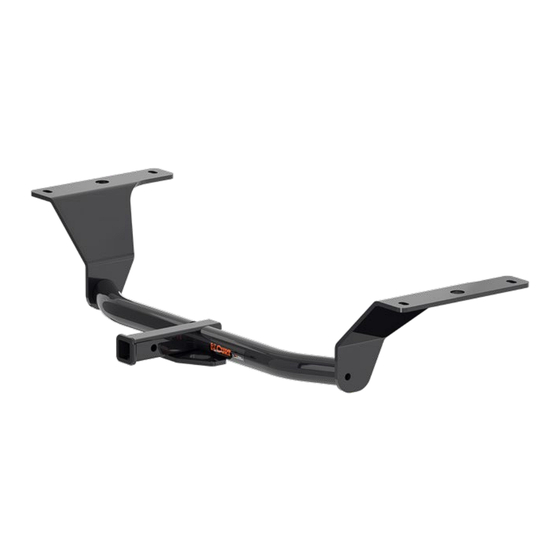

Product Photo
2,000 lbs.
200 lbs.
NOTICE
Visit www.curtmfg.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Periodic inspection of the trailer hitch should be performed to ensure all
mounting hardware remains tight and structural components are secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
SAFETY INSTRUCTIONS
Safety glasses should be worn at all times while installing this product.
Product Registration and Warranty
CURT stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
11630-INS-RA
12/16/2022
ECN10318
PAGE 1
11630

Advertisement

loading
Need help?

Need help?

Do you have a question about the 11630 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for curt 11630

  • Page 1 Safety glasses should be worn at all times while installing this product. Product Registration and Warranty CURT stands behind our products with industry-leading warranties. To get copies of the product warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys CURTMFG.COM •...
  • Page 2 fishwire to guide hitch during mounting and water on the hanger rod and the from the frame. prevent loss of bolt or spacer inside frame rail. rubber isolator helps removal. CURTMFG.COM • PRODUCT SUPPORT: 877.287.8634 • 11630-INS-RA • 12/16/2022 • ECN10318 • PAGE 2...
  • Page 3 Reverse fishwire a 7/16” carriage bolt (#2) and square hole spacer (#3) into the existing access hole in the frame rail on each side of the vehicle. CURTMFG.COM • PRODUCT SUPPORT: 877.287.8634 • 11630-INS-RA • 12/16/2022 • ECN10318 • PAGE 3...
  • Page 4 Reinstall the exhaust lowered in step 2. Trim 4-1/2" the lower body panel removed in step 1 using 3" the trim diagram for reference and reinstall. 2" 7" CURTMFG.COM • PRODUCT SUPPORT: 877.287.8634 • 11630-INS-RA • 12/16/2022 • ECN10318 • PAGE 4...
  • Page 5 Final Installed Image TOWING BASICS & SAFETY INFORMATION For information on safely towing your trailer, visit curtmfg.com/understanding-towing. CURTMFG.COM • PRODUCT SUPPORT: 877.287.8634 • 11630-INS-RA • 12/16/2022 • ECN10318 • PAGE 5...
