Summary of Contents for Loctite 1406023

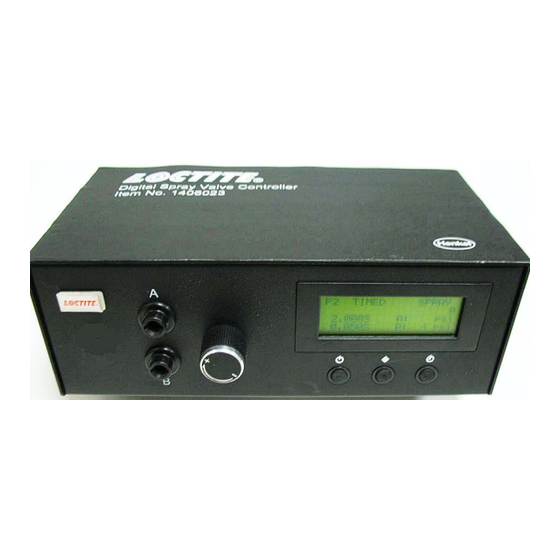

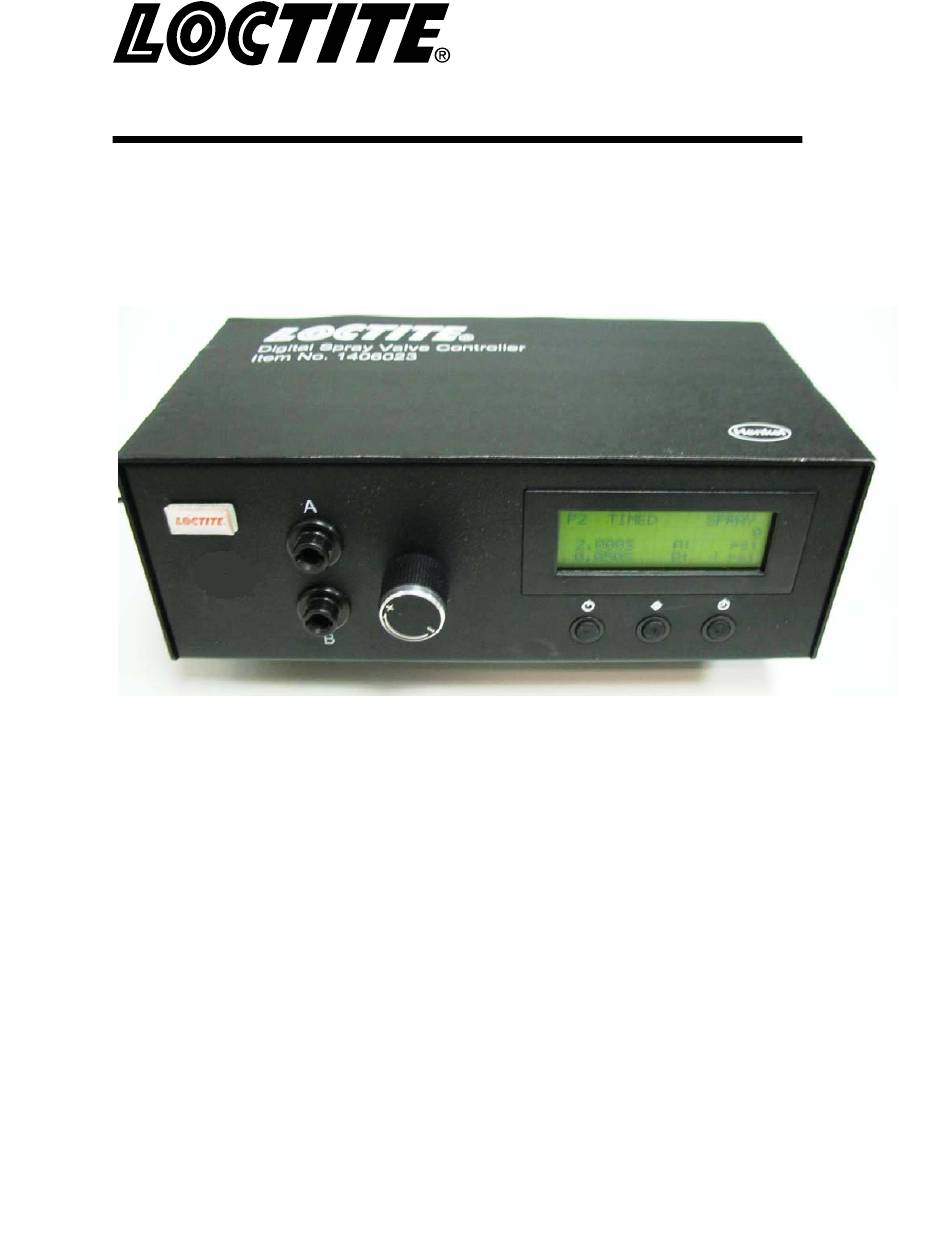

- Page 1 EQUIPMENT Operation Manual Loctite Spray Valve Controller Part Number 1406023...
-
Page 2: Table Of Contents
Table of Contents Please Observe The Following 1.1 Emphasized Sections 1.2 For your Safety 1.3 Unpacking and Inspection 1.4 Items Supplied 2 Description of System 3 Technical Data - Features 4 Installation 4.1 Space Requirements 4.2 Connecting the Unit 4.3 Program Selection 5 Operation 5.1 Manual Spray Mode 5.2 Automatic Spray Cycle... -
Page 3: Please Observe The Following
Use only original equipment replacement parts. Always disconnect the power supply before servicing the unit. ® Observe general safety regulations for the handling of chemicals such as Loctite adhesives and sealants. Observe the manufacturer’s instructions as stated in the Material Safety Data Sheet (MSDS). -
Page 4: Description Of System
The Loctite Digital Spray Valve Controller 1406023 is a microprocessor based ® control unit that provides a 3-segment time sequenced spray cycle for the Loctite Spray Valve 98520. The unit allows individual programming for each time segment Pre-spray atomizing ... -
Page 5: Technical Data - Features
Technical Data – Feature Descriptions 3.1 Technical Data Output Voltage Range 0-24 VDC Rated Power Air Input 100 psi (6.9 bar) Max. Air Output 0-100 Psi (6.9 bar) Pollution Degree Installation Category Indoor Use Altitude up to 2,000m (6,562ft) Operating Temperature 0˚C to 50˚C (32˚F to 122˚F) Storage Temperature -10˚C to 60˚C (14˚F to 140˚F) -
Page 6: Installation
Installation 4.1 Space/Support requirements 254mm x 191mm x 102mm Size (10” X 7.5” X 4.0”) Weight 2.6 kg (5.8 lbs) Symbol Definition Power On/Off Cycle Mode Connecting the Controller to Spray Valve CAUTION: The 5-micron filter must be TO AIR SOURCE installed with the unit to ensure proper air filtration Fig 2... -
Page 7: Program Selection
4.3. Program selection – UP to 10 individual programs can be saved (Use P1 for the first time use) Press the Set button (3) to highlight the program number selection. Press the (+) or (-) buttons to select desired program. Press the Set button (3) to exit. -
Page 8: Multiple Program Sequencing
5.3 Multiple Shot Programming Up to ten individual or sequential shots can be stored. Sequential mode is activated in numerical order. 1. Press and hold the Mode button (#2) for 2 seconds to turn on sequential mode 2. Press and release the Set button (#3) to enter the sequential program setup mode 3. -
Page 9: Low Pressure Alarm
System will not pressurize pressure Air hoses not plugged in Check connection Regulator defective Call 1-800 - Loctite Call 1-800 -Loctite Air bubbles in adhesive De-air material Inconsistent Dispense time is too low ... -
Page 10: Care And Maintenance
Care and Maintenance The dispenser is designed and built to be relatively maintenance free. To assure trouble free operation, please follow below steps: 1. Make certain air supply is clean and dry. 2. Avoid connecting the unit to excessive moisture or solvent saturation. 3. -
Page 11: Appendix
Appendix Electrical Diagram... -
Page 12: Pneumatic Diagram
Henkel expressly warrants that all products referred to in this Instruction Manual for ( 1406023 Spray Valve Digital Controller ) (hereafter called “Products”) shall be free from defects in materials and workmanship. Liability for Henkel shall be limited, as its option, to replacing those Products which are shown to be defective in either materials or workmanship or to credit the purchaser the amount of the purchase price thereof (plus freight and insurance charges paid therefor by the user). - Page 13 EXCEPT FOR THE EXPRESS WARRANTY CONTAINED IN THIS SECTION, HENKEL MAKES NO WARRANTY OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCTS. ALL WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND OTHER WARRANTIES OF WHATEVER KIND (INCLUDING AGAINST PATENT OR TRADEMARK INFRINGEMENT) ARE HEREBY DISCLAIMED BY HENKEL AND WAIVED BY THE PURCHASER.
- Page 14 Canhema 09941-410 Auburn Hills, Michigan 48326 Diadema/SP, Brazil www.loctite.com Loctite is a trademark of Henkel Corporation, U.S.A. © Copyright 2004. Henkel Corporation All rights reserved. Data in this operation manual is subject to change without notice. Manual P/N: 8902213, Date: 09/2010...
