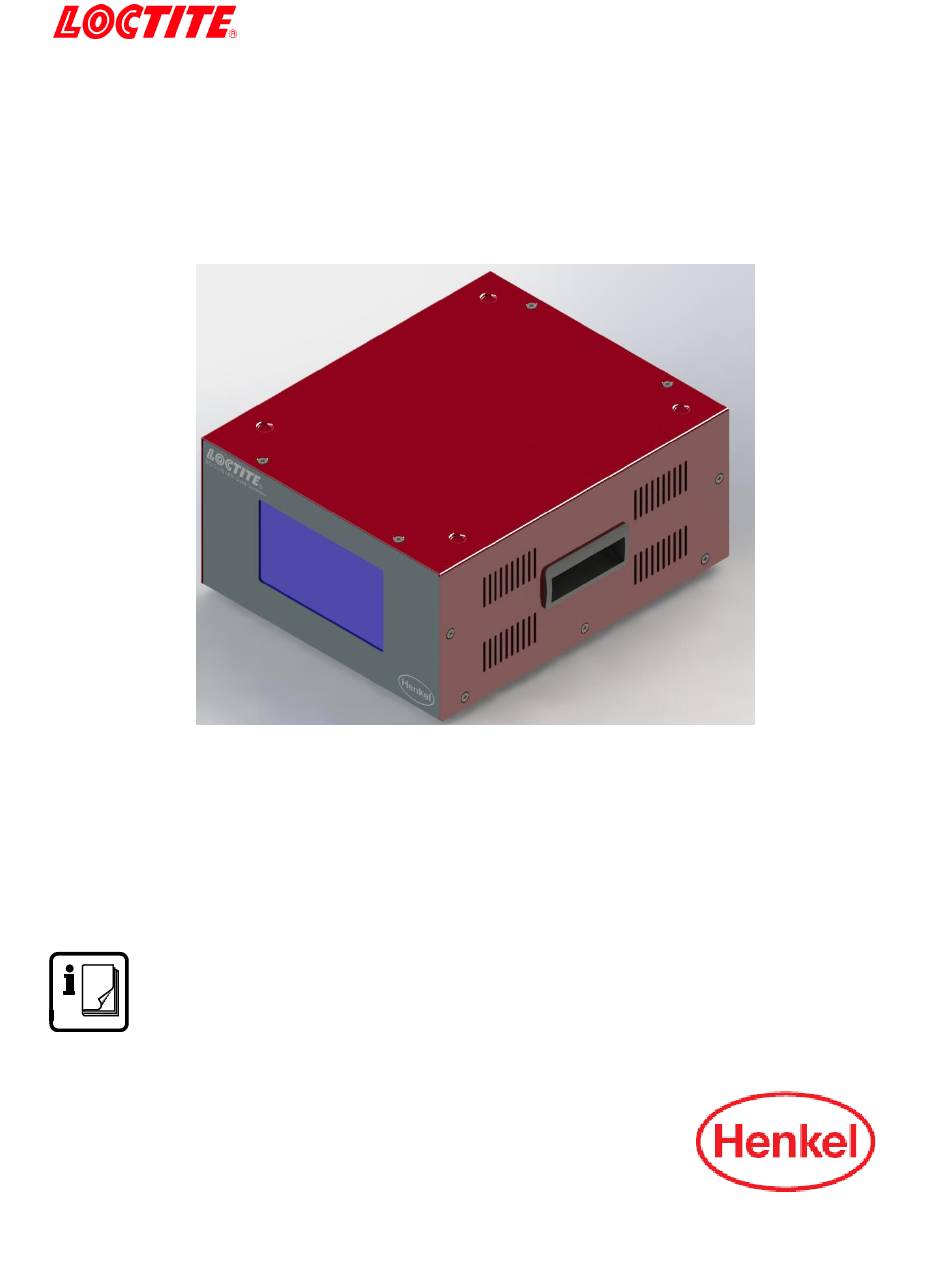

- Page 1 2257357 EQ CL30 LED Quad Controller Operating Manual...
-
Page 2: Table Of Contents
Table of Contents Please Observe the Following ....................3 Emphasized Sections ......................3 For Your Safety ........................3 Unpacking and Inspection ....................5 Packing List ........................... 5 Features ..........................5 Usage ............................. 6 Description ........................... 6 2.1 Theory of Operation ........................6 2.2 Display, operating elements and connections .............. -
Page 3: Please Observe The Following
Observe general safety regulations for the handling of chemicals such as ® Loctite adhesives and sealants. Observe the manufacturer’s instructions as stated in the Safety Data Sheet. While under warranty, the unit may be repaired only by an authorized Loctite service representative. - Page 4 WARNING! It is the responsibility of the user to ensure that all devices being driven by the LED Flood Controller are set-up in a safe manner. ‘ The manufacturer is in no way responsible for injuries or damage to persons or property resulting from devices being driven by the LED Flood Controller.
-
Page 5: Unpacking And Inspection
1.4.3 Power Cord x 1 Features 1.5.1 Capacity for up to four UV LED Heads. 1.5.2 Works with Loctite CL30 Flood Heads. 1.5.3 Touch screen HMI 1.5.4 3 running modes: Timer, Level and Advance. 1.5.5 3 languages available: English, Chinese and Japanese. -
Page 6: Usage
Usage The Loctite CL30 quad controller is used with the CL30 365nm, 380nm, and 405nm LED flood heads for use with light cure products that cure when exposed to ultraviolet and/or visible light. The system can be operated manually, operated with the integrated timer, or controlled with an external switch. -
Page 7: Display, Operating Elements And Connections
2.2 Display, operating elements and connections Socket XS3: LED Head Power Switch ON/OFF Socket XS1: Start (The footswitch is connected here). -
Page 8: Technical Data
Socket XS5: RS232 Socket XS9: PLC Interface Power Supplier Inlet and Fuse Cooling Fan Screen. Technical Data Dimensions (L x H x W): 600x340x733.2 Total weight: lbs. (Kg) Operating voltage: 110~240 VAC 50/60Hz Power consumption: 1500 Watts Operating Temperature: +10 °C to +40 °C (+50 °F to +104 °F) Storage Temperature: -10 °C to +60 °C (+14 °F to +140 °F) -
Page 9: Installation
Installation Before using the equipment for the first time check it carefully for signs of external damage. If any shipping damage is found DO NOT USE THE EQUIPMENT – return it to your supplier immediately. 4.1 Environmental and Operating Conditions No direct sunlight. -
Page 10: Turn On The Unit
For automated control, connect external PLC output relay to pins one and nine of XS1. 5.2 Turn on the Unit Observe the operating manual of the LED head used. Turn the power switch 2 to ON 5.3 Main Page Channel LED head status: DISCONNECTED LED head running Mode: LEVEL, TIMER, ADVANCE... -
Page 11: Parameter Setting Page
Time To Control Operation page To Warning Message page To Help information To Parameter Setting page 5.4 Parameter Setting Page 1. Running Mode selection: Level, Timer or Advance Timer Mode: Operator can setup timer from 0~999s. When timer is 0, LED head will run a continue mode. - Page 12 Advance Mode: Operator needs to define STEP, INTENSITY and TIME. Also CYCLE Number and Step Number is necessary here. For example, if operator have defined as below, when start signal comes, LED head will run as blow flow and runs 2 cycles. See chart on next page. Step Intensity Time No.1...
- Page 13 Timer Mode: Advance Mode:...
-
Page 14: Language Selection Page
5.5 Language Selection page There are 4 languages available: Chinese, German, English and Japanese. Select Chinese Select English Select German... -
Page 15: Control Operation Page
5.6 Control Operation Page Turn on single LED head Turn on all LED head Application Hints As with all adhesives, performance depends on conditions of use. Suggestions or recommendations contained herein are for guidance only, since actual conditions of use are outside the supplier’s control. Troubleshooting Before proceeding with any repair or maintenance operation disconnect the tool from the main electricity supply. - Page 16 Item Description IDH# LED Head 375 nm Array 1167582 LED Head 405 nm Array 1167593 LED Head Indigo™ Array 1167589 CL30 365nm LED Flood Head 2139182 CL30 380nm LED Flood head 2139181 CL30 405nm LED Flood head 2139180 LED Power Cable 1333333 Footswitch 88653...
-
Page 17: Diagrams
Diagrams XS1: Start... - Page 18 XS9: PLC Interface...
- Page 19 Warranty Henkel expressly warrants that all products referred to in this Instruction Manual for 2257357 ® Loctite EQ CL30 LED Quad Controller (hereafter called “Products”) shall be free from defects in materials and workmanship. Liability for Henkel shall be limited, as its option, to...
- Page 20 THIS SECTION SETS FORTH EXCLUSIVELY ALL OF LIABILITY FOR HENKEL TO THE PURCHASER IN CONTRACT, IN TORT OR OTHERWISE IN THE EVENT OF DEFECTIVE PRODUCTS. WITHOUT LIMITATION OF THE FOREGOING, TO THE FULLEST EXTENT POSSIBLE UNDER APPLICABLE LAWS, HENKEL EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER FOR ANY DAMAGES INCURRED DIRECTLY OR INDIRECTLY IN CONNECTION WITH THE SALE OR USE OF, OR OTHERWISE IN CONNECTION WITH, THE PRODUCTS, INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS AND SPECIAL, INDIRECT OR CONSEQUENTIAL...
- Page 21 #03-01/02 Haw Par Technocentre Zhangjiang, Hi-Tech Park, Pudong, Loc. Tulpetlac, C.P. 55090 SINGAPORE 149598 Shanghai, China 201203 Ecatepac de Morelos, MEXICO Henkel Loctite Korea Henkel Japan Ltd. Henkel AG & Co. KGaA 8F, Mapo Tower, 418, 27-7 Shin Isogo-cho, Isogo-ku Standort München...
