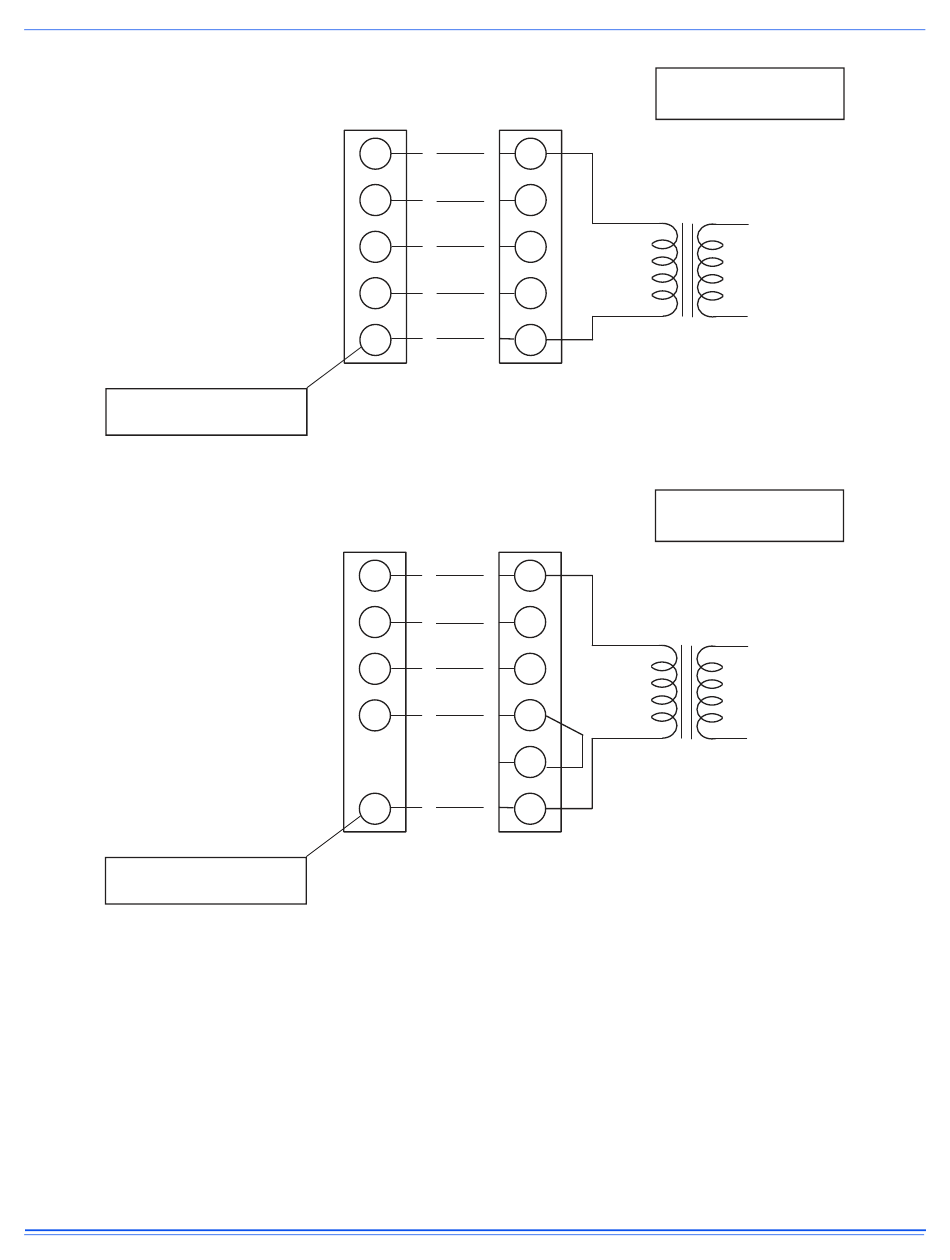

Typical Field Control Wiring Diagram Single Stage Thermostat-Single Stage Gas Heat; Typical Field Control Wiring Diagram Single Stage Thermostat-Two Stage Gas Heat - Johnson Controls AFFINITY DNZ024 Installation Manual

** = Minimum wire size of 18 AWG
wire should be used for all field
installed 24 volt wire.
PROGRAMMABLE
THERMOSTAT ONLY
Figure 7: Typical Field Control Wiring Diagram Single Stage Thermostat-Single Stage Gas Heat
** = Minimum wire size of 18 AWG
wire should be used for all field
installed 24 volt wire.
PROGRAMMABLE
THERMOSTAT ONLY
Figure 8: Typical Field Control Wiring Diagram Single Stage Thermostat-Two Stage Gas Heat
Johnson Controls Unitary Products
CFM CONTROL BOARD
THERMOSTAT TERMINAL STRIP
* *
R
G
Y
W
C
CFM CONTROL BOARD
THERMOSTAT TERMINAL STRIP
* *
R
G
Y
W
C
NOTE: HEAT ANTICIPATOR
SHOULD BE SET AT 0.35
AMPS FOR ALL MODELS.
R
G
Y
1
W
1
C
NOTE: HEAT ANTICIPATOR
SHOULD BE SET AT 0.35
AMPS FOR ALL MODELS.
R
G
Y
1
W
1
W
2
C
508258-YIM-C-0211
