Maintenance; Check Before Starting - Assa Abloy ACCENTRA 7210 Installation Instructions Manual

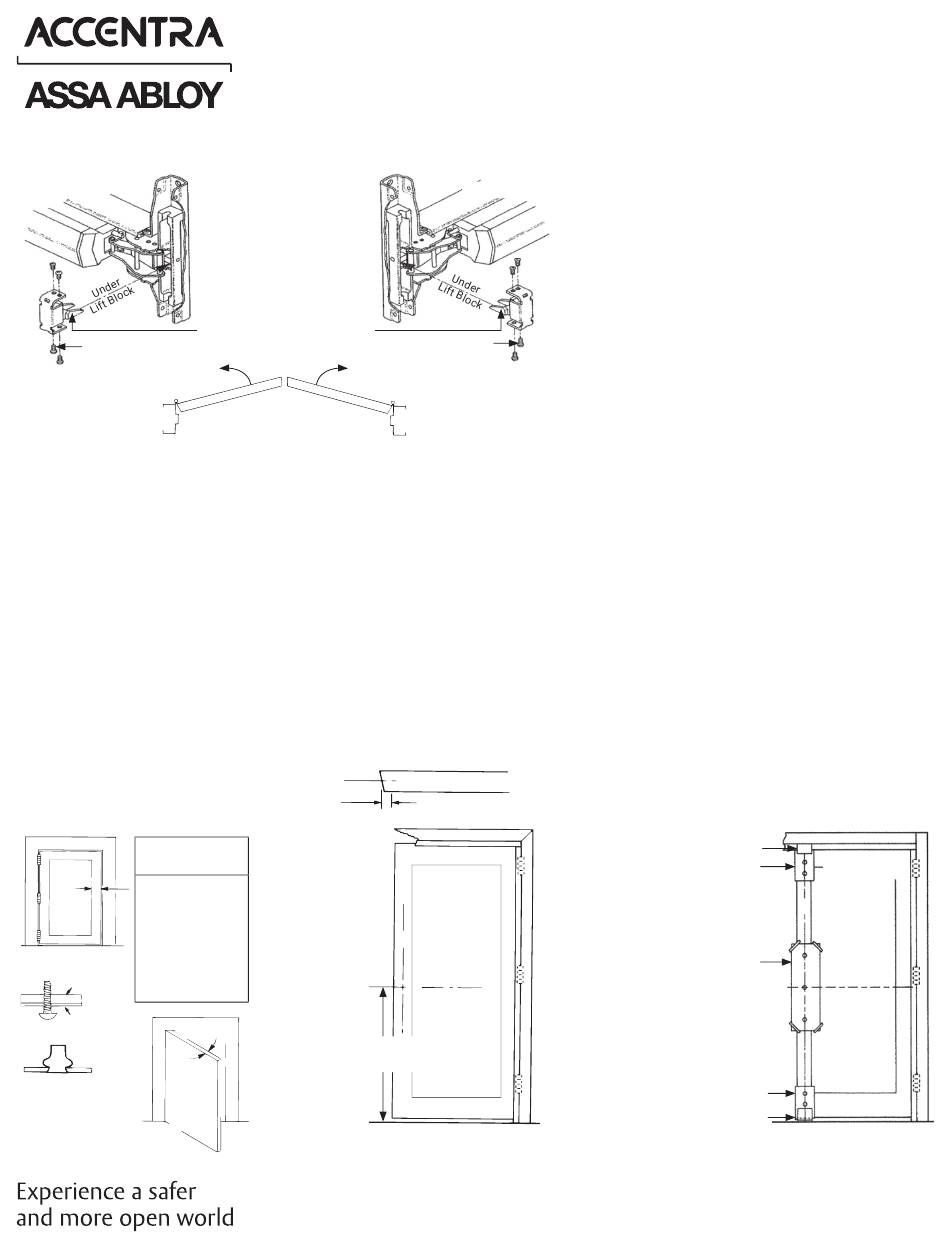

To Change Hands
RHR Device
(4) 8-32 x 3/16" PPHMS
RHR Door

Check Before Starting

Unreinforced Doors or Frames
Doors and Frames with walls
having a structural thickness
(metal skin plus reinforcement
or solid hardwood) to engage
less than (3) full screw threads
are considered unreinforced.
Unreinforced Doors:
Use SNB (sex nuts and bolts).
Unreinforced Frames:
Use Blind Rivet Nuts.
Recommended fasteners for
unreinforced openings are not
necessarily supplied by ASSA
ABLOY ACCENTRA™.
Min. Door Stile
2" (50mm)
Door must meet
structural and
dimensional
specifications
on exit device
template(s) for
door and frame
Reinforcement
preparation.
Door Skin
Blind Rivet Nut
Door Must Swing Freely
80-9472-0010-000 04/24
Vertical Lifter Assembly
(4) 8-32 x 3/16" PPHMS
1. Mark Door
Locate and Mark Horizontal
and Vertical Reference
Centerlines as shown.
LHR door shown preparation
is typical for both door hands.
Caution: If device is
mounted higher or lower
than shown, rod length
must change. Lengthen
or cut top and bottom
rods as shown in Step 7.
1-1/8"
(29)
Single
Door 39-15/16"
or (1014)
Pair
without
Mullion
Finished Floor
Copyright © 2019, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction
in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
LHR Device
LHR Door
C L
Door
C L
or Stile
LHR DOOR
INSIDE FACE
Device, Rods
C L
& Strikes
C L
Device
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
2
Surface Vertical Rod Exit Device
Installation Instructions

Maintenance

1. Periodically remove covers and coat
mechanisms with a silicone base lubricant.
This is particularly required in corrosive
environments for proper product function.
2. Check mounting fasteners periodically.
Retighten if found loose. Apply screw locking
compound (available at automotive part
stores) or change part fasteners if screws
continue to back out.
3. Periodic checks (and adjustments) of strikes
are required to compensate for changes in the
opening (e.g. door sagging).
2. Prepare Door, Frame & Sill
1. Locate "Device Template" aligning VERTICAL
REFERENCE and HORIZONTAL REFERENCE lines
on door and template. Tape template to door face.
2. Locate "Top Latch", "Top Strike", "Bottom Case"
and "Bottom Strike" templates, aligned on
centerline of Device, Rods and Strikes on door.
Tape templates in place.
3. Locate and tape Trim Template to door.
(See instructions packed with Trim.)
4. Spot and prepare holes:
Device and Bolt Case Plates:
Each (2) 1/4-20 Machine Screws* or (2) 3/8" (10)
dia. Sex Nuts & Bolts
(*) Metal reinforced door only.
Top Strike: (2) 10-32 Machine Screws;
Bottom Strike: 5/8" (16) dia x 3/4 (19) deep hole
Top Strike Template
Top Latch Template
Device Template
Bottom Case Template
Bottom Strike Template
7210
LHR DOOR
INSIDE FACE
C L
Device, Rods
& Strikes
C L
Device
Finished Floor
