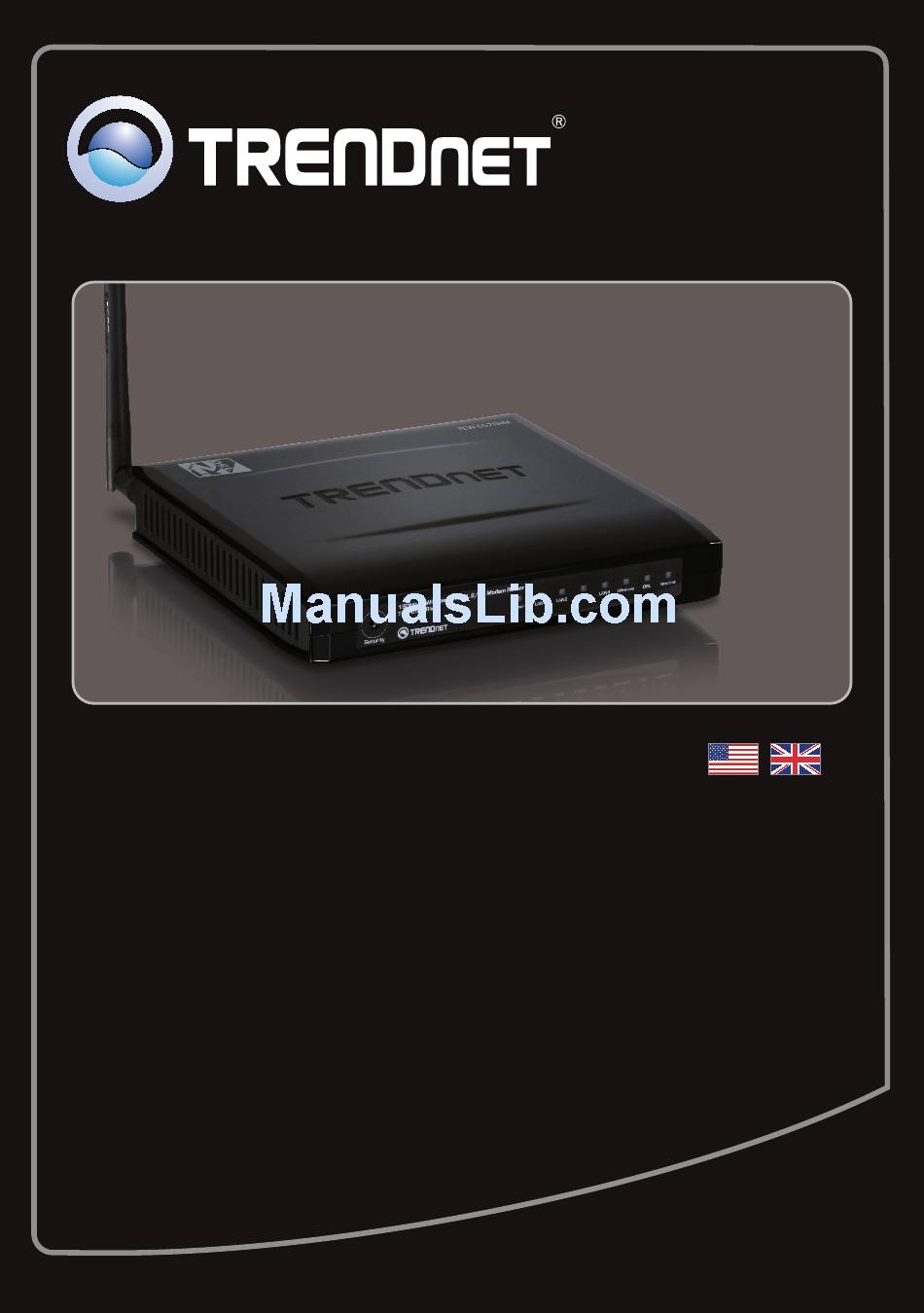

- Page 1 Quick Installation Guide TEW-657BRM 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation 3. Configure The Modem 4. Setting up Encryption Troubleshooting Wireless Tips Version 10.23.2009... -
Page 3: English
1. Before You Start Package Contents TEW-657BRM CD-ROM (User’s Guide) Multi-Language Quick Installation Guide 1 x RJ-45 Ethernet Cable 1 x RJ-11 Telephone Cable Power Adapter (12V DC, 1A) System Requirements A working ADSL Internet Connection A computer with a wired or wireless network adapter properly installed. Web Browser: Internet Explorer (5.0 or above) - Page 4 Collect Internet Service Provider (ISP) Information During the installation of your Wireless ADSL Modem Router, the Setup Wizard will automatically detect your ISP connection type. If the router cannot detect your ISP connection type, you can manually specify the connection type. Please verify your DSL Internet broadband connection type with your ISP and ensure you have all the information for one of the following connection types: A.
-
Page 5: Hardware Installation
2. Hardware Installation 1. Connect one end of the RJ-45 cable to one of the TEW-657BRM's LAN ports. Connect the other end of cable to the computer's Ethernet port. ADSL Terminator 2. Connect one end of the RJ-11 cable to the To PCs Power TEW-657BRM's ADSL port. -
Page 6: Configure The Modem
3. Configure the Modem Note: It is recommended that you configure the Modem from a wired computer. 1. Open your web browser, type http://192.168.10.1 in the Address bar, and then press Enter. 2. Enter the User Name and password and then click OK. By default: User name: admin Password: admin Note: User name and Password is case... - Page 7 4. Click Next. 5. Select Auto-detect and then click Next. Note: 1. The example below is for Auto-detect. If the Setup Wizard could not automatically detect your Internet connection, select Manual Selection and input the information using the information provided by your ISP. 2.
- Page 8 Finish. 11. Verify that the test has completed successfully. Check that the ADSL and Internet LEDs are lit. Then click Close. 12. Open up your browser and enter in a URL (e.g. www.trendnet.com) to verify that you have Internet connection.
-
Page 9: Setting Up Encryption
4. Setting up Encryption Note: To protect your network from any unauthorized access it is recommended to enable wireless encryption. 1. Click Wireless 2. Select the Region, enter the desired SSID and then click Save. 3. Click Configure SSID1 to set up Wireless Security. -
Page 10: Register Your Product
Your Configuration is complete For detailed information regarding the TEW-657BRM’s configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register... -
Page 11: Troubleshooting
Troubleshooting I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TEW-567BRM's web configuration page? 1. C heck your hardware settings again by following the instructions in Section 2. 2. - Page 12 Take a pin or paperclip and press the reset button on the back of the Wireless Modem for 15 seconds. Then let go. This will return all settings to factory default. The default user name and password is admin. If you still encounter problems or have any questions regarding the TEW-657BRM, please contact TRENDnet's Technical Support Department.
-
Page 14: Wireless Tips
Wireless Tips The following are some general wireless tips to help minimize the impact of interference within an environment. Assign your network a unique SSID Do not use anything that would be identifying like “Smith Family Network”. Choose something that you would easily identify when searching for available wireless networks. Do not turn off the SSID broadcast The SSID broadcast is intended to be on and turning it off can cause connectivity issues. - Page 15 2. Keep the number of obstructions to a minimum. Each obstruction can reduce the range of a wireless device. Position the wireless devices in a manner that will minimize the amount of obstructions between them. 3. Building materials can have a large impact on your wireless signal. In an indoor environment, try to position the wireless devices so that the signal passes through less dense material such as dry wall.
- Page 16 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
- Page 17 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
