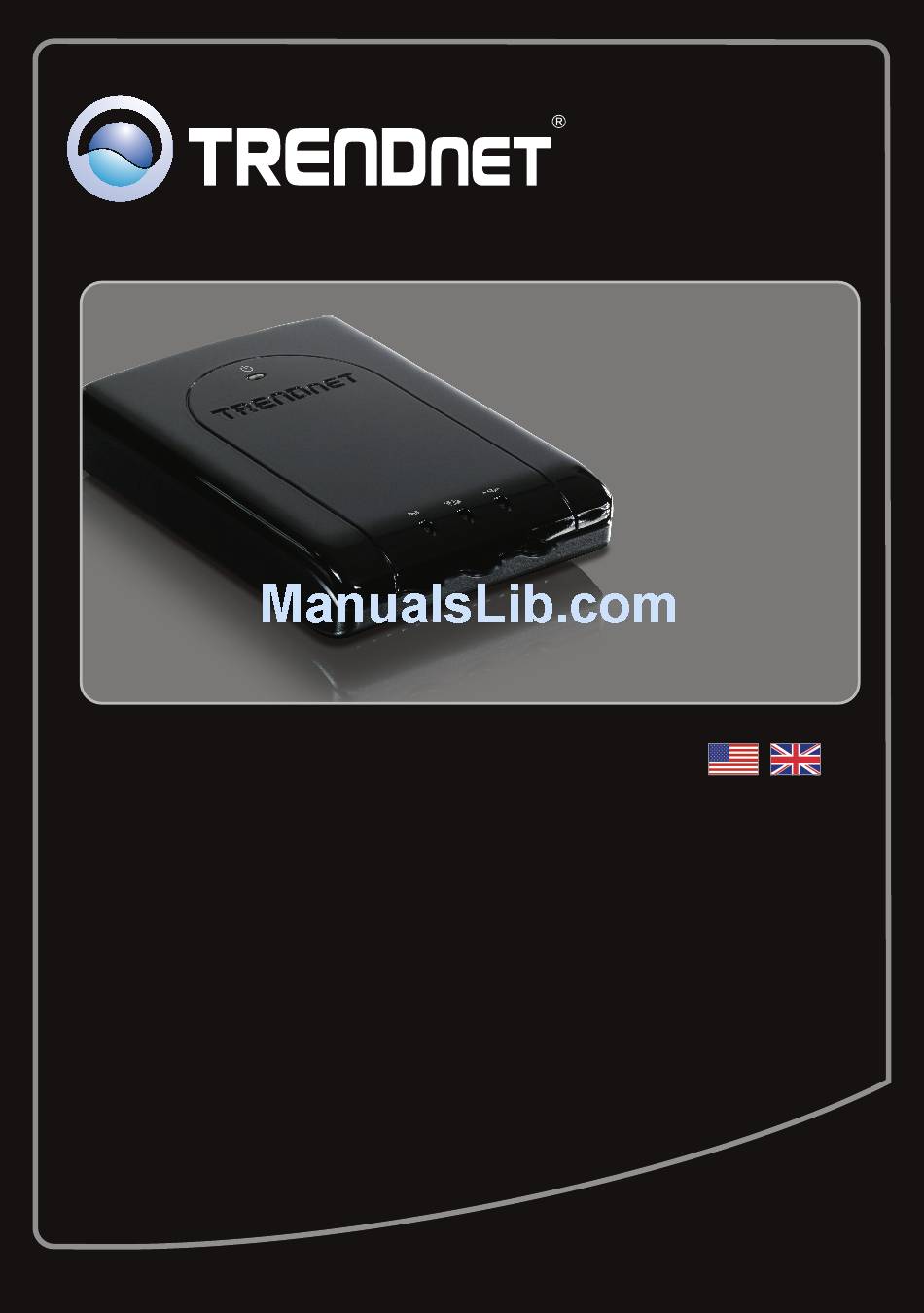

- Page 1 Quick Installation Guide TEW-655BR3G 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation 3. Configure the TEW-655BR3G 4. LEDs Troubleshooting Wireless Tips Version 03.17.2010... -
Page 3: English
A computer with a wireless network adapter properly installed. Web Browser: Internet Explorer (6.0 or above) Broadband Internet or 3G Internet Service Cable/DSL Modem or 3G USB Adapter* TA-CC Car Charger (optional) * For a list of compatible 3G USB Adapters, please go to http://www.trendnet.com/products/TEW-655BR3G. - Page 4 Collect Internet Service Provider (ISP) Information During the installation of your 150Mbps Mobile Wireless N Router, the Setup Wizard will automatically detect your ISP connection type. If the router cannot detect your ISP connection type, you can manually specify the connection type. Please verify your Internet connection type with your ISP and ensure you have all the information for one of the following connection types: 1.
- Page 5 6. PPPoE connection Account : _________ Password: ________________ Primary DNS:_____. _____._____._____ Secondary DNS:_____. _____._____._____ Service Name (Optional): ________________ Assigned IP Address (Optional): ________________ 7. PPTP connection IP Mode: Dynamic IP Address or Static IP Address My IP Address:_____. _____._____._____ (e.g. 215.24.24.129) My Subnet Mask: _____.
-
Page 6: Hardware Installation
3G USB adapter to your computer. Open your browser (e.g. Internet Explorer) and type in a URL (e.g. Internet http://www.trendnet.com) in the address bar. Cable/DSL Modem Note: You may need to activate your Internet connection. Please contact your ISP for more information. - Page 7 5. Connect one end of the provided RJ-45 cable to the TEW-655BR3G's Ethernet port. Connect the other end of the cable to the computer's Ethernet port. 6. Connect the AC Power Adapter to the wireless router and then to a power outlet. 7.
-
Page 8: Configure The Tew-655Br3G
3. Configure the TWE-655BR3G Note: 1. Gather all information related to your Internet Connection before you start. If necessary, contact your Internet Service Provider (ISP). 2. Below are steps for connecting to a 3G Internet connection. For instructions connecting to a Broadband Internet connection, please see question 5 in the Troubleshooting section. - Page 9 5. Enter the Old password (By default, the Password is admin), enter a New Password, reconfirm the New Password and then click Next. 6. Select your Time Zone and then click Next. 7. Select Wireless WAN for WAN Interface. Select 3G or iBurst (the example shown is for 3G).
- Page 10 9. Select the desired Authentication mode, select the desired Encryption type and enter characters for your Pre-Shared key and then click Next. For WPA-PSK or WPA2-PSK, the Pre-Shared Key must be between 8 and 63 ASCII or 64 HEX characters. Make sure to copy down the Pre-Shared Key.
- Page 11 Internet connection. Your Configuration is now complete For detailed information regarding the TEW-655BR3G’s configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...
-
Page 12: Leds
4. LEDs Power (Battery) Green (Blinking): Battery is in use Amber (Solid): Battery is running low and needs to be charged Not Illuminated: Power switch is set to off position or the battery is dead Power (Power Adapter) Green (Solid): Power is on. Amber (Solid;... -
Page 13: Troubleshooting
Troubleshooting 1. I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TEW-655BR3G's web configuration page? 1. Check your hardware settings again by following the instructions in Section 2. 2. - Page 14 8. Connect your computer wirelessly to the TEW-655BR3G. 9. Open up your browser and enter in a URL (e.g. www.trendnet.com) to verify that you have Internet connection. If you still encounter problems or have any questions regarding the TEW-655BR3G, please contact...
-
Page 15: Wireless Tips
Wireless Tips The following are some general wireless tips to help minimize the impact of interference within an environment. Assign your network a unique SSID Do not use anything that would be identifying like “Smith Family Network”. Choose something that you would easily identify when searching for available wireless networks. Do not turn off the SSID broadcast The SSID broadcast is intended to be on and turning it off can cause connectivity issues. - Page 16 2. Keep the number of obstructions to a minimum. Each obstruction can reduce the range of a wireless device. Position the wireless devices in a manner that will minimize the amount of obstructions between them. 3. Building materials can have a large impact on your wireless signal. In an indoor environment, try to position the wireless devices so that the signal passes through less dense material such as dry wall.
- Page 18 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
- Page 19 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
- Page 21 Copyright © 2010. All Rights Reserved. TRENDnet.
