Avocent® LongView
High Performance KVM Extender
3000 and 4000 Series Rack Installation Guide
This guide covers the installation of the
Avocent LongView extender rack shelf.
1. Installing the rack shelf
Turn the rack shelf so that the
flange with threaded holes is at the
top. Then, install the shelf into a
rack using the appropriate
hardware.
2. Attaching the mount plate
Place the Avocent LongView
extender on its side and attach the
face mount plate using the supplied
screws. An "extra" hole should be at
the top of the face mount plate
after it is attached to the extender.
3. Attaching the extender to the
rack shelf
Leaving the extender on its side,
slide it and the attached mount
plate into the rack shelf until it is
flush with the front of the rack
mount chassis. The screws on the
top side of the extender should
align with a rectangular gap on the
flange in order to slide through. The
screws on the bottom side of the
extender should slide into the relief
holes on the bottom of the rack
mount chassis. The extra hole in
the face mount plate should align
with a threaded hole on the flange.
Using a supplied screw, secure the
mount plate and extender to the
rack shelf.
PROPRIETARY AND CONFIDENTIAL ©2024 VERTIV GROUP CORP.
TM

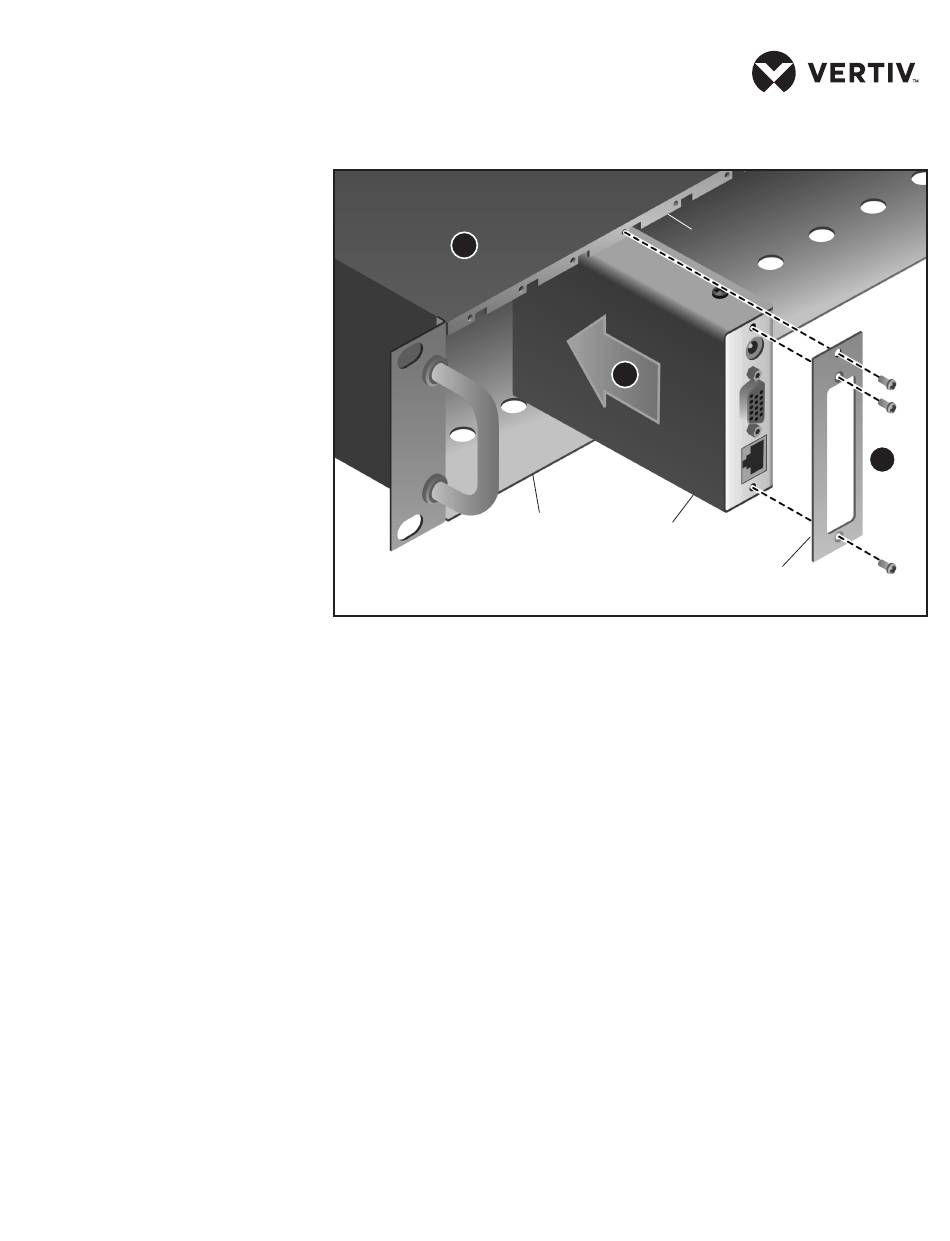

Avocent LongView Extender Rack Installation
1
Rack Shelf
Flange
3
Avocent
LongView
Extender
Face Mount Plate
2
590-1518-501B 1
