Vertiv Avocent HMX Series Installation Manual

Avocent® HMX Extender System
HMX 6200 DP and HDMI Transmitters
Rack Mount Installation Guide
Vertiv Avocent® HMX6200TDP Transmitter Shown
TM
This guide covers Vertiv™Avocent
HMX 6200 DP and HDMI High
Performance KVM extender system
transmitters only.
CAUTION: HMX devices and their
power supplies generate heat during
operation. Do not mount them where
air cannot circulate to cool the
equipment. One-third of the U space
(1/2 inch) must be allowed between
rows of extenders when mounting
within a rack chassis.
Do not operate the system in ambient
temperatures exceeding 104°F (40°C)
or place transmitters or receivers in
contact with equipment that exceeds
that surface temperature.
In order to maintain suitable cooling
airflow, if only two transmitters are
installed within the rack mount, install
the optional blanking plate.
1
2
Tray divider
Spacer
3
Thumbscrew
Follow the directions on the opposite
side of this page to install the blanking
plate as needed.

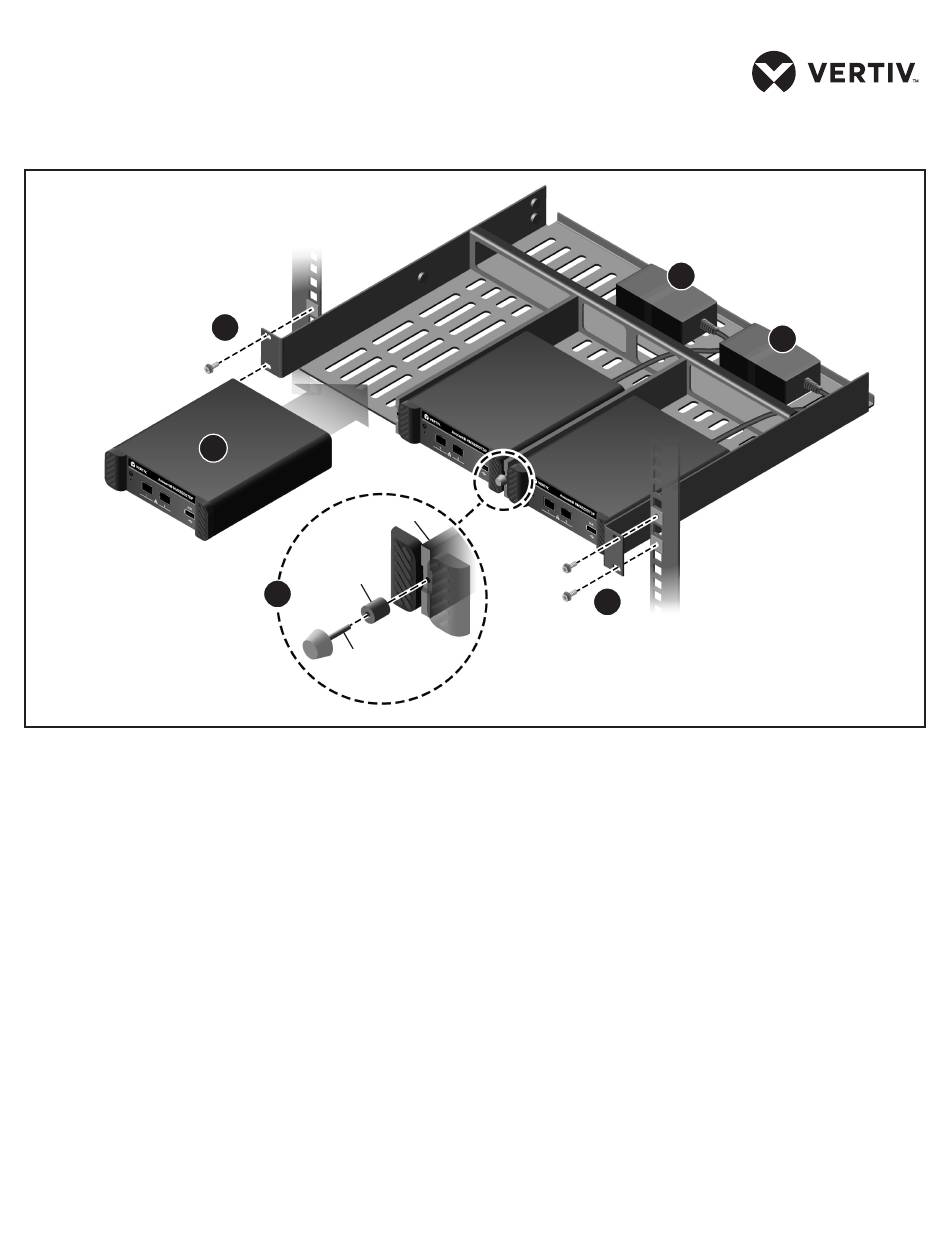

1. Installing the tray in the rack
Install the rack mount tray in the
rack and fully secure it.
2. Installing the device in the tray
Place a transmitter into each rack
mount tray compartment, inserting it
until the device's rear panel presses
against the small pegs on the tray
side walls.
3. Inserting the thumbscrew
Insert the supplied thumbscrew
through the supplied spacer and
into the small hole at the end of the
tray divider. Gently tighten the
thumbscrew so the spacer engages
with the inner edges of each
transmitter and holds them in place.
4
4
1
Repeat to install the additional
thumbscrew and spacer on the
other tray divider end.
4. Connecting power
Place the power adaptors in the rear
of the rack mount tray. Connect one
end of each adaptor to your HMX
transmitter and the other end to an
AC power source.
5. Making other connections
Make all other connections to each
HMX device in your extender
system.
590-2369-501B 1
