Summary of Contents for FlySky FS-MG6-BS

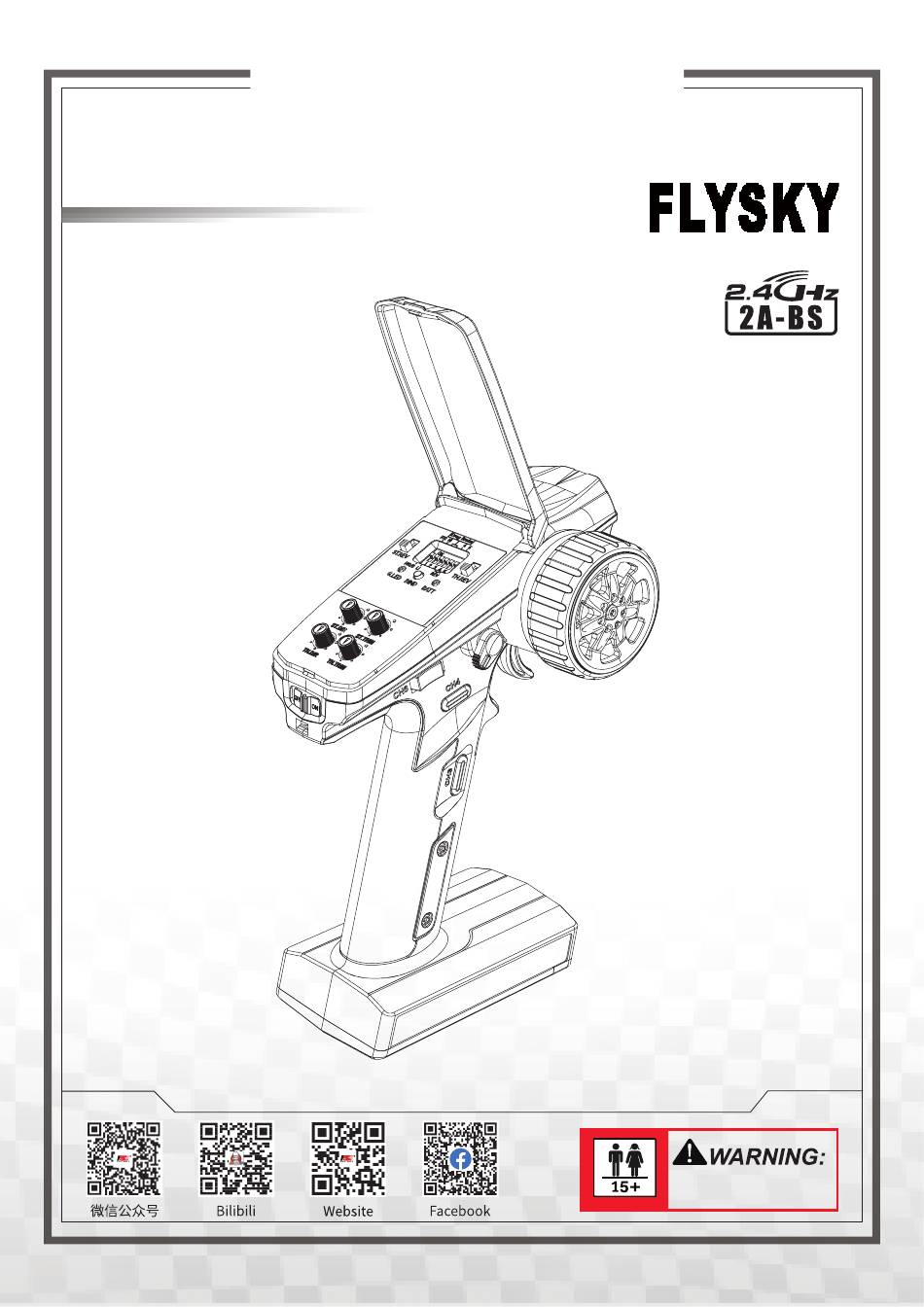

- Page 1 FS-MG6-BS&FS-R6D-BS USER MANUAL USER MANUAL Digital Proportional Radio Control System Copyright ©2024 Flysky Technology Co., Ltd. This product is only for 15 years old or above.
- Page 2 Read the manual carefully to ensure your personal safety as well as the safety of your equipment. If you encounter any problems during using, please refer to this manual first. If the problem is still not resolved, please contact the local dealer directly or contact the customer service staff via the website below: www.flysky-cn.com...
-
Page 3: Table Of Contents
Contents 1.Safety .....................1 1.1 Safety Symbols ...................... 1 1.2 Safety Guide......................1 2.Introduction ..................2 2.1 Transmitter Overview .................... 2 2.2 Receiver Overview (FS-R6D-BS) ................3 2.2.1 Receiver LED ................................3 2.2.2 Interface .................................3 2.2.3 Antenna ..................................3 3.Getting Started ................4 3.1 Transmitter Antenna ..................... 4 3.2 Receiver and Servo Installation ................ - Page 4 7. Product Specifications ..............16 7.1 Transmitter Specifications ................. 16 7.2 Receiver Specifications ..................17 8. Package Contents ................. 18 9. Certifications ................19 9.1 DoC Declaration ....................19 9.2 CE Warning ......................19 9.3 FCC Statement ....................19 9.4 Environmentally friendly disposal ..............20...
-
Page 5: Safety
1.Safety 1.1 Safety Symbols Pay close attention to the following symbols and their meanings. Failure to follow these warnings could cause damage, injury or death. Danger • Not following these instructions may lead to serious injuries or death. Warning • Not following these instructions may lead to major injuries. Caution • Not following these instructions may lead to minor injuries. 1.2 Safety Guide Prohibited Mandatory • Do not use the product at night or in bad weather like rain or thunderstorm. It can cause erratic operation or loss of control. • Do not use the product when visibility is limited. •... -
Page 6: Introduction

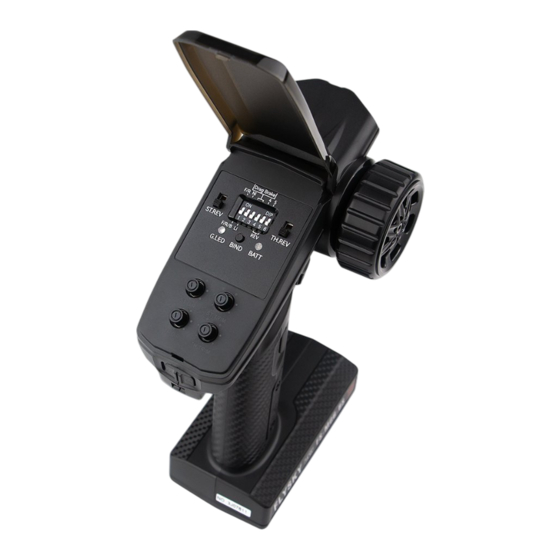

FS-MG6-BS&FS-R6D-BS 2.Introduction This system adopts 2.4GHz 2A-BS protocol and consists of FS-MG6-BS transmitter and FS-R6D-BS receiver. It supports two-way transmission and outputs six channels. The transmitter is lightweight and compact in design, comfortable and ergonomic, it supports ESC parameters setting and compatible with car models. -
Page 7: Receiver Overview (Fs-R6D-Bs)
2.2 Receiver Overview (FS-R6D-BS) [10] [11] [12] CH1 Interface LED Car Light Interface CH2 Interface "-" (CH Interface Cathode) CH3 Interface "+" (CH Interface Anode) CH4 Interface [10] S (CH Interface Signal Pin) CH5 Interface [11] LED CH6 Interface [12] Antenna 2.2.1 Receiver LED The LED status indicates the power supply state of the receiver and its working state. Off: The receiver is not powered on. -
Page 8: Getting Started
Digital Proportional Radio Control System FS-MG6-BS&FS-R6D-BS 3.Getting Started Before operation, install the battery and connect the system as instructed below. 3.1 Transmitter Antenna The transmitter has a built-in antenna. When the transmitter starts to work, the antenna automatically operate, without additional operations. 3.2 Receiver and Servo Installation... -
Page 9: Transmitter Battery Installation
3.3 Transmitter Battery Installation Danger • Only use specified battery. Danger • Do not open, disassemble, or attempt to repair the battery. Danger • Do not crush/puncture the battery, or short the external contacts. Danger • Do not expose to excessive heat or liquids. Danger • Do not drop the battery or expose to strong shocks or vibrations. Danger • Always store the battery in a cool, dry place. Danger • Do not use the battery if damaged. Installing the AA Battery Follow the steps below to install the AA batteries: Open the battery compartment cover as illustrated. Insert 4 fully-charged AA batteries into the compartment. -
Page 10: Instructions
Digital Proportional Radio Control System FS-MG6-BS&FS-R6D-BS 4.Instructions After setting up, follow the instructions below to operate the system. 4.1 Powering ON Follow the steps below to turn on the transmitter: Check to make sure that the batteries are fully charged and installed correctly. -
Page 11: Stick Calibration
Once the binding is successful, the receiver LED and the G.LED of the transmitter will be solid on. Verify that the transmitter and the receiver are working properly. If you need to re-bind, repeat the above steps. 4.4 Stick Calibration Use this function to correct for the mechanical deviation of the throttle trigger, steering wheel and CH5 self- centering knob, for example, deviation occurred in the self-centering or maximum minimum travel, the steps are as following: Turn and hold the steering wheel clockwise to the max travel and push the throttle trigger forwards as far as... -
Page 12: System Functions
Digital Proportional Radio Control System FS-MG6-BS&FS-R6D-BS 5.System Functions This section focuses on the functions and how to use them. 5.1 Channel Description The transmitter outputs a total of 6 channels, which are assigned as below, as well as the functions. Channel Assigned Control Function Steering, to make the model car to turn right or left. -
Page 13: D/R
trim value increases to a maximum of 120us. When adjusting clockwise, the trim value decreases to a minimum of -120us. Note that when the channel is set in reverse, the trim is reversed at the same time, that is, the trim value decreases in the counterclockwise adjustment, and the trim value increases in clockwise adjustment. - Page 14 Digital Proportional Radio Control System FS-MG6-BS&FS-R6D-BS CH6 End Point Adjustment Adjust the end points of CH6 (the control of CH6 is CH6 Three-position Toggle Switch). Setup: In the power-on state, press BIND twice, then the transmitter enters the end point setting mode. At this time, G.LED will work in two-flash-one-off mode repeatedly, and the buzzer will prompt with beeping twice cyclically.
-
Page 15: Esc Parameters Setting
5.6 ESC Parameters Setting Running Mode Battery Type Drag Brake Lipo 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 F/R/B NiMH 100% 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6... -
Page 16: Failsafe
Digital Proportional Radio Control System FS-MG6-BS&FS-R6D-BS The switches 3 and 4 of the 6-bit DIP switch are used to set the ESC drag brake force. The drag brake force can be set to 0%, 50%, 75% or 100%. Setup: •... -
Page 17: Data Reset
When the voltage is detected below 4.2V/7.0V (AA battery/LiPo battery), there is an alarm due to low voltage. At this time, the G.LED will flash slowly, and the buzzer prompts with beeping once cyclically. When the voltage is detected below 3.5V (ultra-low), the transmitting function is disabled. The G.LED will be in gradual light state. -
Page 18: Fs-R6D-Bs Function Instructions
The state of all the car lights is controlled by the corresponding controls of the FS-MG6-BS transmitter. The left and right turn signal lights are controlled by steering wheel. The daytime running lights and headlights are controlled by... -
Page 19: Failsafe
Car Light Car Light State Control Trigger Condition Notes State Left Turn Steering Turn the sterring wheel Signal Slow Flash Turn Left Wheel counterclockwise. If you set the steering channel in reverse, the Light trigger condition for left and right turn signal Right Turn lights will not be affected. -
Page 20: Product Specifications
Digital Proportional Radio Control System FS-MG6-BS&FS-R6D-BS 7. Product Specifications This section contains the specifications of FS-MG6-BS transmitter and FS-R6D-BS receiver. 7.1 Transmitter Specifications Product Model FS-MG6-BS Compatible Receivers FS-R6D-BS Number of Channels Compatible Models Simulation Crawler 2.4GHz ISM Maximum Power <20dBm (e.i.r.p.) （EU） 2.4GHz Protocol... -
Page 21: Receiver Specifications
Product Name FS-R6D-BS Compatible Transmitters FS-MG6-BS Compatible Models 1 /8 crawler, on-road car, off-road short course truck, and truck Number of Channels Number of Car Light Interfaces 6 (LED car light interface connects to the FS-DB01 car light drive board.) 2.4GHz ISM... -
Page 22: Package Contents
Digital Proportional Radio Control System FS-MG6-BS&FS-R6D-BS 8. Package Contents This section contains FS-MG6-BS transmitter packing contents. Number Name Quantity FS-MG6-BS Transmitter FS-R6D-BS Receiver... -
Page 23: Certifications
9. Certifications 9.1 DoC Declaration Hereby, [Flysky Technology Co., Ltd.] declares that the Radio Equipment [FS-MG6-BS&FS-R6D-BS] is in compliance with RED 2014/53/EU. The full text of the EU DoC is available at the following internet address: www.flyskytech.com/info_detail/10.html 9.2 CE Warning The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter. -
Page 24: Environmentally Friendly Disposal
Digital Proportional Radio Control System FS-MG6-BS&FS-R6D-BS 9.4 Environmentally friendly disposal Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to these collecting points or to similar collection points. - Page 25 Copyright ©2024 Flysky Technology Co., Ltd. Release date: 2024-02-18 FCC ID： 2A2UNMG110O Manufacturer: ShenZhen FLYSKY Technology Co., Ltd. Address: 16F, Huafeng Building, No. 6006 Shennan Road, Futian District, Shenzhen, Guangdong, China...
