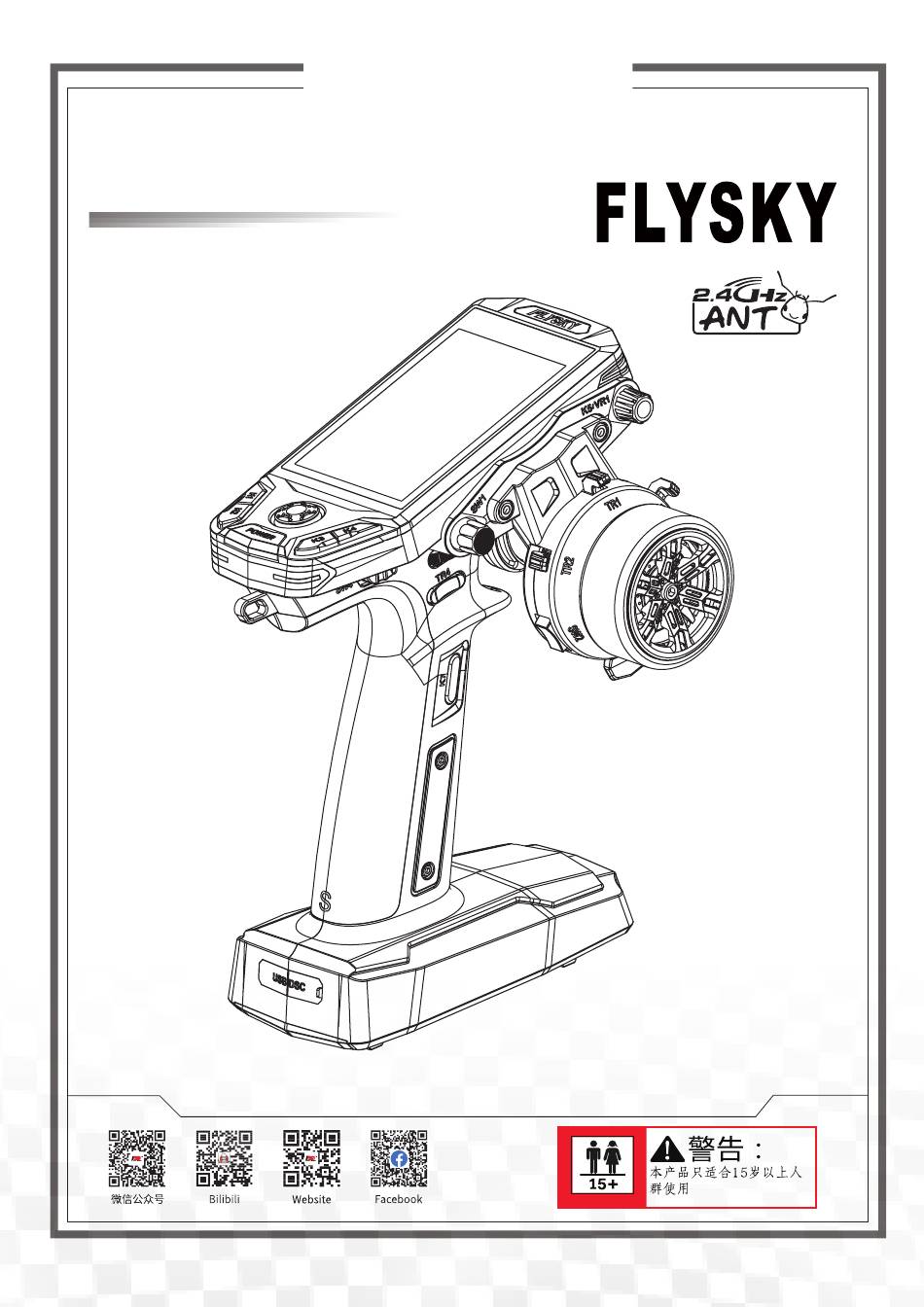

- Page 1 FS-G11P USER MANUAL USER MANUAL Digital Proportional Radio Control System Copyright ©2024 Flysky Technology Co., Ltd.
- Page 2 If you encounter any problems during using, please refer to this manual first. If the problem is still not resolved, please contact the local dealer directly or contact the customer service staff via the website below: http://www.flysky-cn.com...
-
Page 3: Table Of Contents
Contents 1.Safety ..................1 1.1 Safety Symbols ....................1 1.2 Safety Guide ...................... 1 2.Introduction ................2 2.1 Transmitter Overview ..................2 2.2 Receiver Overview（FS-R11P） ................5 2.2.1 Receiver LED ........................5 2.2.2 Connector ........................5 2.3 Antenna ......................5 3.Getting Started ................. 6 3.1 Transmitter Battery Installation ................. - Page 4 6.19.2 Stick Calibration ......................45 6.19.3 Failsafe Tips .........................46 6.19.4 TX Firmware Update .....................46 6.19.5 Factory Reset .......................47 6.19.6 Help ..........................47 6.19.7 About FS-G11P ......................47 6.20 SVC ........................ 48 6.21 Beginner ......................50 7. User Customization ..............51 7.1 Installation of handle ..................51 7.2 Installation of SD Card..................
-
Page 5: Safety
1.Safety 1.1 Safety Symbols Pay close attention to the following symbols and their meanings. Failure to follow these warnings could cause damage, injury or death. Danger • Not following these instructions may lead to serious injuries or death. Warning • Not following these instructions may lead to major injuries. -
Page 6: Introduction
This product uses the 2.4 GHz ANT(Ant protocol) enhanced automatic frequency hopping digital system, consisting of FS-G11P transmitter and FS-R11P receiver. It has an output of 11 channels, compatible with model cars, boats, etc.And it also supports the Beginner function (Default disabled). - Page 7 Lower Ambient Light Upper Ambient Light Cell Phone Holder Mounting Hole SW4 3-Position Switch SW3 3-Position Switch VR2 3-Position Dial TR4 Trim K6 Toggle Switch K7 Button SW2 3-Position Switch Handle Battery Compartment JST Port Balanced Charging Port (2.54mm*3P）...
- Page 8 FS-G11P Digital Proportional Radio Control System Carring Handle Neck Strap Hook SD Card Slot Throttle Trigger (CH2) Neck Strap Hook Throttle Trigger Size Adjustment Throttle Trigger Tension Adjustment Grip Steering Wheel Tension Adjustment Throttle Trigger Structure Travel Adjustment USB Type-C Port Steering Wheel Rotate Travel Adjustment 3.5mm Audio Jack （DSC）...
-
Page 9: Receiver Overview（Fs-R11P
2.2 Receiver Overview（FS-R11P） [16] [15] [14] [13] [17] [12] [11] [10] [18] [19][20] [21] CH1/P(PWM/PPM) [12] CH10 [13] CH11 [14] SENS Connector [15] SERVO Connector [16] [17] Antenna BIND Connector [18] BIND Button VCC/BVD (Power Supply/Battery [19] Signal Pin Voltage Connector) [20] "+"... -
Page 10: Getting Started
FS-G11P Digital Proportional Radio Control System 3.Getting Started Before operation, install the battery and connect the system as instructed below. 3.1 Transmitter Battery Installation Danger • Only use included batteries. Danger • Do not open, disassemble, or attempt to repair the battery. - Page 11 Five-way Switch(Menu Navigation Button) and POWER button (Power/Return Button) The functions of five-way switch (Menu Navigation Button) and the POWER button (Power/Return Button) are described as follows. Five-way Switch(Menu Navigation Button) In the Home state, • Long press the Middle button for 2s to lock the screen, and long press it again to unlock; • Long press the Middle button for 1s to select the sensor, short press the Left/Right buttons to select the function item, and short Right press the Middle button to enter the Sensors Set interface;...
-
Page 12: Operation Instructions
FS-G11P Digital Proportional Radio Control System 4.Operation Instructions After setting up, follow the instructions below to operate the system. 4.1 Powering On Follow the steps below to turn on the transmitter: 1. Check to make sure that the batteries are fully charged and installed correctly. 2. Long press the POWER button, and follow the prompts on the screen to successfully power on. ・ If the built-in RF module is not detected or needs to be updated, the system will prompt a pop-up window. Please follow the instructions in the pop-up window to proceed. ・ The system will pop up a window prompting whether the failsafe is set for the current model. To turn off the failsafe prompt, select No or turn off the Failsafe Tips through System. -
Page 13: Led
• This binding procedure applies to FS-G11P transmitter and FS-R11P receiver, different receivers may enter the forced update in different ways, please go to the FLYSKY website to query the instructions of the relevant receiver for action. • The products are subject to constant update. Please enter FLYSKY website for the latest transmitter and receiver compatibility form. -
Page 14: Stick Calibration
FS-G11P Digital Proportional Radio Control System 4.4 Stick Calibration Use this function to correct for the mechanical deviation of the throttle trigger, steering wheel and VR2 3-Position Dial, for example, deviation occurred in the self-centering or maximum/minimum travel. By default, the calibration is finished. If you need to calibrate again, follow the steps below: 1. Go to Home > Main Menu > System, and select Stick Calibration,... -
Page 15: System Interface
5. System Interface The system interface mainly displays information related to the model, such as transmitter voltage information, function status and so on. Main Interface Vibration Sound Signal Strength TX's Battery Volume RX's Battery Volume Model Name and Number Display Sensors The transmitter voltage, receiver voltage and BVD voltage are displayed by default. - Page 16 FS-G11P Digital Proportional Radio Control System Home 1 You can customize the setting of the shortcut display function interface.The CH Monitor interface is displayed by default. You can choose 9 function items for CH Monitor, Sensor, Failsafe, Timer, System(set up), RX Set, Model, ASSIGN and Main Menu.
-
Page 17: Function Settings
6. Function Settings This section introduces details functions and their use. 6.1 Reverse The Reverse function is used to correct a servo or motor's direction in relation to the systems controls. [Nor]: Indicates that the channel output is the default direction. [Rev]: Indicates that the channel's direction has been reversed. -
Page 18: Subtrim
FS-G11P Digital Proportional Radio Control System 6.3 Subtrim Subtrim can be used to adjust the error of the structure by changing the channel neutral position. For example, if a car's wheels are slightly out of aline-ment, even when the transmitter steering wheel is not being touched, subtrim can be used to correct the alignment. -
Page 19: Cruve
6.5 Cruve It is used to set the data change rate of channel 1 and channel 2, that is, the Steering Curve, the Forward Curve, and the Brake Curve. Assign K/SW controls to quickly enable/disable the function. 6.5.1 ST Exp To set the data change rate of channel 1. -
Page 20: Channel Speed
FS-G11P Digital Proportional Radio Control System 6.6 Channel Speed This function allows you to set the steering speed, throttle forward speed and brake speed. The minimum delay is 0.00s, and maximum delay is 10.00s. The adjustment step is 0.01s. The [ST], [Front] and [Brake] can be quickly adjusted by assigning VR/ TR controls. -
Page 21: Brake
6.6.3 Brake This function is used to set the delay of the throttle brake/backward and return-to-neutral. [Go]: Sets the speed of the throttle brake. [Return]: Set the speed at which the throttle brake returns to the neutral position. Refer to [6.6.2 Front] for function setup. 6.7 ABS ABS stands for auto breaking system. - Page 22 FS-G11P Digital Proportional Radio Control System Cycle Increases or decreases the time between pulses. That is, the cycle of the ABS function. Can be set to any value between 20% and 100%. The adjustment step is 1%. By default it is set to 50%. The higher the value, the longer the pulse.
-
Page 23: Throttle Idle Up
6.8 Throttle Idle Up Throttle Idle Up i s u se d for mo del s that use a fue l bas e d engin e that wil l stal l . If le ft at 0 throttle . Id le up make s sure that th e eng i ne a lways h as some throttle in orde r to keep it from stall i ng. -
Page 24: Throttle Lock
FS-G11P Digital Proportional Radio Control System 6.9 Throttle Lock When T Hrott le Lo c k i s tr igge red vi a a button it sets the throttle c hann el to a pred efin ed posi tio n. -
Page 25: Throttle Type
Ena ble o r di sable th e Curi se fu nctio n.Th is fun ction is disabled by defa u lt . Rate Set the real-t ime th rottle a mo un t a fter cruise mod e is activated. -
Page 26: Aux.ch
FS-G11P Digital Proportional Radio Control System Type Used to s et t he rate o f throttle for for wa rd and b rake / back ward. You ca n c hoos e a fi xe d rate (Fro nt 7 : Brake 3 , Front 5: Brake 5 or Fro nt 0: Bra ke 0 ). - Page 27 Set a control Sets a cont rol to co nt ro l t he cha nne l. Type You can select TR,S W,K, and VR cont rol s. Mode Used to s witc h th e o pe rati ng mod e o f the K control s. Step Used to adjust th e val ue cha nge o f a sin gle op eration.
-
Page 28: Assign
FS-G11P Digital Proportional Radio Control System 6.13 ASSIGN The ke y as si gnment functi on is u sed to assign ke y s o r s witche s to d iffere nt functio ns for quick s witc h o r co ntro l. - Page 29 TR Controls TR1, TR2, TR3, and TR4 a re fou r cont rol s with the sam e function, whic h ca n be use d to qui ckl y ad just function pa rameters . T R1 i s de fa ul t a ssi gne d to t he Ste e ring Trim funct io n, wh i l e th e othe r t hre e co ntrol s are in an una ssigned state .
-
Page 30: Mixes
FS-G11P Digital Proportional Radio Control System 6.14 Mixes You ca n set up to 4 di ffe re nt fu nct io na l mixe s, which are respecti vely [4WS], [Tra ck Mi x], [Dri ve M ix], [Brake Mix ] and [P rog rammi ng Mi x 1 -8 ]. - Page 31 Track Mix This fun cti on is a ppl i cabl e to mode l s su ch as tracke d veh ic les and tanks , and a ll ows o ne tri gge r or ste e ring wheel to cont ro l t h e l e ft an d rig ht tra cks to move for wa rd o r steer i ng di ffe re ntl y at th e sa me time .
- Page 32 FS-G11P Digital Proportional Radio Control System Setup: 1. Select [Mixes]>[Drive Mix]; 2. Select [USE]>[ON]; 3. Select [CH], select the channel as needed; ・ Each channel can only be assigned one mixing function. It is not allowed to conflict with other Func Assign channel. When the selected channel is assigned with other mixing functions, the system will give a pop-up window reminder. 4. Select [Rate], change the rate as needed (Press and hold to accelerate the adjustment); 5. Select [Mode], select the corresponding mode as needed. Brake Mix This fun ct ion has two sets of bra ke mixi n g con trols, to use mult iple se r vo s to co ntrol bra kes;...
- Page 33 Setup: 1. Select [Mixes]>[Brake Mix1] or [[Brake Mix2]; 2. Select [USE]>[ON]; 3. Select [CH], select the channel as needed; • Each channel can only be assigned one mixing function. It is not allowed to conflict with other Func Assign channel. When the selected channel is assigned with other mixing functions, the system will give a pop-up window reminder. 4. Select [Rate], change the rate as needed (Press and hold to accelerate the adjustment); 5. Select [ABS set]>[ON] or [OFF]。 • Refer to [6.7 ABS] for function setup. Programming Mix1-8 The M ixing fun cti o n can be u sed to set the mix-control relations hip betwee n ch an ne ls, co nta ining a total of 8 group s o f mi xing re lat i onsh ips.
-
Page 34: Timers
FS-G11P Digital Proportional Radio Control System 6.15 Timers This fun ct ion can set wi th a var iety o f t im ers, to generally calculate the total model run time, competition spec ific t ime s pent , o r tra nsmi tter run time , etc. - Page 35 Lap Timers Keep trac k t ime fo r each i ndi vidu al la p. Once triggered the "Start" icon will become the "Lap" icon. The system immediately enters the timing for the next lap, with the timer providing a voice prompt for the last lap's lap number. The timer interface pauses for 3 seconds and displays the duration of the last lap's timing.
-
Page 36: Sensor
Taking the FS-R11P receiver binding with the FS-G11P transmitter as an example, the sensor is connected to the SENS connector of the FS-R11P. If multiple sensors are connected simultaneously, the next sensor can be connected to the IN connector of the previous sensor. - Page 37 Speed sensor (FS-CPD01, FS-CPD02) The speed sensor is applied to test the speed of the motor. • "Motor speed" indicates that the sensor is testing the motor speed; "0rpm" is the speed measurement value. Sensor Magnetic induction speed sensor (FS-CPD01) 1. Connect the FS-CPD01 sensor to the receiver or other sensors connected to Wheel magnet...
- Page 38 FS-G11P Digital Proportional Radio Control System Sensors Set Used for selecti ng se nso rs, settin g u p alarms, and defin ing bot h l ow a nd hi gh al arm val ue s. [Ala rm]: Set wheth e r th e se nso r al arm i s en ab le d , wit h the default bein g o f f.
- Page 39 BVD Voltage Calibration There may be a voltage difference between the voltage detected by the receiver and the actual voltage of the battery. Use this function to set a calibration coefficient for the receiver to make the voltage displayed on the interface is equal to the battery voltage, namely, the sum of the detection voltage and the calibration coefficient is equal to the voltage displayed on the interface.
- Page 40 FS-G11P Digital Proportional Radio Control System Altitude Zero Set Reset t he alt itu de s ensor data . [Altitude Sen sor ]: Se l ect t he a lti tu de se nsor that ne e d s to be zero ed.If mu l ti pl e spe e d sen so rs a re con ne cte d , the default dis pl ay i s [No ne ].
-
Page 41: Model
6.17 Model Used to s et mode l -rel ate d fu ncti on s. Select Model Used for selecti ng and swi tch in g mode ls. The FS -G1 1 P can store up to 4 0 mo de l s. After selecting, then select a model from the list. -
Page 42: Rx Set
FS-G11P Digital Proportional Radio Control System 6.18 RX SET T he RX SET s uppo rt mu lti pl e fun ct io ns for setting up the re ce iv ing s y ste m. Th e y are [ Fail safe] , [Bind Set], [i-B US Set], a nd [ESC S et ]. -
Page 43: I-Bus Set
6.18.3 i-BUS Set This function is used to set up the i-BUS expansion module. The i-BUS function is mainly used for servo expansion. If a cable is too short or the number of servos exceeds the outputs for the receiver, the i-BUS serial bus receiver provides a convenient option for expansion. -
Page 44: Esc Set
FS-G11P Digital Proportional Radio Control System 6.18.4 ESC Set Used to set the ESC parameters of the 2-in-1 receiver. This function only becomes active when [RF Standard] is set to [ANT 2 Way]. You can set [Mode], [Bat Type] and [Brake Force]. -
Page 45: System
6.19 System Used to set the system parameters. 6.19.1 set up Language You can select [English] and [ 简体中文 ]. Setup: 1. Select [Language]>[English] or [ 简体中文 ]； 2. Then short press the Middle button to save the settings. Bat Type You can set the battery type for the transmitter's power supply， there are [18650]、[2S LiPo] and [Other]. - Page 46 FS-G11P Digital Proportional Radio Control System Backlight Used to set the backlight of the transmitter. The adjustment range is 10%~100%. Note: Turning the brightness up will use more power and as such, the longer the Backlight timeout, the more power consumption, the shorter the battery using time.
- Page 47 Idle alarm Set whether to enable idle alarm reminders and the alarm time. You can select [3m], [5m], [10m], [20m], and [Close]. The default setting is [3m]. Setup: 1. Select [Idle alarm]; 2. Select the corresponding Idle alarm time; 3. Then short press the Middle button to save the settings. Auto Off Set whether to enable Auto Off function and the Auto Off time. Once this function is activated, if there is no operation on the transmitter and no two-way communication with the receiver within the set time, the transmitter will automatically shut down.
- Page 48 FS-G11P Digital Proportional Radio Control System Home 1 Refer to [5. System Interface ] for function setup. Home 2 Refer to [5. System Interface] for function setup. Up Light You can set whether to turn off upper ambient lights, indicate battery level, as well as set the colors and brightness levels of the upper ambient lights.
-
Page 49: Stick Calibration
Sound Set the volume level and type of the speaker sound. Volume level setting range: 0~100% You can set [SYS/ALM], [System], [Alarm] and [Close]. The default setting is [SYS/ALM]. When the sound type is set to [Close], the sound icon will not be displayed in the function status area of the main interface. -
Page 50: Failsafe Tips
FS-G11P Digital Proportional Radio Control System 6.19.3 Failsafe Tips Used to enable or disable the failsafe prompt window when the transmitter turns on. When failsafe for all channels are in [Not set] status, then a pop-up window will prompt that failsafe has not been set after the transmitter is turned on. -
Page 51: Factory Reset
YouTube and X(Twitter). Users can choose the corresponding QR code as needed and scan it to view the information. 6.19.7 About FS-G11P This function contains basic information such as product name, firmware version, version date, hardware and RF library version. -
Page 52: Svc
FS-G11P Digital Proportional Radio Control System 6.20 SVC The receivers configured with this function is FS-R7V. Assign K/SW controls to quickly enable/disable the function. The [ST Gain], [TH Gain] and [Priority] can be quickly adjusted by assigning VR/ TR controls. - Page 53 Priority Used to set the control ratio between steering wheel control and gyroscope in the steering, i.e., turning radius. In direction turning by using the steering wheel, the steering angle will be reduced due to the influence of gyroscope mixing. When the value is 0%, the mixing control is the strongest, that is, the turning radius is the largest.
-
Page 54: Beginner
FS-G11P Digital Proportional Radio Control System 6.21 Beginner The beginner mode is suitable for entry level players to improve the safety of operations by limiting the amount of throttle servo and steering servo. This is used to set whether the beginner mode is active. The function is disabled by default. -
Page 55: User Customization
7. User Customization The d e vice supports user-custom ized i nstal lations s uc h a s add in g a ha n dl e , i nsta l l in g a n SD card , replacing the trigger sprin g, and changing the ste er in g w he e l s pr i ng a s ne e de d. 7.1 Installation of handle Use a metric 2 mm h ex s c re wd r i ve r to Re move t he S D card s lot cover. -
Page 56: Installation Of Sd Card
FS-G11P Digital Proportional Radio Control System 7.2 Installation of SD Card Re move t he S D card s lot cover. Use a metric 2 mm h ex s c re wd r i ve r to remove the two s c re w s (HM3*12mm) t hat sec ure the SD ca rd s l ot cove r. -
Page 57: Trigger Spring Replacement
7.3 Trigger Spring Replacement Check the p os it io n s of t he 1 4 c l i p s , starti n g from t he e dge of t he h an d gri p, an d th en remove all th e c l i p s o n e by o n e a l o n g t he e d ge , re move t he w ho le gri p n atu rally. - Page 58 FS-G11P Digital Proportional Radio Control System Gently remove th e t ri g ge r F P C ca bl e, an d t he n re move t he t ri gger. Remove the upper trigger cover; Remove 4 screws(PWA 2.1*6mm);...
- Page 59 Spring Adjusting Block The upper end of the spring is detached first Adjust the screw(HB2*9mm) with a metric 1.5mm hexagonal screwdriver and adjust Lift the upper end of the spring, and finally the spring adjusting block to the very the spring is removed; bottom;...
- Page 60 FS-G11P Digital Proportional Radio Control System Complete the trigger spring replacement.
-
Page 61: Steering Wheel Spring Replacement
7.4 Steering Wheel Spring Replacement Lift the spring hook Remove the screws(HM3*12mm) with a metric 2mm hex screwdriver, and then gently remove th e ste e r i n g w h ee l . Lift the spring hook； FPC wire detached D: Remove a screw(HM3*12mm) with the metric 2mm hex screwdriver, and then... - Page 62 FS-G11P Digital Proportional Radio Control System Connect the FPC wire Install the steering wheel module, the installation direction and steps are the reverse of the disassembly steps 3; Install the steering wheel module onto the transmitter; the installation direction and steps are the reverse of the disassembly steps 1.
-
Page 63: Specifications
T h i s c h apter i n cludes s pe ci fi cat io n s for FS - G1 1 P tra n s mi tter an d FS - R 1 1 P rece i ver . 8.1 Transmitter Specifications Product Model FS-G11P Compatible Receiver FS-R11P and other receivers with ANT protocol... -
Page 64: Receiver Specifications
FS-G11P Digital Proportional Radio Control System 8.2 Receiver Specifications Product Model FS-R11P Compatible Transmitter FS-G11P and other transmitters with ANT protocol Compatible RC Model Cars or boats Number of Channels 2.4GHz ISM Maximum Power < 20dBm (e.i.r.p.) （EU） RF Protocol... -
Page 65: Package Contents
9. Package Contents Number Name Quantity FS-G11P transmitter FS-R11P receivers Quick Start Guide Small Hand Grip Large Hand Grip Type-C Cable Machine Screws Handle Certificate Of Conformity High-Elasticity Spring Low-Elasticity Spring... -
Page 66: Certification
FS-G11P Digital Proportional Radio Control System 10. Certification 10.1 EU DoC Declaration Hereby, [ShenZhen FLYSKY Technology Co., Ltd.] declares that the radio equipment type [FS-G11P] is in compliance with Directive 2014/53/EU. The full text of the EU DoC is available at the following internet address: www.flyskytech.com/info_ detail/10.htm 10.2 CE SAR statement This equipment complies with Directive 2014/53/EU radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by European Union market(France). These requirements set a SAR limit of 2W/kg averaged over ten gram of tissue. The highest SAR value 0.112W/kg reported under this standard during product certification for use when properly worn on the limbs. 10.3 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference... -
Page 67: Fcc Sar
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. 10.4 FCC SAR For body-worn operation, the device has been tested and meets the FCC RF exposure, the maximum sar value is 0.246W/Kg at 0mm 10.5 Environmentally Friendly Disposal Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to these collecting points or to similar collection points. With this little personal effort, you contribute to recycle valuable raw materials and the treatment of toxic substances. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS CAUTION - replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); - disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; - leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; and - a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Figures and illustrations in this manual are provided for reference only and may differ from actual product appearance. Product design and specificatiions may be changed without notice. - Page 68 Copyright ©2024 Flysky Technology Co., Ltd. Release date: 2024-12-20 FCC ID： 2A2UNG11P00...
