nvent CADDY CATHPS4 Instruction Sheet

INSTRUCTION SHEET


Fig. 1
Fig. 2
Fig. 5 Fig. 6
1
Notes:

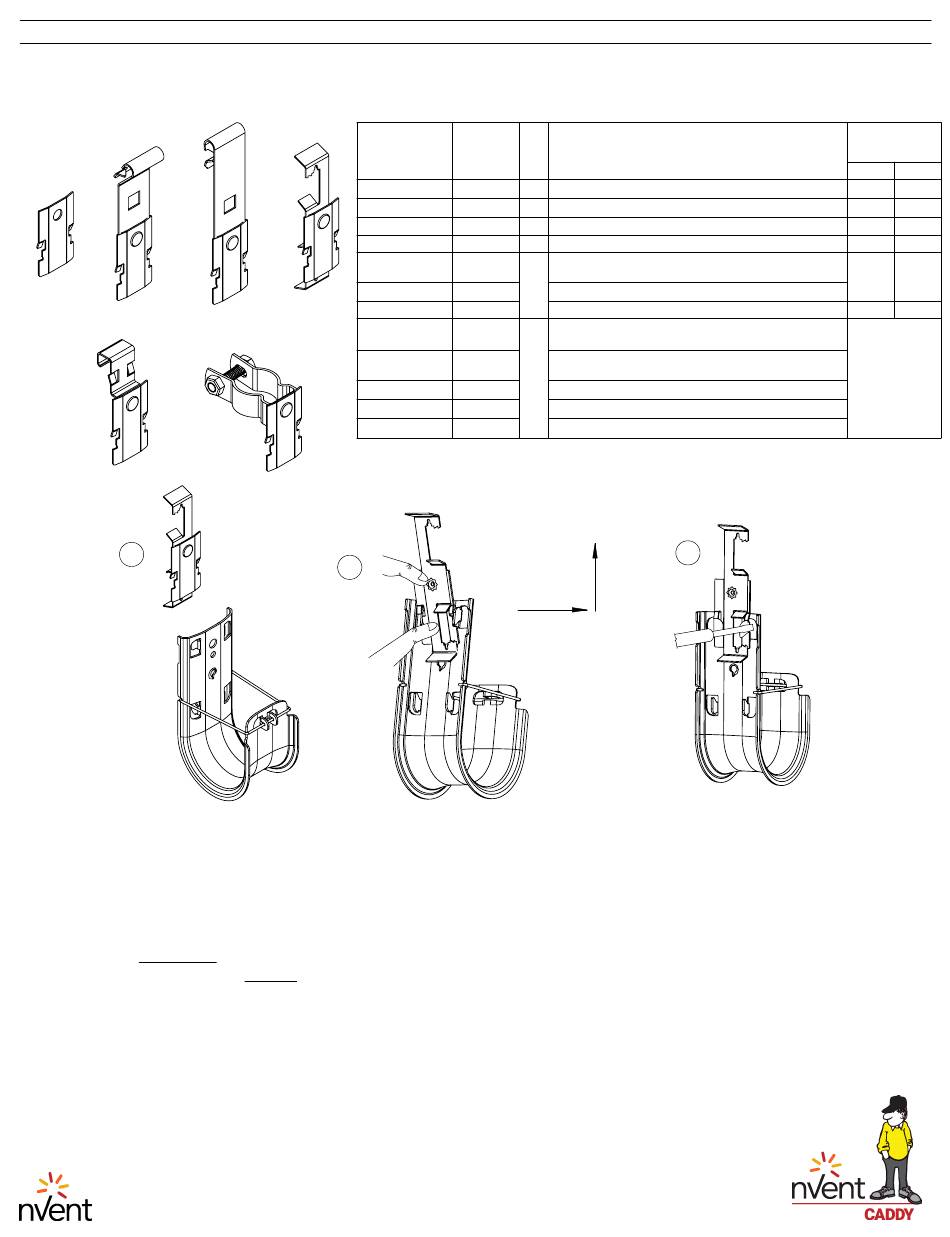

1. Attach bracket to J-Hook before attaching to channels, wires, rods, or flanges.
2. Align bracket with the tabs on the J-Hook using both hands. In the center of the bracket, below the tabs, press
with one thumb firmly forward and upward. At the same time using your other hand, grab the bracket above
the top of the J-Hook and move it forward and backward until the bracket moves into final position on the back
of the J-Hook.
3. Bend the two tabs on the J-Hook inward.
WARNING:
1. nVent products shall be installed and used only as indicated in nVent product instruction sheets and training materials. Instruction sheets are available at
www.nVent.com and from your nVent customer service representative.
2. nVent products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely follow nVent's instructions and warnings may cause product malfunction, property
damage, serious bodily injury and/or death, and void your warranty.
5. Products that are manufactured using spring steel components shall be used only in a non-corrosive indoor environment.
6. All pipe supports, hangers, intermediate components and structural attachments must ONLY be used as described herein and are NEVER to be used for any
other purpose.
NOTE: All load ratings are for static conditions and do not account for dynamic loading such as wind, water or seismic loads, unless otherwise noted.
The customer is responsible for:
a. Conformance to all governing codes.
b. The integrity of structures to which the products are attached, including their capability of safely accepting the loads imposed, as evaluated by a qualified
engineer.
c. Using appropriate industry standard hardware as noted above.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are
owned by nVent or its global affiliates. All other trademarks are the property of their respective owners. nVent reserves the
right to change specifications without prior notice.
TECHNICAL SUPPORT:
www.nVent.com
Part Number
CATHPS4*
CATHPAF14*
CATHPVF14*
CATHPESC*
CATHP4Z34*,** 181084*,**
CATHP6Z34*,** 181085*,**
Fig. 4
CATHP8Z34*,**
Fig. 3
CATHPCD0B
CATHPCD1B
CATHPCD2B*
CATHPCD2.5B* 181088*
CATHPCD3B*
*Contains Spring Steel component
**Assemble with CAT16HP (181061), CAT21HP (181188), CAT32HP (181062)
J-Hook only (Do not assemble with CAT48HP or CAT64HP (181064) J-Hook)
2
CFS375_F
Article Fig.
Number No.
181068* 1
181092* 2 1/16" [1.59] through 1/4" [6.35] Z-purlin
181081* 3 1/16" [1.59] through 1/4" [6.35] vertical flange
181082* 5
#12 SWG thru 1/4" [6.35] wire or plain rod, 1/4"
4
N/A
181085*
7/8" [22.23] to 1" [25.4] round or 3/4" [19.05]
181086*
6
181087*
N/A
F
1 OF 2
© 2007-2018 nVent All Rights Reserved
Description
0.282" [7.14] mounting hole
Support from strut
[6.35] threaded rod
3/8" [9.53] threaded or plain rod
1/2" [13] & 5/8" [16] threaded rod
3/4" [19.05] round pedestal
square pedestal
7/8" [22.23] square pedestal
1" [24.4] square pedestal
1-1/2" [38.1] round pedestal
F
3
Working Load
(3:1 Safety)
Lbs N
200 890
100 445
160 712
100 445
30 133
50 222
Use only for
flexible
conduit/cable
